CYLINDER HEAD/CYLINDER

KX100-A2 1990 UNITED KINGDOM AL AS

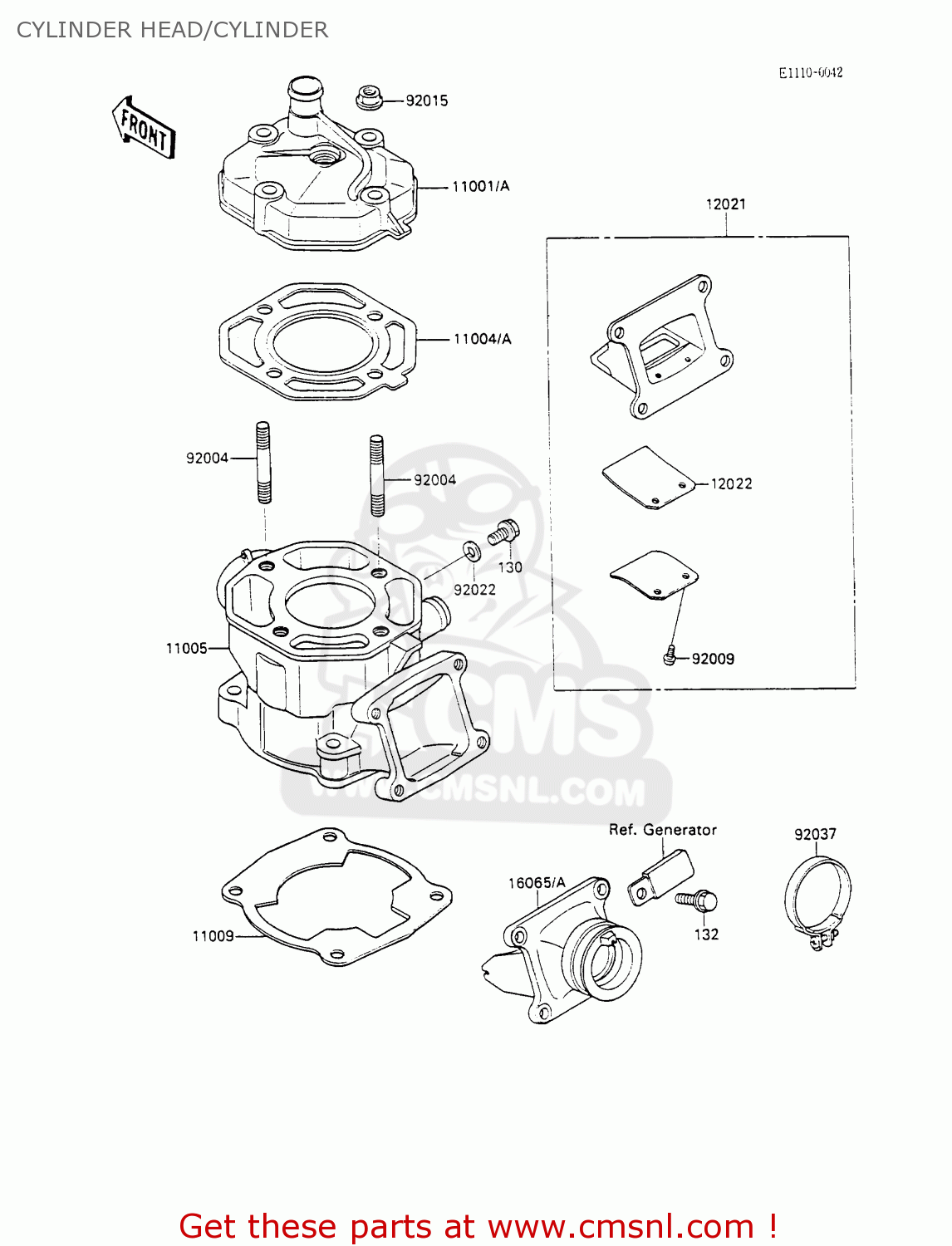

Cylinder head/cylinder diagram KX100-A2 1990 UNITED KINGDOM AL AS

prices are in EUR

ref

part #

description

quantity

130

130B0608
ref: 130

BOLT,FLANGED,6X8

€ 0.50

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

11001A

110011311
ref: 11001A

HEAD-CYLINDER

€ 119.00

11004A

110041200
ref: 11004A

GASKET-HEAD (NAS)

€ 13.00

11005

110051576
ref: 11005

CYLINDER-ENGINE

€ 421.00

11009

110091533
ref: 11009

GASKET,CYLINDER BASE (MCA)

€ 4.00

12021

120211075
ref: 12021

VALVE-ASSY-REED

€ 82.00

12022

120221054
ref: 12022

VALVE-REED,T=0.42

€ 13.00

16065A

160651212
ref: 16065A

HOLDER-CARBURETOR

€ 39.00

92004

920041009
ref: 92004

STUD, 8X35

€ 4.00

92009

920091014
ref: 92009

SCREW,REED VALVE

€ 2.00

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92037

920371843
ref: 92037

CLAMP

€ 5.50

CYLINDER HEAD/CYLINDER
