CRANKCASE
KX100-A1 1989 UNITED KINGDOM AL

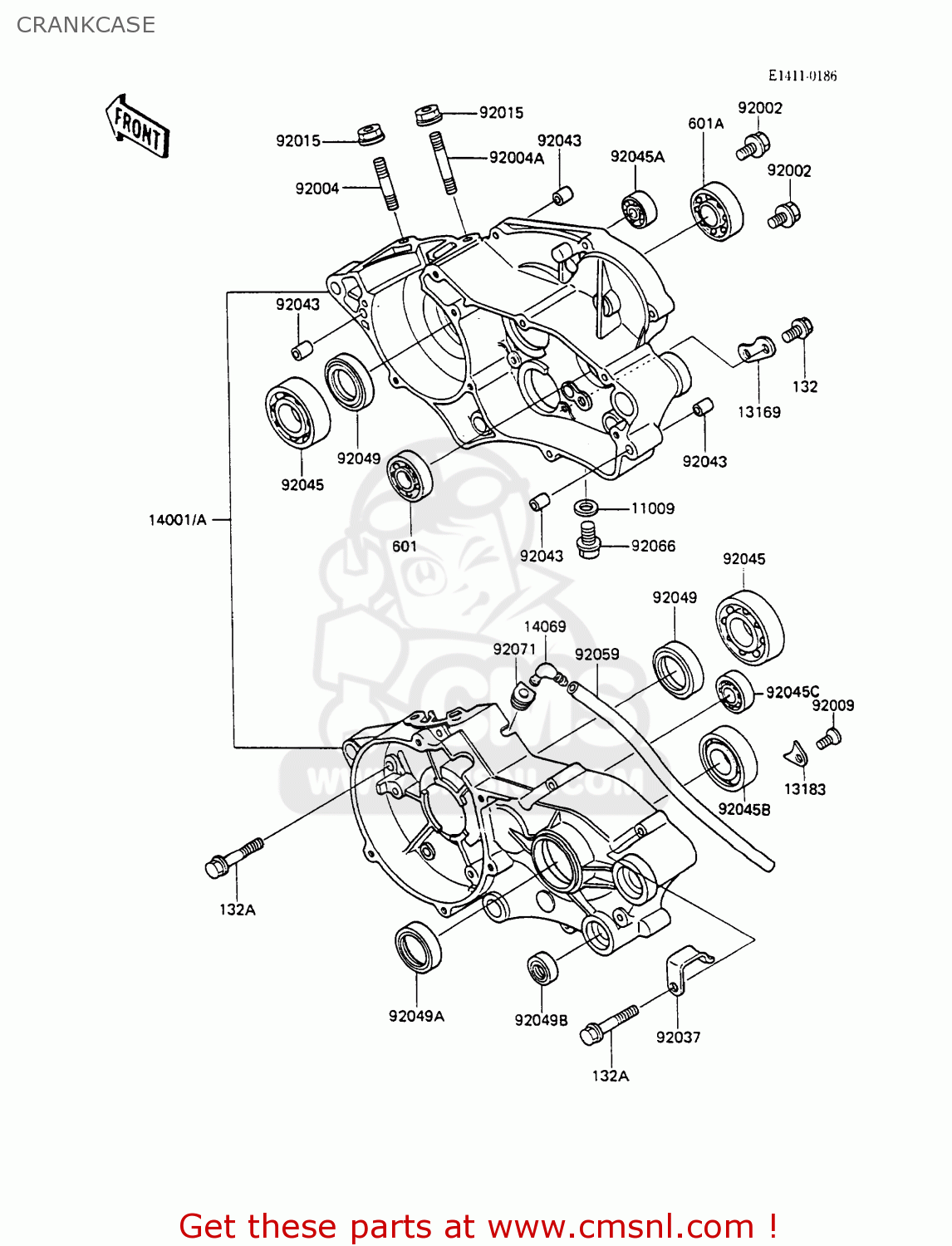

Crankcase diagram KX100-A1 1989 UNITED KINGDOM AL
CRANKCASE KX100-A1 1989 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0635
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
601
601A6002
ref: 601
BEARING-BALL,#6002
€ 9.50
601A
601A6203
ref: 601A
BEARING-BALL,#6203
€ 10.50
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
13169
13169012
ref: 13169
PLATE,CHANGE DRAM
€ 11.50
13183
131831182
ref: 13183
PLATE
€ 3.00
14001
140015254
ref: 14001
SET-CRANKCASE
€ 426.00
14069
14069002
ref: 14069
BREATHER
€ 17.50
92002
920021659
ref: 92002
BOLT
€ 3.00
92004
920041008
ref: 92004
STUD, 8X25
€ 3.50
92004A
920041009
ref: 92004A
STUD, 8X35
€ 4.00
92009
920091563
ref: 92009
SCREW,6X10
€ 2.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92045
920451059
ref: 92045
BEARING-BALL,R-6304C3
€ 29.00
92045A
920451211
ref: 92045A
BEARING-BALL
€ 11.00
92045B
920451226
ref: 92045B
BEARING-BALL,6204
€ 25.00
92045C
920451235
ref: 92045C
BEARING-BALL,6001C3ML
€ 15.50
92049
920491188
ref: 92049
SEAL-OIL,SD20407GS
€ 12.00
92049A
920491292
ref: 92049A
SEAL-OIL,TC25375
€ 7.00
92049B
92051005A
ref: 92049B
OIL SEAL,TB13225.5
€ 5.50
92059
920591074
ref: 92059
TUBE,6X9X280
€ 9.00
92066
920661241
ref: 92066
PLUG
€ 4.00
92071
92071042
ref: 92071
GROMMET
€ 2.50
