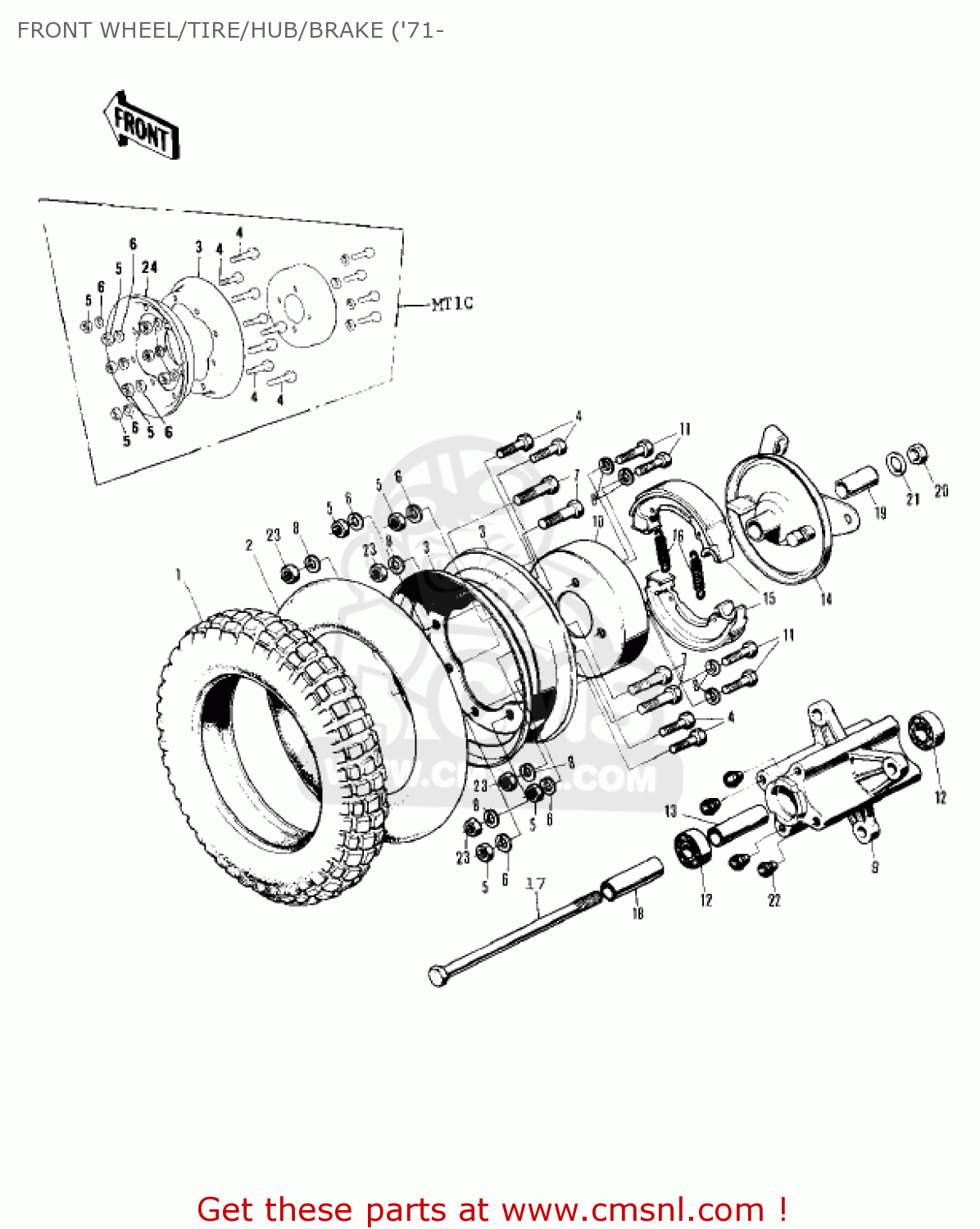

FRONT WHEEL/TIRE/HUB/BRAKE ('71-

ref

part #

description

quantity

1

41021015
ref: 1

TIRE,3.50-8 Y624

€ 0.00

2

41022037
ref: 2

TUBE,3.50-8

€ 21.00

3

41025047
ref: 3

RIM

€ 57.50

3

41025081
ref: 3
MT1C WITH VALVE HOLE

RIM,2.50-8

€ 27.00

4

114G0812
ref: 4

BOLT-SMALL,8X12

€ 2.00

4

113G1016A
ref: 4
MT1C

BOLT,HEX HEAD.10X16

€ 2.00

5

311B0800
ref: 5

NUT,8MM

€ 0.50

5

314B1000
ref: 5
MT1C

NUT,10MM

€ 0.50

6

461F0800
ref: 6

WASHER-SPRING,8MM

€ 0.50

6

461F1000
ref: 6
MT1C

WASHER-SPRING,10MM

€ 0.50

7

113G1025
ref: 7

BOLT-SMALL-FINE,10X25

€ 2.50

8

461F1000
ref: 8

WASHER-SPRING,10MM

€ 0.50

?

42005025
ref: ?
Includes items 8 - 1

DRUM ASSY-REAR BRAKE

€ 137.50

10

41054003
ref: 10

DRUM-BRAKE

€ 15.00

11

92001017
ref: 11

BOLT,HEX HEAD,10X28

€ 3.00

12

601B6201Z
ref: 12

BEARING-BALL,#6201ZC3

€ 11.50

13

42010020
ref: 13

SPACER-BEARING

€ 5.00

?

41035031
ref: ?
Includes items 14 -

PANEL ASSY-FRNT BRAKE

€ 25.50

?

410481010
ref: ?
Includes items 15 an

SHOE,BRAKE (MCA)

€ 20.00

16

41049009
ref: 16

SPRING-BRAKE SHOE

€ 3.00

17

41068033
ref: 17

AXLE-FRONT

€ 12.50

18

41069013
ref: 18

COLLAR-FRONT AXLE,R.H

€ 6.00

19

41069014
ref: 19

COLLAR-FRONT AXLE,L.H

€ 6.00

20

314B1200
ref: 20

NUT-HEX-FINE

€ 1.00

21

461F1200
ref: 21

WASHER-SPRING,12MM

€ 0.50

22

92074005
ref: 22

PLUG,8X2

€ 2.50

23

314B1000
ref: 23

NUT,10MM

€ 0.50

24

41025082
ref: 24
MT1C

RIM,2.50-8

€ 27.00
