RADIATOR
KMX125-B9 1998 UNITED KINGDOM FR FG

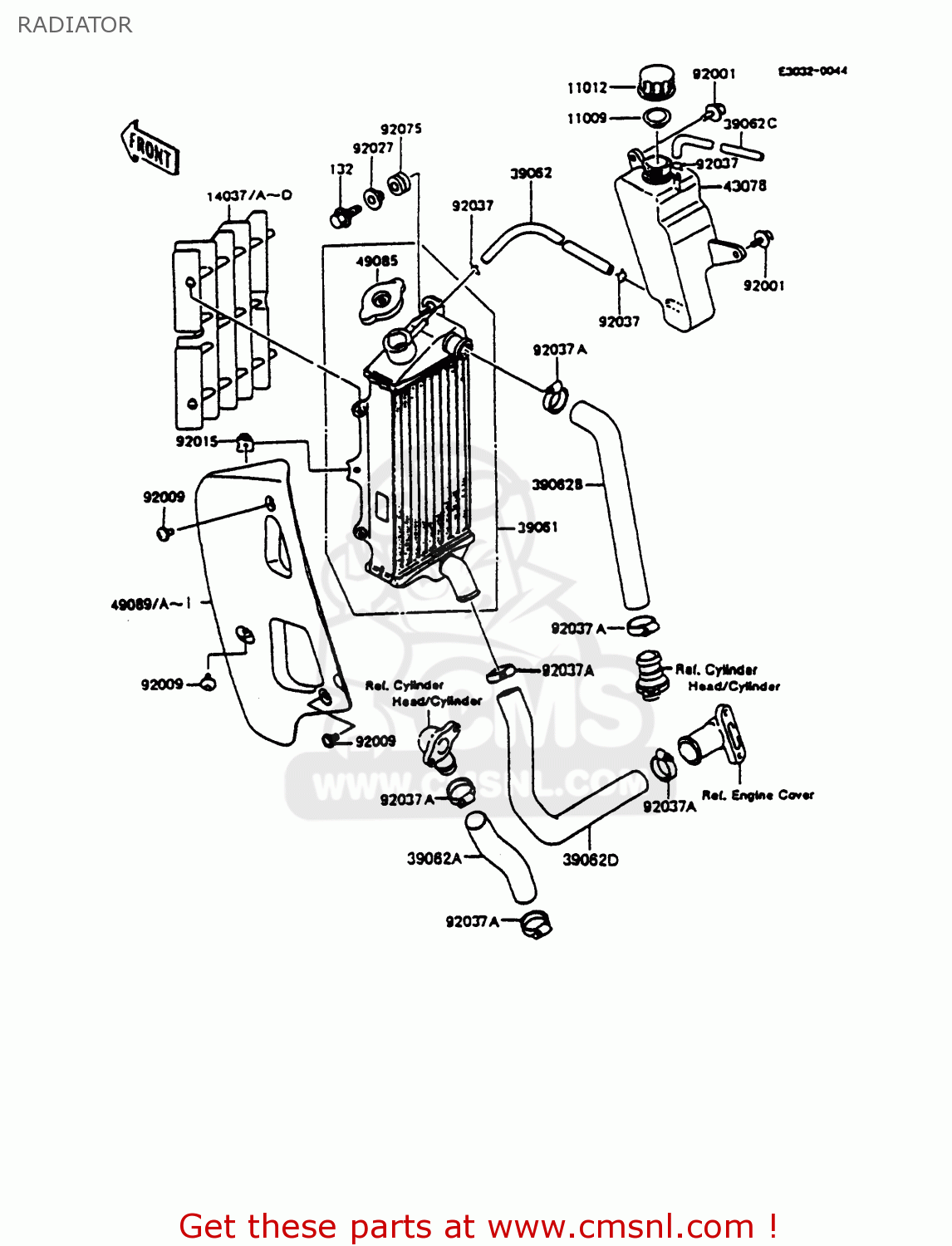

Radiator diagram KMX125-B9 1998 UNITED KINGDOM FR FG
RADIATOR KMX125-B9 1998 UNITED KINGDOM FR FG
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14037B
1403710776C
ref: 14037B
FGFR
SCREEN,RADIATOR,EBONY
€ 14.50
14037C
1403710776L
ref: 14037C
SCREEN,RADIATOR,F.RED
€ 13.50
14037D
1403710776W
ref: 14037D
FGUK
SCREEN,RADIATOR,L.GRE
€ 12.50
39061
390611090
ref: 39061
RADIATOR-ASSY
€ 296.50
39062
390621086
ref: 39062
HOSE-COOLING
€ 12.00
39062A
390621189
ref: 39062A
HOSE-COOLING,PUMP-CYL
€ 15.50
39062B
390621190
ref: 39062B
HOSE-COOLING,HEAD-RAD
€ 16.50
39062C
390621208
ref: 39062C
HOSE-COOLING
€ 25.00
39062D
390621275
ref: 39062D
HOSE-COOLING,RADIATOR
€ 24.00
43078
430781076
ref: 43078
RESERVOIR
€ 38.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
49089G
4908953036C
ref: 49089G
FGFR
SHROUD-ENGINE,LH,EBON
€ 77.00
49089H
4908953046W
ref: 49089H
FGUK
SHROUD-ENGINE,LH,L.GR
€ 73.00
49089I
4908953056L
ref: 49089I
SHROUD-ENGINE,LH,F.RE
€ 77.00
92001
920011763
ref: 92001
BOLT,W/SP,6X16
€ 3.00
92009
920091286
ref: 92009
SCREW,6X10
€ 2.50
92015
920151487
ref: 92015
NUT
€ 3.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371589
ref: 92037A
CLAMP,COOLING HOSE
€ 13.00
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
