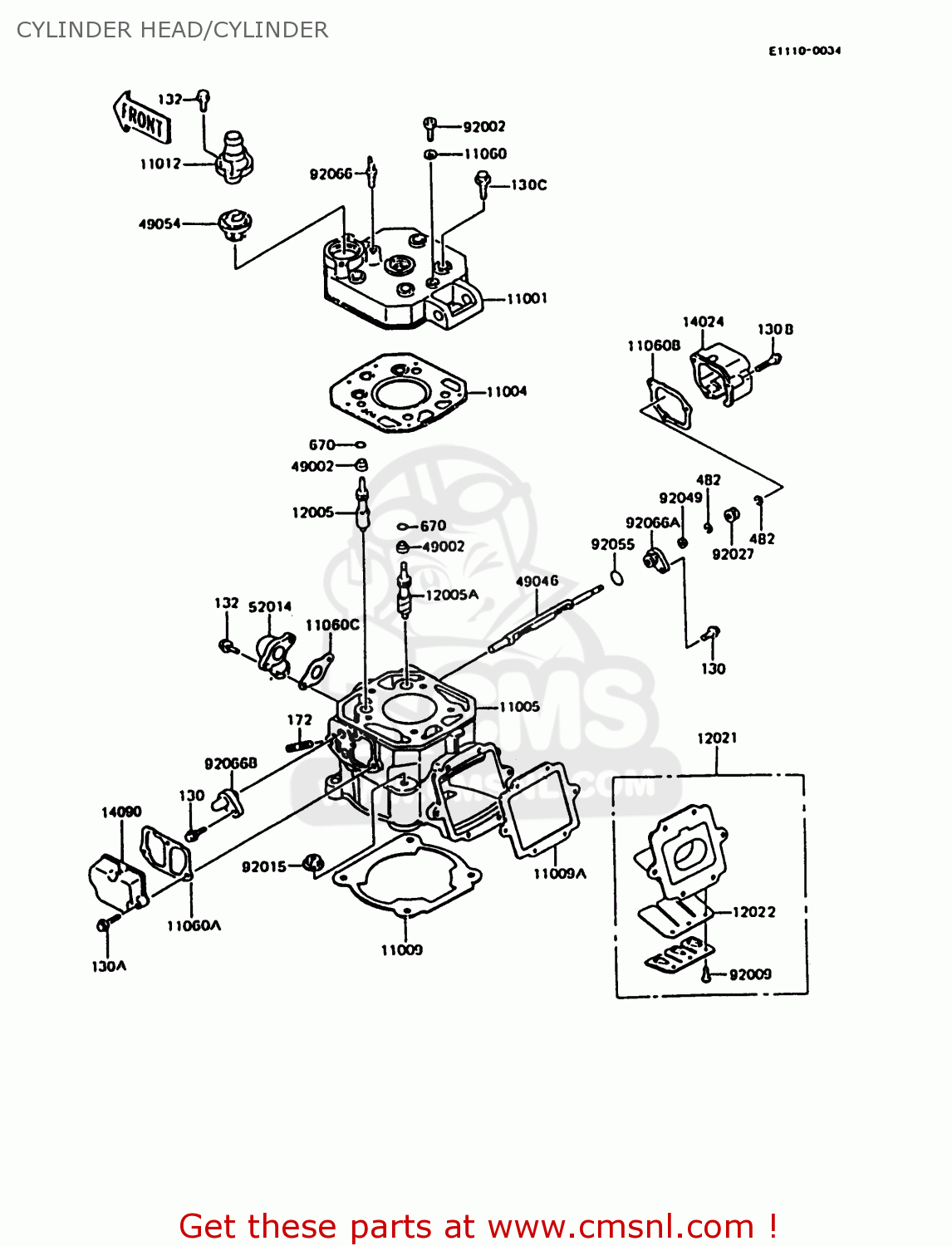

CYLINDER HEAD/CYLINDER

ref

part #

description

quantity

130

130G0516
ref: 130

BOLT-FLANGED

€ 0.50

130A

130J0525
ref: 130A

BOLT-FLANGED

€ 2.50

130B

130J0530
ref: 130B

BOLT-FLANGED

€ 2.50

130C

130S0850
ref: 130C

BOLT-FLANGED

€ 5.00

132

132J0616
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

172

172G0822
ref: 172

BOLT-STUD,8X22

€ 1.50

482

482J4000
ref: 482

CIRCLIP-TYPE-E,4MM

€ 0.50

670

670B1510
ref: 670

O RING,9.8X1.9

€ 2.50

11001

110011235
ref: 11001

HEAD-CYLINDER

€ 147.00

11004

110041151
ref: 11004

GASKET-HEAD (NAS)

€ 24.50

11005

110051497
ref: 11005

CYLINDER-ENGINE

€ 339.50

11009

110091880
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 11.00

11009A

110091941
ref: 11009A

GASKET,REED VALVE (NAS)

€ 6.00

11012

110121513
ref: 11012

CAP,THERMOSTAT

€ 18.50

11060

110601155
ref: 11060

GASKET,6X12X1.13 (NAS)

€ 3.00

11060A

110601156
ref: 11060A

GASKET,LH,RESONATOR (NAS)

€ 5.50

11060B

110601157
ref: 11060B

GASKET,RH,GOVERNOR (NAS)

€ 5.50

11060C

110601158
ref: 11060C

GASKET,ELBOW (NAS)

€ 3.50

12005

120051057
ref: 12005

VALVE-EXHAUST,LH

€ 42.00

12005A

120051060
ref: 12005A

VALVE-EXHAUST,RH

€ 42.00

12021

120211063
ref: 12021

VALVE-ASSY-REED

€ 124.50

12022

120221058
ref: 12022

VALVE-REED

€ 14.00

14024

140241650
ref: 14024

COVER,RH,GOVERNOR

€ 33.00

14090

140901506
ref: 14090

COVER,LH RESONATOR

€ 28.50

49002

490021075
ref: 49002

GUIDE-VALVE

€ 10.50

49046

490461056
ref: 49046

ROD-GOVERNOR

€ 71.00

49054

490541057
ref: 49054

THERMOSTAT

€ 46.00

52014

520141061
ref: 52014

ELBOW

€ 18.50

92002

920021222
ref: 92002

BOLT,6X10

€ 5.50

92009

920091014
ref: 92009

SCREW,REED VALVE

€ 2.00

92015

920151183
ref: 92015

NUT,FLANGED,8MM,BLACK

€ 1.00

92027

920271834
ref: 92027

COLLAR,GOVERNOR ROD

€ 11.50

92049

920491206
ref: 92049

SEAL-OIL,RSO-5.5 11 4

€ 7.50

92055

920551150
ref: 92055

O-RING, 10MM

€ 5.50

92066

920661118
ref: 92066

PLUG,SENSOR WATOR

€ 50.00

92066A

920661254
ref: 92066A

PLUG,GOVERNOR ROD,RH

€ 15.50

92066B

920661255
ref: 92066B

PLUG,GOVERNOR ROD,LH

€ 13.00
