FUEL TANK
KMX125-B2 1987 UNITED KINGDOM FR

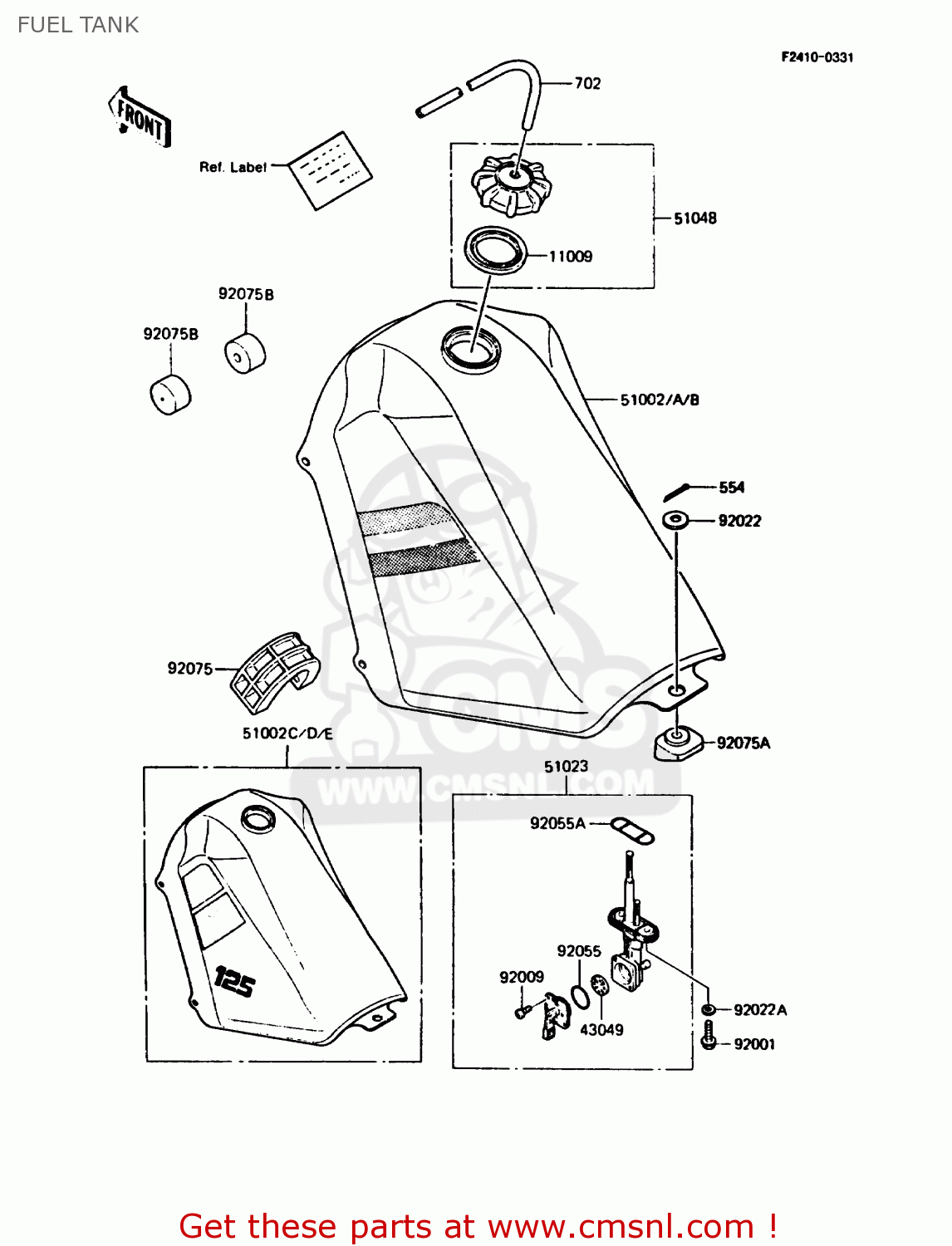

Fuel tank diagram KMX125-B2 1987 UNITED KINGDOM FR
FUEL TANK KMX125-B2 1987 UNITED KINGDOM FR
×
prices are in EUR
ref
part #
description
quantity
554
554A1000
ref: 554
PIN-SNAP,10MM
€ 1.00
702
702A05400
ref: 702
TUBE,RUBBER,5X400
€ 7.50
11009
51059006
ref: 11009
GASKET,FUEL TANK CAP (NAS)
€ 6.00
43049
430491017
ref: 43049
PACKING,FUEL TAP LEVE (NAS)
€ 5.00
51002C
510025285H1
ref: 51002C
TANK-COMP-FUEL,S.RED
€ 392.00
51002D
5100252867F
ref: 51002D
TANK-COMP-FUEL,L.GREE
€ 392.00
51002E
510025287F1
ref: 51002E
FR
TANK-COMP-FUEL,P.WHIT
€ 511.50
51023
510231127
ref: 51023
TAP-ASSY,FUEL
€ 70.50
51048
510481004
ref: 51048
CAP-ASSY-TANK,FUEL
€ 24.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92009
920091123
ref: 92009
SCREW,3X3
€ 1.00
92022
920221137
ref: 92022
WASHER,10.5X24X1.6
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
€ 2.50
92055
920551111
ref: 92055
RING-O,FUEL TAP LEVER
€ 3.50
92055A
920551112
ref: 92055A
RING-/,FUEL TAP PACKI
€ 3.00
92075
920751151
ref: 92075
DAMPER,FUEL TANK
€ 13.00
92075A
920751831
ref: 92075A
DAMPER
€ 6.50
92075B
920751934
ref: 92075B
DAMPER,FUEL TANK
€ 4.50
