CHASSIS ELECTRICAL EQUIPMENT

KMX125-A8 1995 EUROPE GR

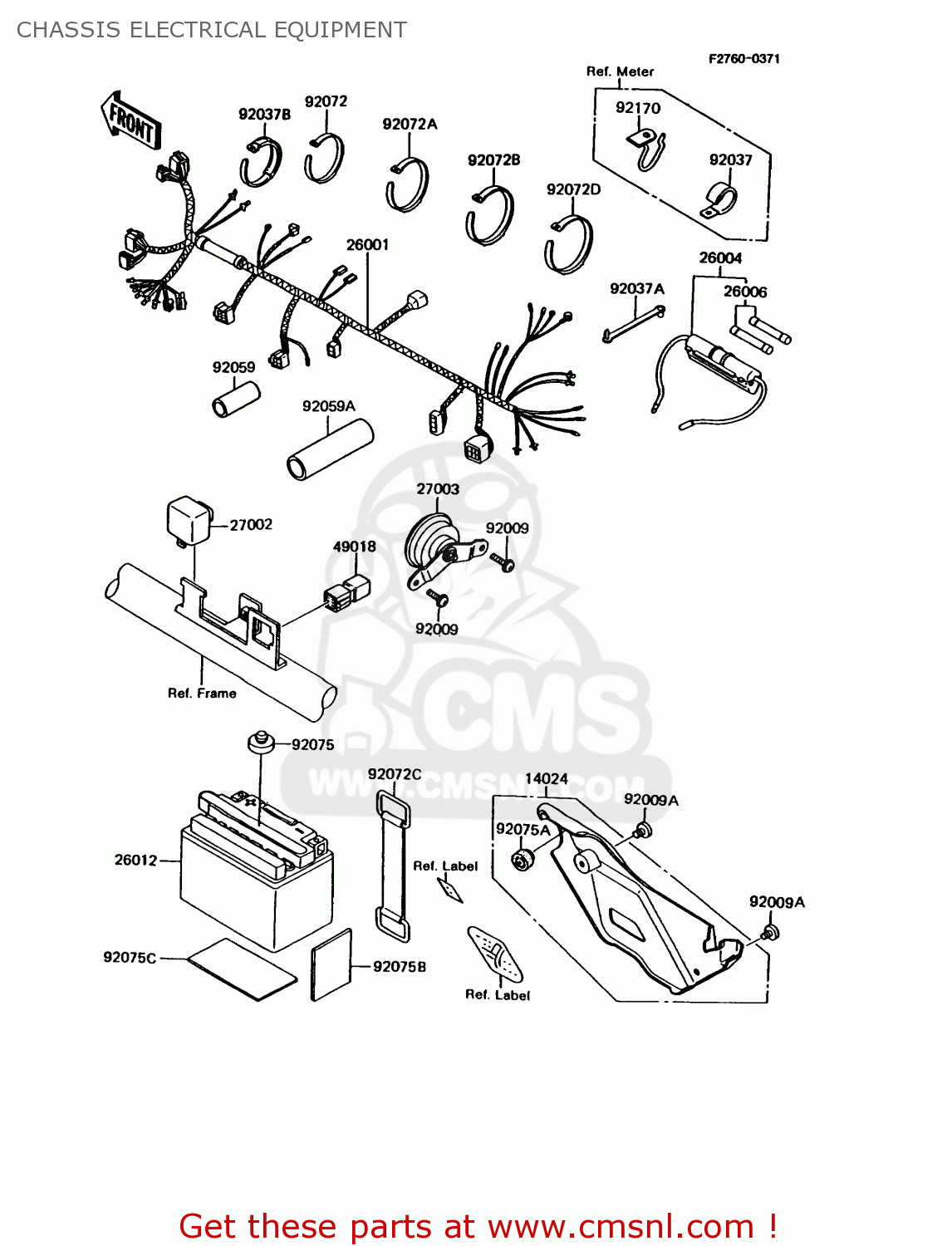

Chassis electrical equipment diagram KMX125-A8 1995 EUROPE GR

CHASSIS ELECTRICAL EQUIPMENT KMX125-A8 1995 EUROPE GR
CHASSIS ELECTRICAL EQUIPMENT KMX125-A8 1995 EUROPE GR
CHASSIS ELECTRICAL EQUIPMENT KMX125-A8 1995 EUROPE GR
prices are in EUR
ref
part #
description
quantity
14024
140241543
ref: 14024
COVER,BATTERY
140241543
€ 11.50
26001
260011925
ref: 26001
HARNESS,MAIN
€ 153.00
26004
260041074
ref: 26004
FUSE-ASSY
260041074
€ 13.00
26006
260061056
ref: 26006
FUSE,20A,L=30
260061056
€ 3.00
26012
260121198
ref: 26012
BATTERY, 12V 4AH
€ 46.00
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27003
270031306
ref: 27003
HORN
270031306
€ 50.00
49018
490181052
ref: 49018
DIODE
490181052
€ 35.50
92009
920091286
ref: 92009
SCREW,6X10
920091286
€ 2.50
92009A
920091661
ref: 92009A
SCREW
920091661
€ 2.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037B
920371483
ref: 92037B
CLAMP,BAND,L=120
€ 8.50
92059
920591799
ref: 92059
TUBE,8X9X38
920591799
€ 2.00
92059A
920591878
ref: 92059A
TUBE,11X12X90
920591878
€ 2.50
92072
92072030
ref: 92072
BAND,SHORT
92072030
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
92072031
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
92072056
€ 3.00
92072C
92072071
ref: 92072C
BAND,BATTERY
92072071
€ 6.50
92072D
920721197
ref: 92072D
BAND
920721197
€ 5.00
92075
92075005
ref: 92075
DAMPER
92075005
€ 2.50
92075A
920751598
ref: 92075A
DAMPER,SIDE COVER
920751598
€ 5.50
92075B
920751727
ref: 92075B
DAMPER
€ 2.50
92075C
920751864
ref: 92075C
DAMPER,BATTERY
920751864
€ 3.50
92170
921701062
ref: 92170
CLAMP,HARNESS
921701062
€ 6.50
