IGNITION SWITCH

KMX125-A6 1992 EUROPE

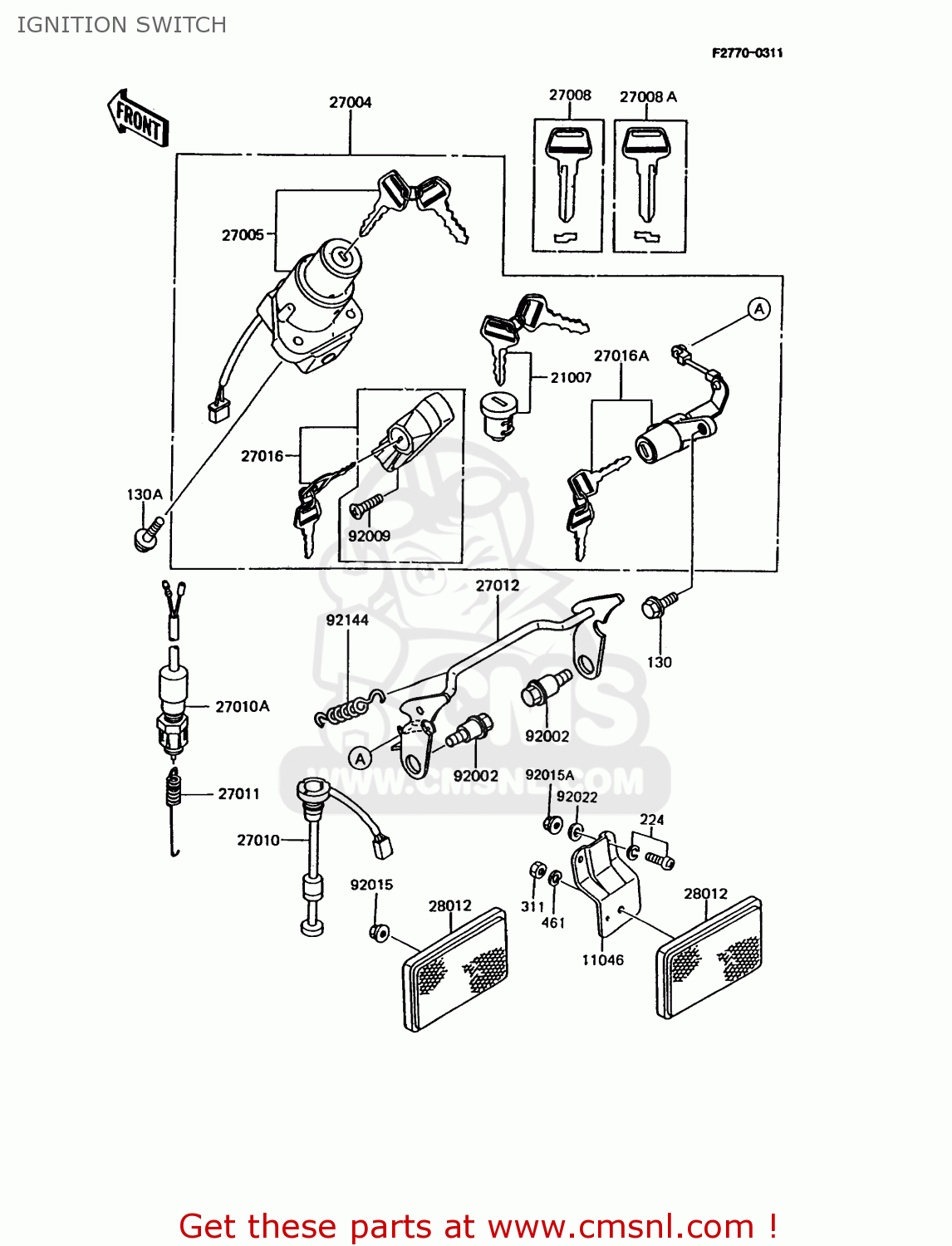

Ignition switch diagram KMX125-A6 1992 EUROPE

IGNITION SWITCH KMX125-A6 1992 EUROPE
IGNITION SWITCH KMX125-A6 1992 EUROPE
IGNITION SWITCH KMX125-A6 1992 EUROPE
prices are in EUR
ref
part #
description
quantity
130
130D0608
ref: 130
BOLT-FLANGED
€ 0.50
130A
130D0614
ref: 130A
BOLT-FLANGED,6X14
130D0614
€ 0.50
224
224C0614
ref: 224
SCREW-PAN-WP-CROS
224C0614
€ 2.50
311
311B0500
ref: 311
NUT-HEX
311B0500
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
11046
110461285
ref: 11046
BRACKET,REFLECTOR
110461285
€ 8.50
21007
210075022
ref: 21007
ROTOR,LOCK,TANK CAP
210075022
€ 50.50
27004
270045325
ref: 27004
SWITCH-ASSY
270045325
€ 190.00
27005
270051103
ref: 27005
SWITCH-ASSY-IGNITION
270051103
€ 264.00
27008
270081034
ref: 27008
KEY,BLANK
270081034
€ 13.00
27008A
270081035
ref: 27008A
KEY,BLANK
270081035
€ 12.50
27010
270101041
ref: 27010
SWITCH,OIL LEVEL
270101041
€ 43.50
27010A
270101215
ref: 27010A
SWITCH,BRAKE LAMP
270101215
€ 23.00
27011
27011021
ref: 27011
SPRING,BRAKE LAMP SW
27011021
€ 15.50
27012
270121389
ref: 27012
HOOK,SEAT
270121389
€ 20.50
27016
270165029
ref: 27016
LOCK ASSY,HELMET
270165029
€ 73.50
27016A
270165115
ref: 27016A
LOCK-ASSY,SEAT
270165115
€ 64.00
28012
280121054
ref: 28012
REFLECTOR-REFLEX,RR
280121054
€ 15.00
92002
920021596
ref: 92002
BOLT,*
920021596
€ 6.00
92009
920091547
ref: 92009
SCREW,5X18
920091547
€ 3.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
920221557
€ 1.00
92144
921441120
ref: 92144
SPRING,SEAT LOCK RETU
921441120
€ 4.00
