CHASSIS ELECTRICAL EQUIPMENT

KLX650C3 1995 USA CALIFORNIA CANADA

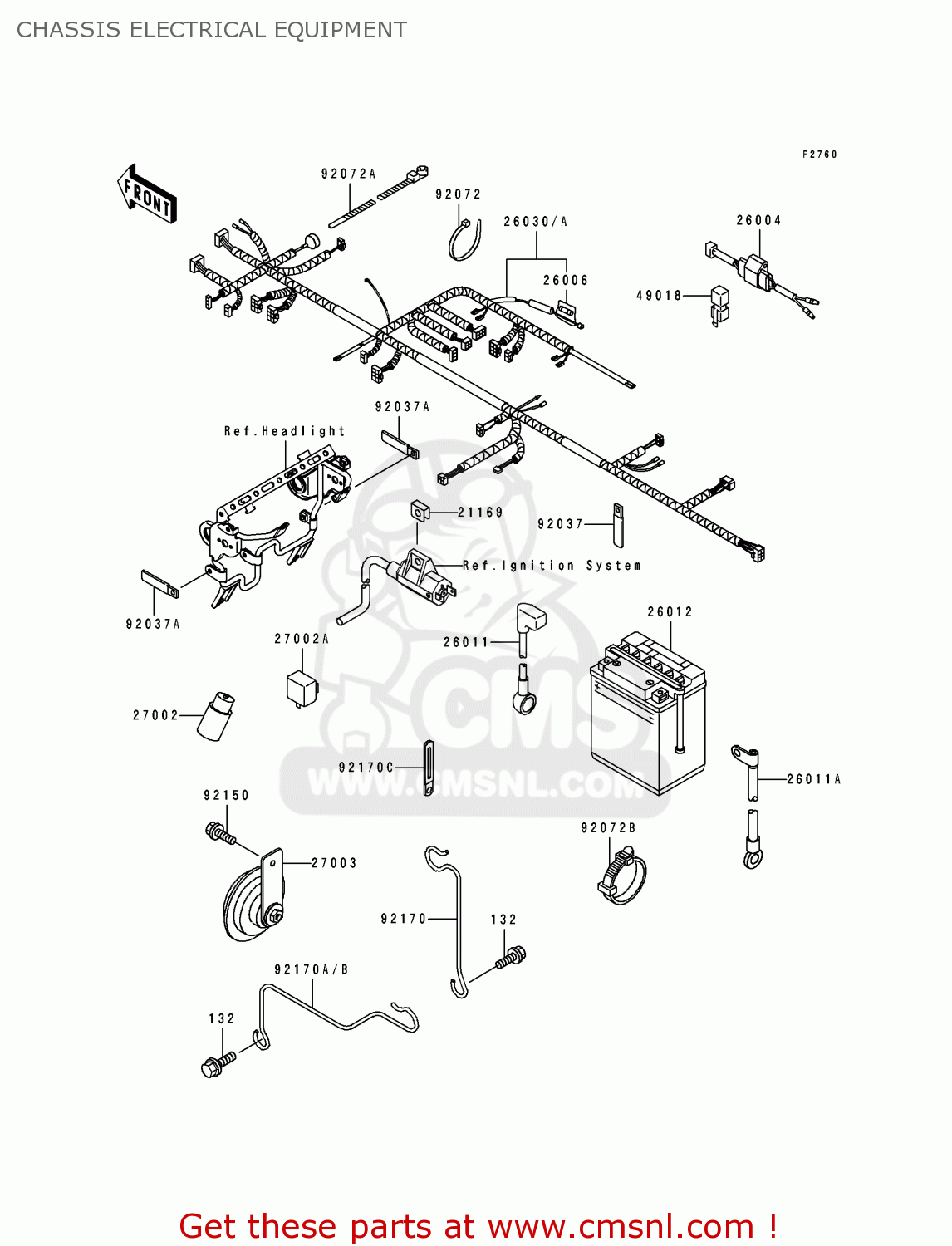

Chassis electrical equipment diagram KLX650C3 1995 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT KLX650C3 1995 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT KLX650C3 1995 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT KLX650C3 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
132G0612
€ 1.50
21169
211691066
ref: 21169
TERMINAL
€ 3.00
26004
260041089
ref: 26004
FUSE-ASSY
€ 29.00
26006
260061002
ref: 26006
FUSE,10A,L=30M/M
260061002
€ 3.00
26011
260111546
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 19.00
26011A
260111548
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 19.00
26012
260121282
ref: 26012
BATTERY,YTX9-BS,12V 8
€ 100.00
26030A
260301221
ref: 26030A
HARNESS,MAIN
€ 148.00
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27002A
270021053
ref: 27002A
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27003
270031288
ref: 27003
HORN
270031288
€ 62.00
49018
490181058
ref: 49018
DIODE
490181058
€ 27.50
92037
920371679
ref: 92037
CLAMP
920371679
€ 3.50
92037A
920371993
ref: 92037A
CLAMP
920371993
€ 3.50
92072
920721237
ref: 92072
BAND,L=250
920721237
€ 2.00
92072A
920721288
ref: 92072A
BAND,L=215
€ 6.00
92072B
920721293
ref: 92072B
BAND
920721293
€ 6.50
92150
921501340
ref: 92150
BOLT,6X14
921501340
€ 3.00
92170
921701359
ref: 92170
CLAMP,HARNESS
€ 7.00
92170B
921701428
ref: 92170B
CLAMP,HARNESS
€ 8.00
92170C
921701514
ref: 92170C
CLAMP
921701514
€ 2.50
