FOOTRESTS

KLX650A2 KLX650R 1994 EUROPE

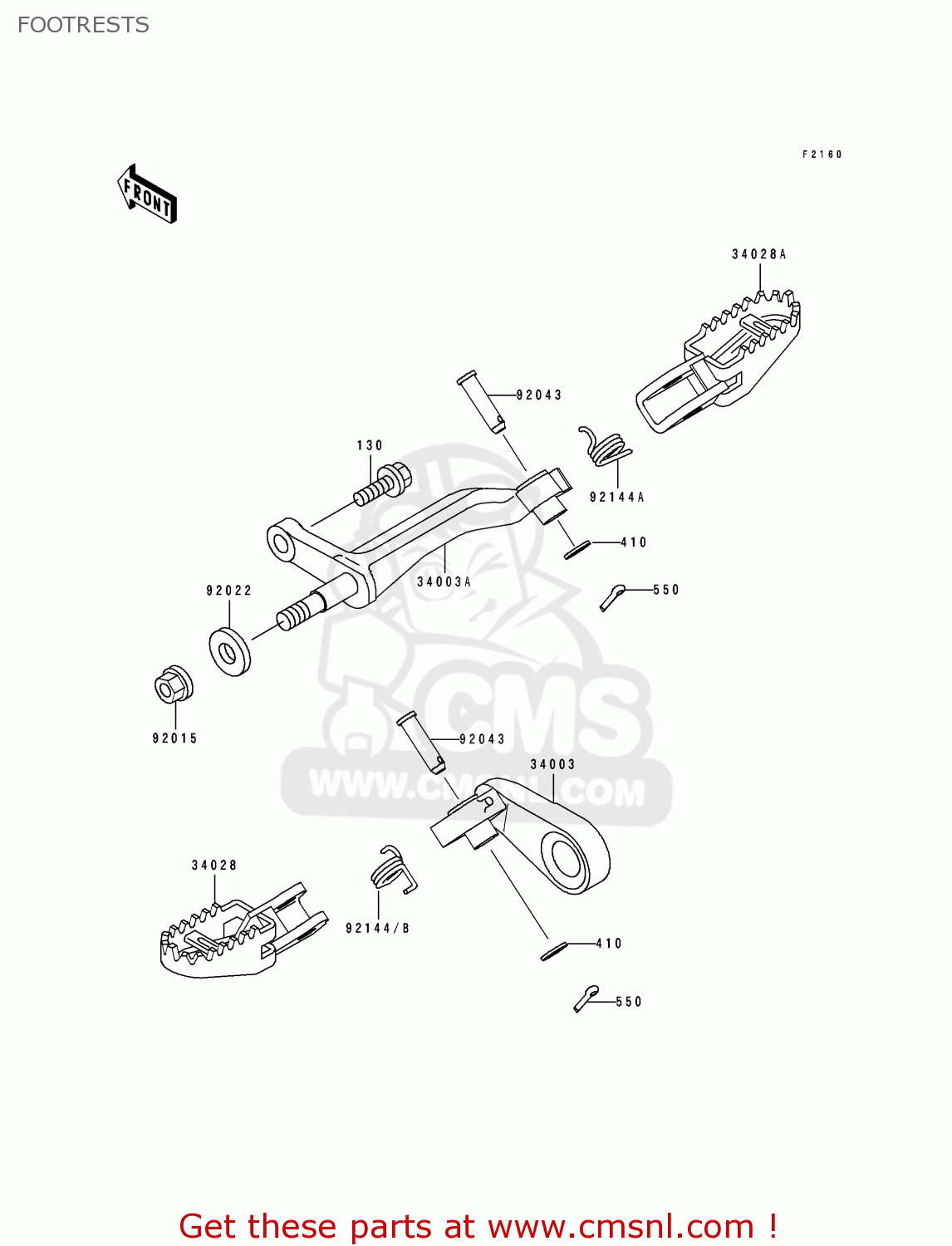

Footrests diagram KLX650A2 KLX650R 1994 EUROPE

prices are in EUR

ref

part #

description

quantity

130

130P1020
ref: 130

BOLT-FLANGED,10X20

€ 1.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

550

550D2515
ref: 550

PIN COTTER,295X15

€ 0.50

34003

340031372TY
ref: 34003

HOLDER-STEP,LH,VIOLET

€ 46.00

34003A

340031373TY
ref: 34003A

HOLDER-STEP,RH,VIOLET

€ 54.00

34028

340281361
ref: 34028

STEP,LH

€ 45.00

34028A

340281362
ref: 34028A

STEP,RH

€ 45.00

92015

920151502
ref: 92015

NUT,FLANGED,10MM

€ 7.00

92022

920221876
ref: 92022

WASHER,10.5X18X2.5

€ 3.00

92043

92043115
ref: 92043

PIN,FOOTREST BAR FIT

€ 6.50

92144A

921441685
ref: 92144A

SPRING,STEP RETURN,RH

€ 5.00

92144B

921441749
ref: 92144B

SPRING,STEP RETURN,LH

€ 3.50
