FRAME

KLX300A6F KLX300R 2006 USA CALIFORNIA CANADA

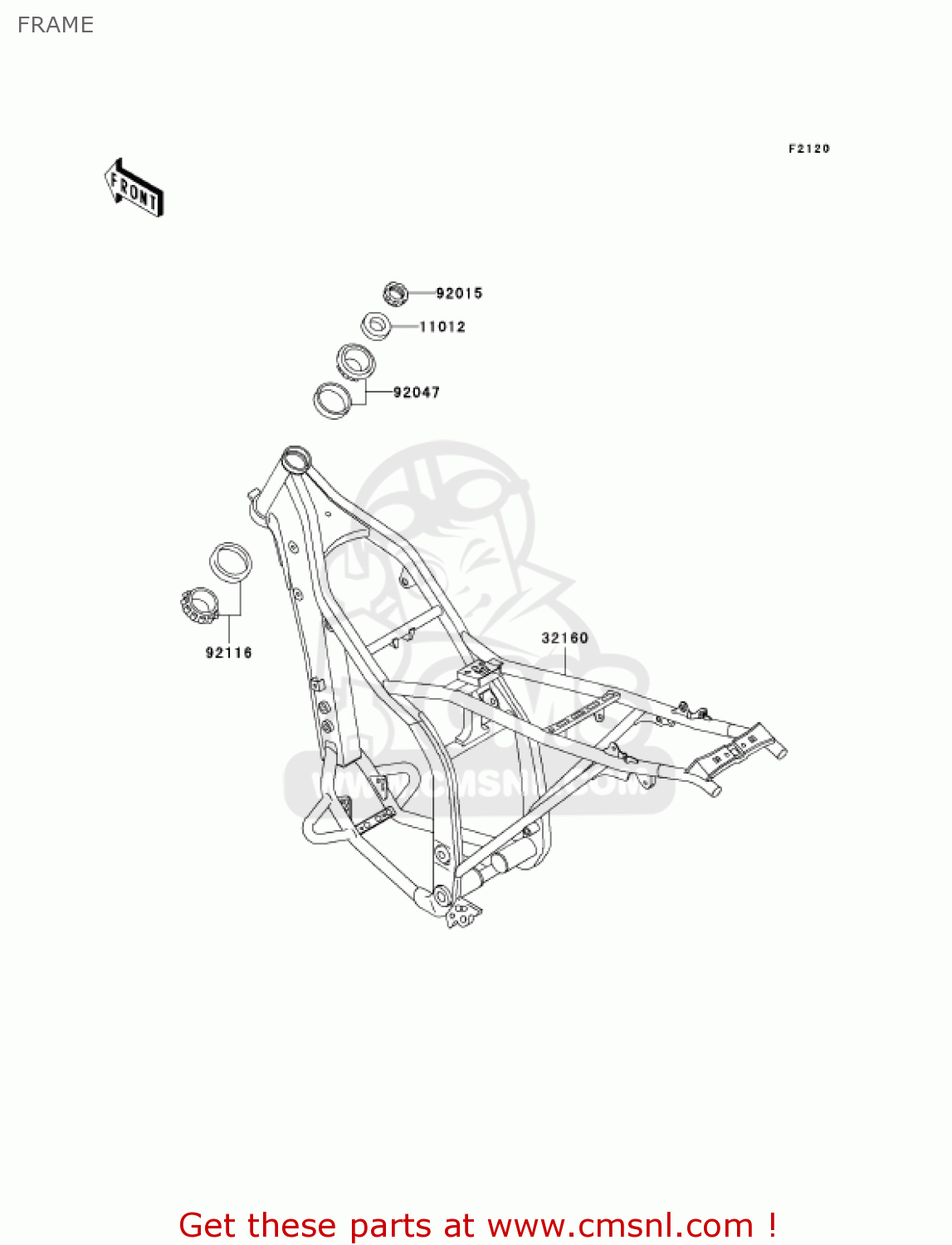

Frame diagram KLX300A6F KLX300R 2006 USA CALIFORNIA CANADA

FRAME KLX300A6F KLX300R 2006 USA CALIFORNIA CANADA

FRAME KLX300A6F KLX300R 2006 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11012

110121762
ref: 11012

CAP,STEERING STEM

€ 4.00

32160

321601757458
ref: 32160

FRAME-COMP,P.SILVER

€ 1,010.50

92015

920151546
ref: 92015

NUT,25MM,T=12

€ 14.50

92047

92047017
ref: 92047

CONE,STRNG,STEM

€ 49.50

92116

921161069
ref: 92116

BEARING-ROLLER

€ 69.50
