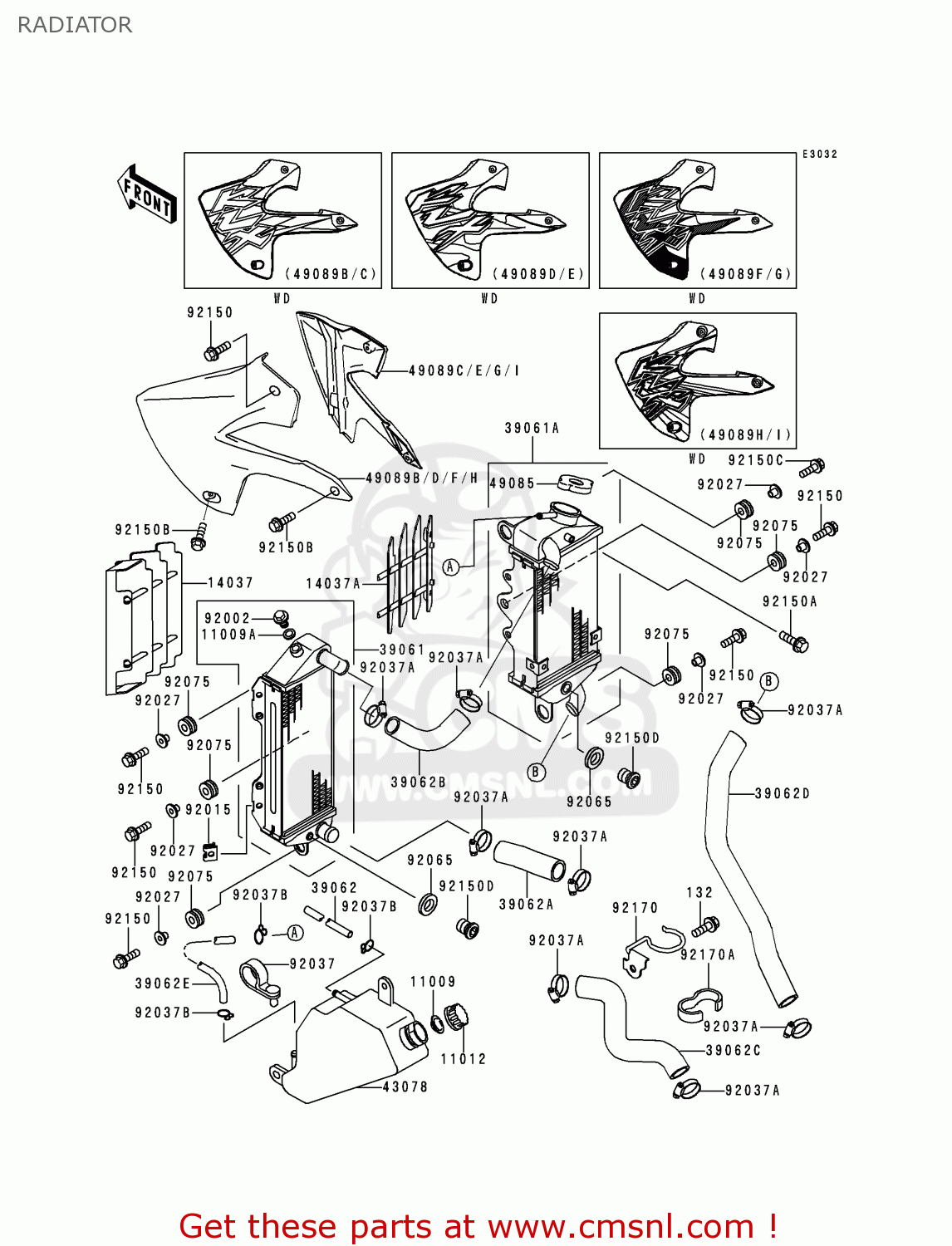

RADIATOR

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11009A

110091152
ref: 11009A

GASKET,DRAIN BOLT (NAS)

€ 4.50

11012

110121084
ref: 11012

CAP

€ 1.50

14037

140371099RZ
ref: 14037

SCREEN,WHITE

€ 15.50

14037A

140371121RZ
ref: 14037A

SCREEN,RH,WHITE

€ 17.50

39061

390611233
ref: 39061

RADIATOR-ASSY,LH

€ 593.00

39061A

390611234
ref: 39061A

RADIATOR-ASSY,RH

€ 614.00

39062

390621315
ref: 39062

HOSE-COOLING,5X9X500

€ 8.00

39062A

390621535
ref: 39062A

HOSE-COOLING,HEAD-RAD

€ 13.50

39062B

390621536
ref: 39062B

HOSE-COOLING,RADIATOR

€ 11.50

39062C

390621563
ref: 39062C

HOSE-COOLING,PUMP-CYL

€ 21.00

39062D

390621564
ref: 39062D

HOSE-COOLING,RADIATOR

€ 31.00

39062E

390621569
ref: 39062E

HOSE-COOLING,5X9X1080

€ 7.00

43078

430781140
ref: 43078

RESERVOIR

€ 32.50

49085

490851070
ref: 49085

CAP-ASSY-PRESSURE

€ 37.50

49089H

4908953436W
ref: 49089H

SHROUD-ENGINE,LH,L.GR

€ 104.50

49089I

4908953446W
ref: 49089I

SHROUD-ENGINE,RH,L.GR

€ 104.50

92002

920021682
ref: 92002

BOLT,RADIATOR DRAIN

€ 13.50

92015

920151487
ref: 92015

NUT

€ 3.00

92027

92027194
ref: 92027

COLLAR

€ 3.50

92037

920371163
ref: 92037

CLAMP,HARNESS,REAR

€ 4.50

92037A

920371589
ref: 92037A

CLAMP,COOLING HOSE

€ 13.00

92037B

920371712
ref: 92037B

CLAMP

€ 3.00

92065

92065058
ref: 92065

GASKET, 10,5X16X1 (NAS)

€ 2.50

92075

92075209
ref: 92075

DAMPER RUBBER

€ 3.00

92150

921501339
ref: 92150

BOLT,6X20

€ 2.50

92150A

921501340
ref: 92150A

BOLT,6X14

€ 3.00

92150B

921501435
ref: 92150B

BOLT

€ 2.50

92150C

921501507
ref: 92150C

BOLT

€ 3.00

92150D

921501867
ref: 92150D

BOLT 10 X 10

€ 3.50

92170

921701357
ref: 92170

CLAMP

€ 13.00

92170A

921701419
ref: 92170A

CLAMP

€ 3.00

132

132J0610
ref: 132

BOLT-FLANGED-SMALL,6X

€ 1.50
