ENGINE COVER(S)

KLX300A4 KLX300R 1999 USA CALIFORNIA CANADA

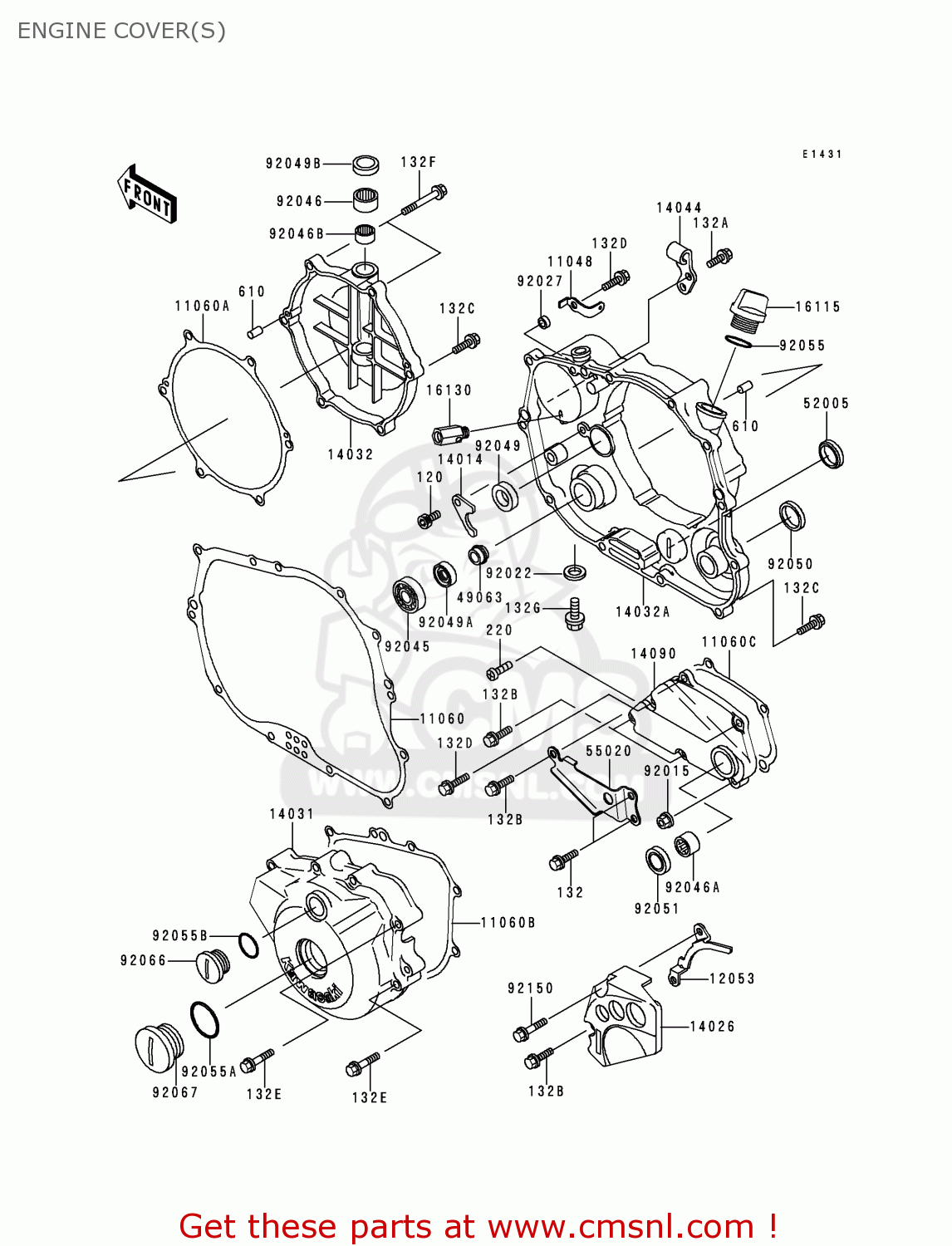

Engine cover(s) diagram KLX300A4 KLX300R 1999 USA CALIFORNIA CANADA

ENGINE COVER(S) KLX300A4 KLX300R 1999 USA CALIFORNIA CANADA
ENGINE COVER(S) KLX300A4 KLX300R 1999 USA CALIFORNIA CANADA
ENGINE COVER(S) KLX300A4 KLX300R 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120P0610
ref: 120
BOLT-SOCKET,6X10
120P0610
€ 1.00
132
132Y0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132Y0616
ref: 132A
BOLT-FLANGED-SMALL
132Y0616
€ 2.50
132B
132Y0620
ref: 132B
BOLT-FLANGED-SMALL
132Y0620
€ 2.50
11048
110481300
ref: 11048
BRACKET
110481300
€ 6.00
11060
110601324
ref: 11060
GASKET,CLUTCH COVER I (NAS)
110601324
€ 28.50
11060A
110601325
ref: 11060A
GASKET,CLUTCH COVER O (NAS)
110601325
€ 10.50
11060B
110601326
ref: 11060B
GASKET,GENERATOR COVE (NAS)
110601326
€ 13.50
11060C
110601327
ref: 11060C
GASKET,TRANSMISSION C (NAS)
110601327
€ 9.00
12053
120531337
ref: 12053
GUIDE-CHAIN
120531337
€ 9.00
14014
140141062
ref: 14014
PLATE-POSITION
€ 5.50
14026
140261186
ref: 14026
COVER-CHAIN
140261186
€ 19.50
14031
140311301
ref: 14031
COVER-GENERATOR
140311301
€ 161.50
14032
140321335
ref: 14032
COVER-CLUTCH,OUTER
140321335
€ 76.50
14032A
140321438
ref: 14032A
COVER-CLUTCH
€ 238.50
14044
140441078
ref: 14044
HOLDER-CABLE
€ 5.00
14090
140901285
ref: 14090
COVER,TRANSMISSION
€ 66.00
16115
161151053
ref: 16115
CAP-OIL FILLER
161151053
€ 12.50
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 28.50
49063
490631002
ref: 49063
SEAL-MECHANICAL,WATER
490631002
€ 17.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
55020
550201460
ref: 55020
GUARD,TRANSMISSION CO
550201460
€ 11.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92022
920221488
ref: 92022
WASHER,8.2X14X1
920221488
€ 3.00
92027
920271885
ref: 92027
COLLAR
920271885
€ 4.00
92045
920451246
ref: 92045
BEARING-BALL,6901
920451246
€ 29.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
920461010
€ 17.00
92046A
920461148
ref: 92046A
BEARING-NEEDLE,HK1312
920461148
€ 19.50
92046B
920461230
ref: 92046B
BEARING-NEEDLE
920461230
€ 15.50
92049
920491191
ref: 92049
SEAL-OIL
920491191
€ 16.00
92049A
920491228
ref: 92049A
SEAL-OIL,AC037AE0
920491228
€ 7.00
92049B
920491262
ref: 92049B
SEAL-OIL
920491262
€ 4.00
92050
92050078
ref: 92050
OIL SEAL
92050078
€ 5.50
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
92055012
ref: 92055
'O' RING 18MM
92055012
€ 1.00
92055A
92055091
ref: 92055A
0 RING
92055091
€ 4.00
92055B
920551146
ref: 92055B
RING-O
920551146
€ 5.50
92066
920661397
ref: 92066
PLUG
920661397
€ 10.00
92067
92067024
ref: 92067
PLUG,RELEASE
92067024
€ 7.50
92150
921501137
ref: 92150
BOLT,6X35
921501137
€ 3.50
132C
132Y0625
ref: 132C
BOLT-FLANGED-SMALL
€ 3.50
132D
132Y0630
ref: 132D
BOLT-FLANGED-SMALL
132Y0630
€ 2.50
132E
132Y0640
ref: 132E
BOLT-FLANGED-SMALL
132Y0640
€ 3.50
132F
132Y0670
ref: 132F
BOLT-FLANGED-SMALL
€ 3.00
132G
132Y0810
ref: 132G
BOLT-FLANGED-SMALL
132Y0810
€ 2.50
220
220X0616
ref: 220
SCREW-PAN-CROS
€ 2.00
610
610A0408
ref: 610
ROLLER,4X8
610A0408
€ 2.50
