FRONT FORK
KLX300A2 KLX300R 1997 USA CANADA

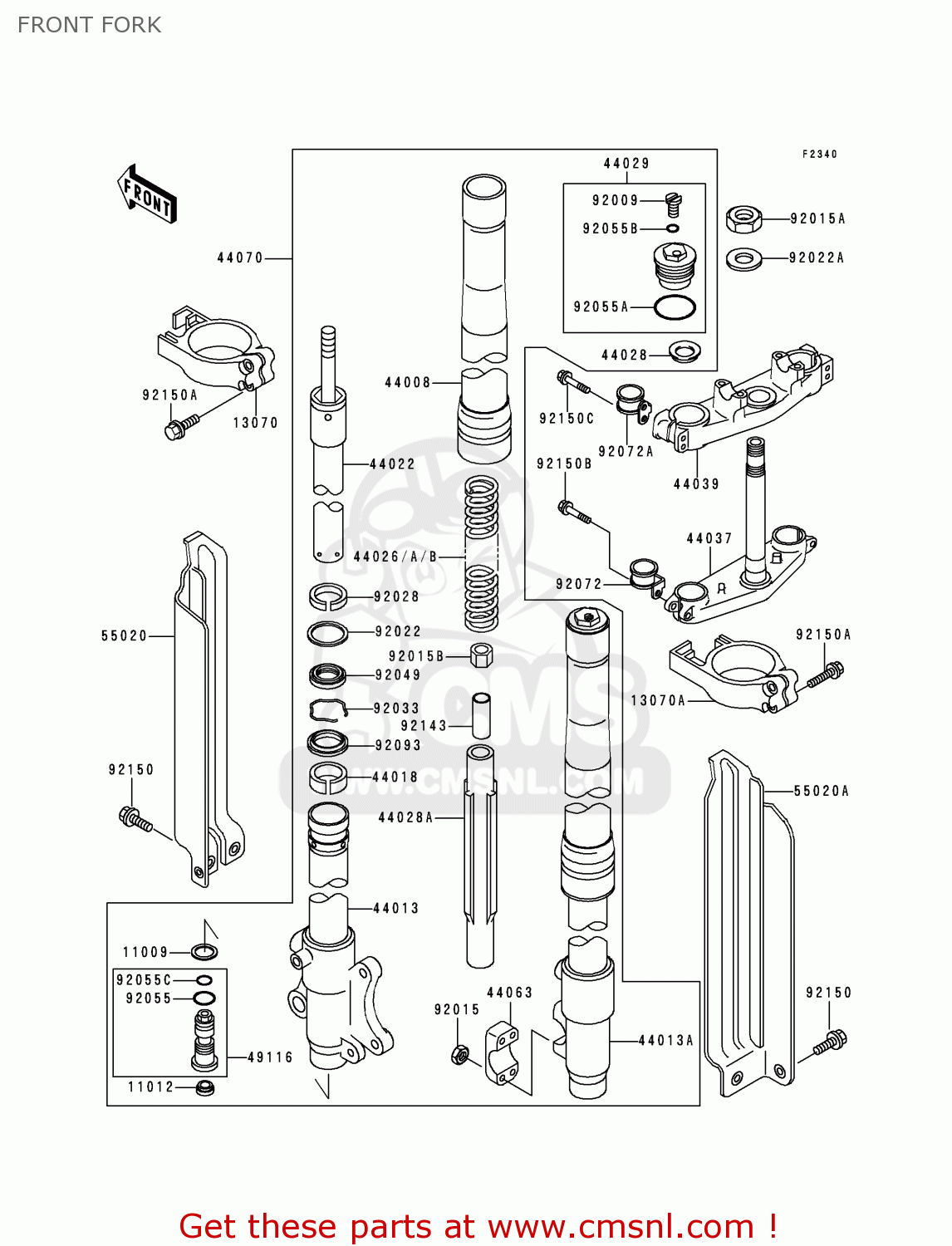

Front fork diagram KLX300A2 KLX300R 1997 USA CANADA
FRONT FORK KLX300A2 KLX300R 1997 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091592
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11012
110121381
ref: 11012
CAP,FORK CYLINDER
€ 3.50
13070
130701263RZ
ref: 13070
GUIDE,FORK,LH,WHITE
€ 22.00
13070A
130701264RZ
ref: 13070A
GUIDE,FORK,RH,WHITE
€ 22.00
44008
44008102814
ref: 44008
PIPE-FORK OUTER,GOLD
€ 909.50
44013
440131387
ref: 44013
PIPE-FORK INNER,LH
€ 320.50
44013A
440131388
ref: 44013A
PIPE-FORK INNER,RH
€ 320.50
44018
440181056
ref: 44018
PISTON-FORK,INNER PIP
€ 19.00
44022
440221314
ref: 44022
FORK CYLINDER
€ 208.50
44026
440261551
ref: 44026
SPRING-FRONT FORK,K=3
€ 47.50
44026A
440261552
ref: 44026A
SPRING-FRONT FORK,L=0
€ 47.50
44026B
440261603
ref: 44026B
FRONT FORK SPRING,K=0
€ 54.50
44028
440281081
ref: 44028
GUIDE-FORK SPRING
€ 8.50
44028A
440281084
ref: 44028A
GUIDE-FORK SPRING
€ 10.00
44029
440291149
ref: 44029
SEAT-FORK SPRING
€ 87.00
44037
440371291
ref: 44037
HOLDER-FORK UNDER
€ 526.00
44039
440391240
ref: 44039
HOLDER-FORK UPPER
€ 243.50
44063
440631056
ref: 44063
HOLDER-FRONT AXLE
€ 41.50
44070
44070156514
ref: 44070
FORK DAMPER ASSEMBLY,GOLD
€ 1,609.00
49116
491161145
ref: 49116
FORK VALVE ASSEMBLY
€ 103.00
55020
550201363RZ
ref: 55020
GUARD,FORK,LH,WHITE
€ 33.00
55020A
550201423RZ
ref: 55020A
GUARD,FORK,RH
€ 27.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151653
ref: 92015A
NUT,STEERING STEM,22M
€ 11.50
92015B
920151839
ref: 92015B
NUT
€ 13.50
92022
920221299
ref: 92022
WASHER
€ 5.50
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92028
920281581
ref: 92028
BUSHING
€ 15.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92049
920491373
ref: 92049
SEAL-OIL
€ 19.00
92055
920551156
ref: 92055
RING-O,REARSHOCK
€ 1.00
92055A
920551333
ref: 92055A
RING-O,FORK,AIR TUBE
€ 3.00
92055B
920551441
ref: 92055B
RING-O
€ 2.50
92055C
920551502
ref: 92055C
RING-O,FORK VALVE
€ 5.00
92072
920721267
ref: 92072
BAND
€ 14.50
92072A
920721268
ref: 92072A
BAND
€ 14.50
92093
920931342
ref: 92093
SEAL,FORK OUTER TUBE
€ 12.50
92143
921431643
ref: 92143
COLLAR,FORK
€ 13.00
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
92150A
921501434
ref: 92150A
BOLT,5X40
€ 3.00
92150B
921501446
ref: 92150B
BOLT,10X40
€ 9.00
92150C
921501516
ref: 92150C
BOLT, FLANGED 8X40
€ 9.50
