CHASSIS ELECTRICAL EQUIPMENT
KLX250G1 1994 UNITED KINGDOM ST

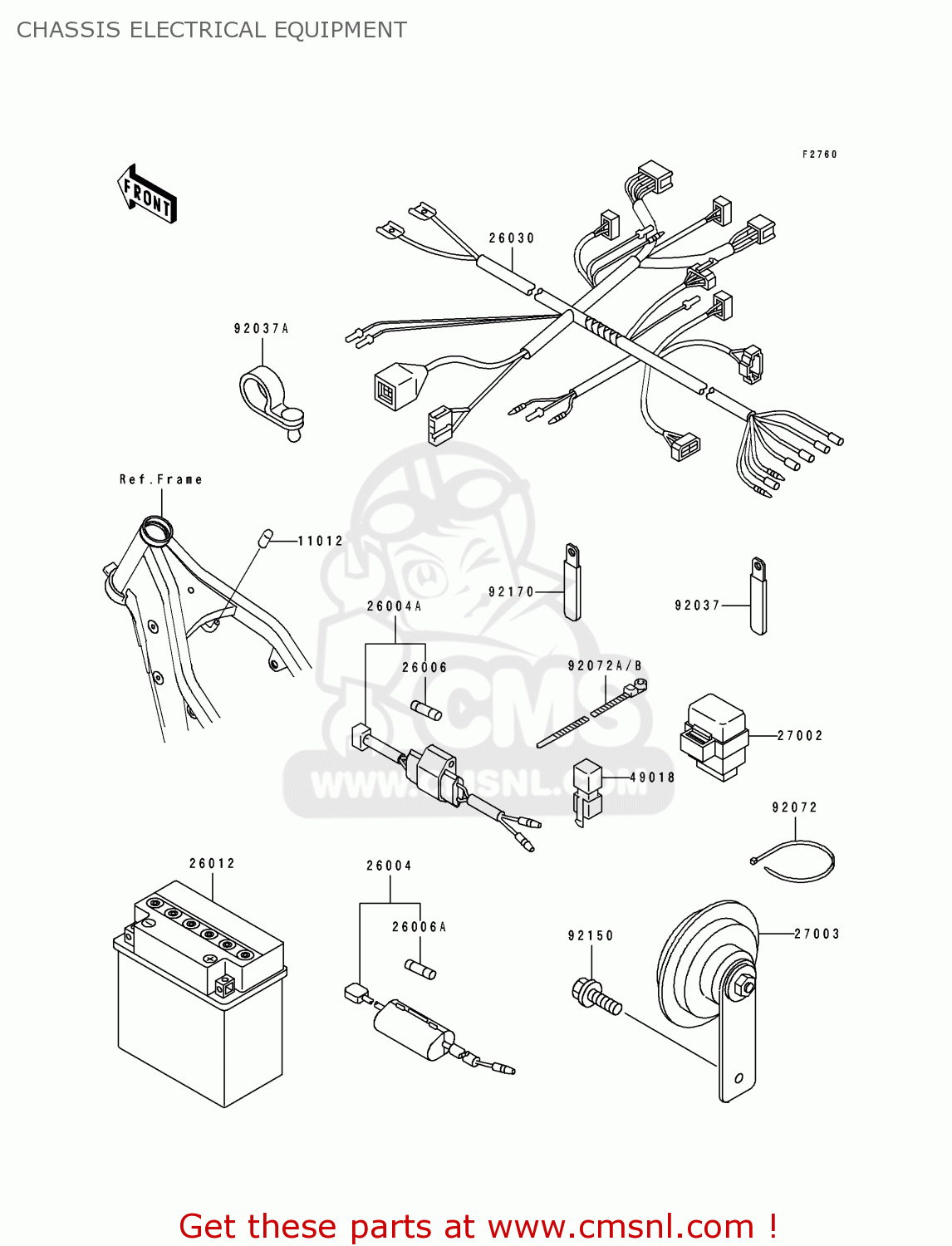

Chassis electrical equipment diagram KLX250G1 1994 UNITED KINGDOM ST
CHASSIS ELECTRICAL EQUIPMENT KLX250G1 1994 UNITED KINGDOM ST
×
prices are in EUR
ref
part #
description
quantity
11012
110121589
ref: 11012
CAP,BUNGEE CORD HOOK
€ 5.00
26004
260041074
ref: 26004
FUSE-ASSY
€ 13.00
26004A
260041089
ref: 26004A
FUSE-ASSY
€ 29.00
26006
260061002
ref: 26006
FUSE,10A,L=30M/M
€ 3.00
26006A
260061056
ref: 26006A
FUSE,20A,L=30
€ 3.00
26012
260121300
ref: 26012
BATTERY
€ 50.50
26030
260301289
ref: 26030
HARNESS,MAIN
€ 233.50
27002
270021090
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 62.50
27003
270031367
ref: 27003
HORN
€ 61.50
49018
490181058
ref: 49018
DIODE
€ 27.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
€ 4.50
92072
920721237
ref: 92072
BAND,L=250
€ 2.00
92072A
920721288
ref: 92072A
BAND,L=215
€ 6.00
92072B
920721293
ref: 92072B
BAND
€ 6.50
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
92170
921701114
ref: 92170
CLAMP
€ 5.00
