CRANKSHAFT
KLX250D4 KLX250R 1996 EUROPE UK FR

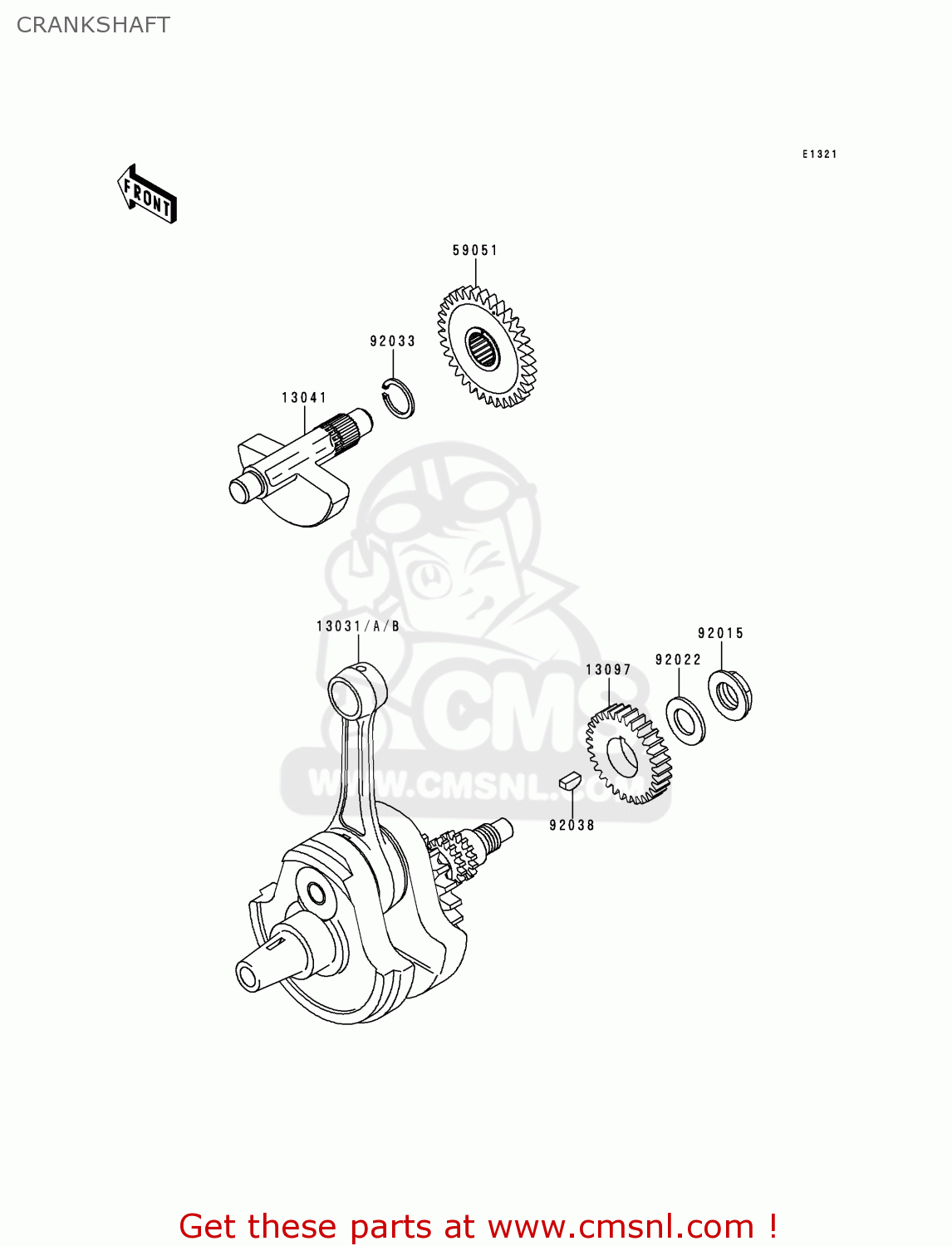

Crankshaft diagram KLX250D4 KLX250R 1996 EUROPE UK FR
CRANKSHAFT KLX250D4 KLX250R 1996 EUROPE UK FR
×
prices are in EUR
ref
part #
description
quantity
13031A
130311391
ref: 13031A
CRANKSHAFT-COMP
€ 531.50
13041
130411107
ref: 13041
BALANCER
€ 72.50
13097
130971296
ref: 13097
GEAR-PRIMARY SPUR,22T
€ 59.00
59051
590511286
ref: 59051
GEAR-SPUR,BALANCER,DR
€ 111.50
92015
920151581
ref: 92015
NUT,16MM
€ 13.50
92022
920221356
ref: 92022
WASHER,16.3X29X1.75
€ 4.50
92033
92033029
ref: 92033
CIRCLIP,18MM
€ 6.50
92038
920381057
ref: 92038
KEY
€ 3.50
