Genuine KLX Kawasaki Parts delivered quickly!


FUEL TANK

KLX125B6F KLX125L 2006 USA CANADA

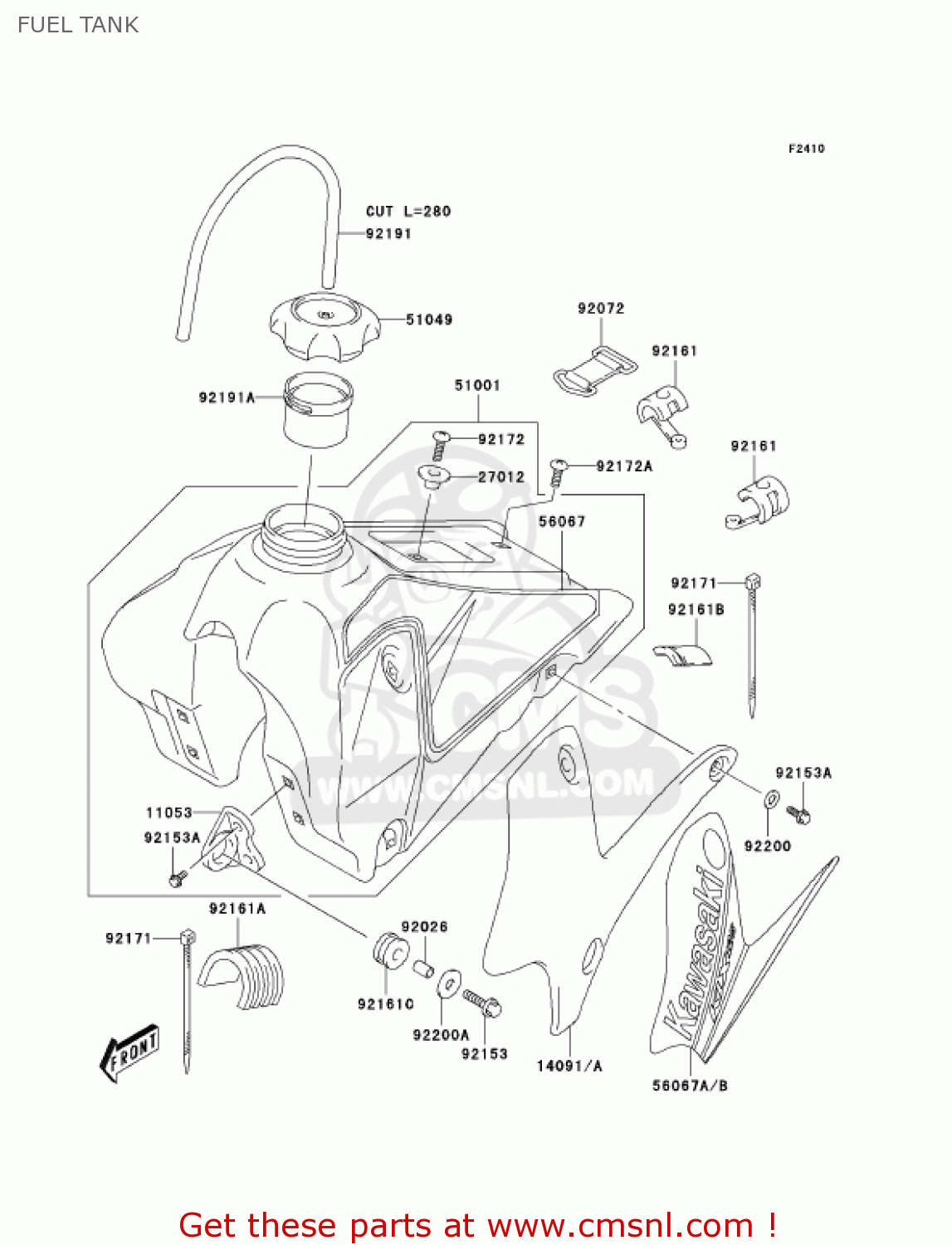

Fuel tank diagram KLX125B6F KLX125L 2006 USA CANADA

FUEL TANK KLX125B6F KLX125L 2006 USA CANADA
FUEL TANK KLX125B6F KLX125L 2006 USA CANADA
FUEL TANK KLX125B6F KLX125L 2006 USA CANADA
prices are in EUR
ref
part #
description
quantity
11053
11053S001
ref: 11053
BRACKET,FUEL TANK FRO
€ 7.50
14091
14091S062908
ref: 14091
COVER,FUEL TANK,RH,L.
€ 26.00
14091A
14091S063908
ref: 14091A
COVER,FUEL TANK,LH,L.
€ 26.00
27012
27012S003
ref: 27012
HOOK,SEAT FRONT
€ 5.50
51001
51001S025539
ref: 51001
TANK-COMP-FUEL,BLACK
€ 262.00
51049
51049S004
ref: 51049
CAP-TANK
51049S004
€ 47.00
56067
56067S002904
ref: 56067
PATTERN,SET,TANK,BLK/
€ 120.00
56067A
56067S003904
ref: 56067A
PATTERN,RH,BLK/WHT/GR
€ 68.00
56067B
56067S004904
ref: 56067B
PATTERN,LH,BLK/WHT/GR
€ 68.00
92026
92026S049
ref: 92026
SPACER,FUEL TANK FRON
€ 1.50
92072
92072S004
ref: 92072
BAND,FUEL TANK REAR
€ 8.00
92153
92153S003
ref: 92153
BOLT
€ 1.50
92153A
92153S144
ref: 92153A
BOLT
€ 1.50
92161
92161S062
ref: 92161
DAMPER,FUEL TANK
€ 5.50
92161A
92161S063
ref: 92161A
DAMPER,FUEL TANK
€ 13.00
92161B
92161S064
ref: 92161B
DAMPER,FUEL TANK
€ 5.50
92161C
92161S065
ref: 92161C
DAMPER
€ 3.50
92171
92171S056
ref: 92171
CLAMP,FUEL TANK CUSHI
€ 2.50
92172
92172S019
ref: 92172
SCREW
92172S019
€ 1.50
92172A
92172S055
ref: 92172A
SCREW
€ 1.50
92191
92191S028
ref: 92191
TUBE,FUEL TANK BREATH
€ 7.50
92191A
92191S029
ref: 92191A
TUBE,FUEL TANK FILLER
€ 4.00
92200
92200S078
ref: 92200
WASHER
€ 1.50
92200A
92200S080
ref: 92200A
WASHER
€ 1.50
