CLUTCH
KLX125-B3 KLX125L 2005 USA CANADA

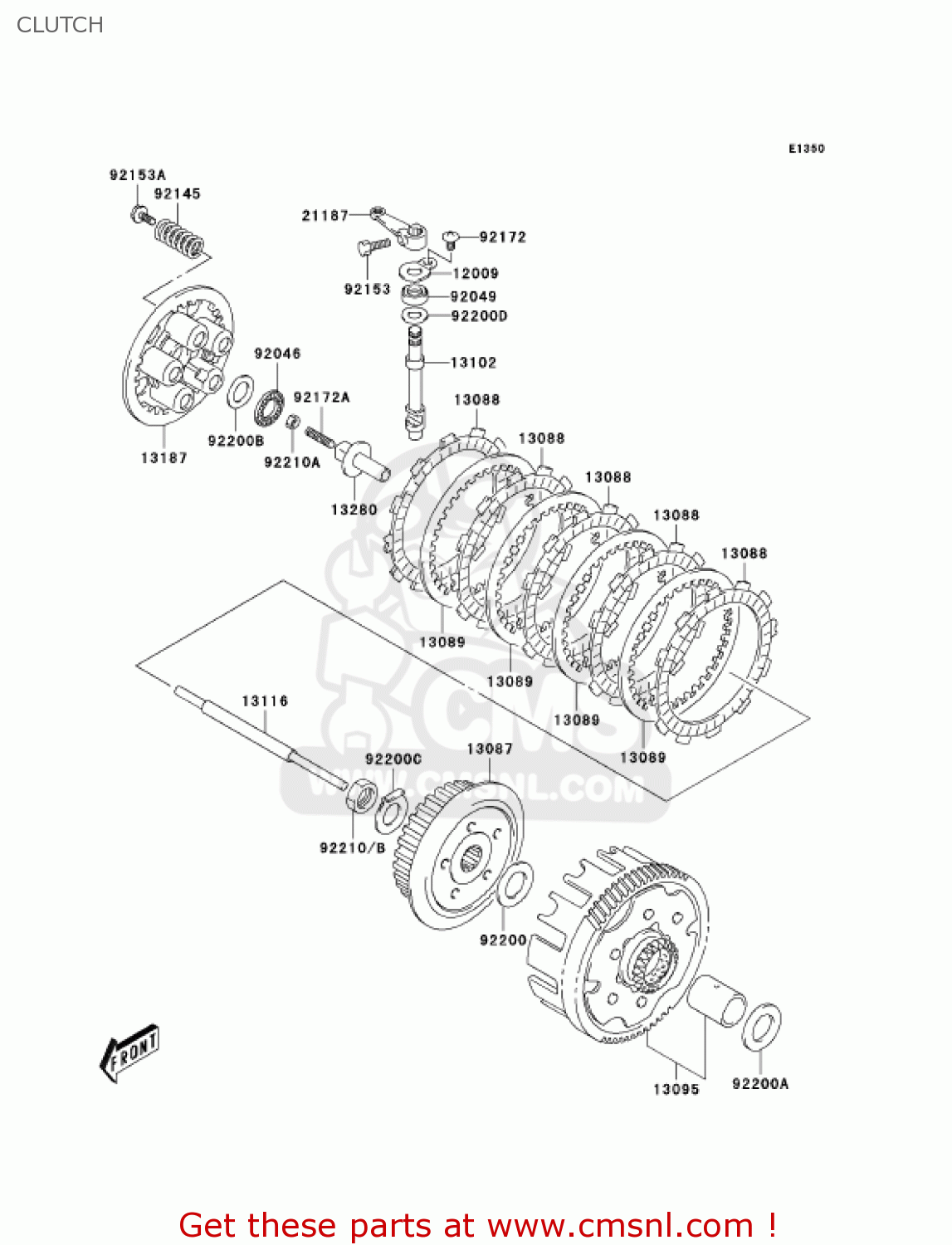

Clutch diagram KLX125-B3 KLX125L 2005 USA CANADA
CLUTCH KLX125-B3 KLX125L 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
12009
12009S003
ref: 12009
RETAINER-VALVE SPRING
€ 3.00
13087
13087S001
ref: 13087
HUB-CLUTCH
€ 35.50
13088
13088S001
ref: 13088
PLATE-FRICTION (NAS)
€ 23.00
13089
13089S001
ref: 13089
PLATE-CLUTCH (NAS)
€ 9.00
13095
13095S003
ref: 13095
HOUSING-COMP-CLUTCH
€ 130.00
13102
13102S002
ref: 13102
RELEASE-COMP-CLUTCH
€ 22.00
13116
13116S002
ref: 13116
ROD-PUSH
€ 8.50
13187
13187S002
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 13.00
13280
13280S012
ref: 13280
HOLDER,CLUTCH PUSH
€ 13.00
21187
21187S001
ref: 21187
ARM-ASSY,CLUTCH RELEA
€ 15.00
92046
92046S006
ref: 92046
BEARING-NEEDLE,15X28X
€ 10.00
92049
92049S018
ref: 92049
SEAL-OIL,10X20X6
€ 7.00
92145
92145S041
ref: 92145
SPRING
€ 2.50
92153
92153S126
ref: 92153
BOLT
€ 1.50
92153
92153S137
ref: 92153
BOLT,5X16
€ 1.50
92172
92172S092
ref: 92172
SCREW
€ 1.50
92172
92172S093
ref: 92172
SCREW
€ 2.00
92200
92200S025
ref: 92200
WASHER
€ 2.00
92200
92200S055
ref: 92200
WASHER
€ 2.00
92200
92200S056
ref: 92200
WASHER,15.5X28X1
€ 3.50
92200
92200S060
ref: 92200
WASHER
€ 1.50
92200
92200S061
ref: 92200
WASHER,10X20X1.0
€ 3.00
92210
92210S047
ref: 92210
NUT,6X3.6
€ 1.50
92210
92210S157
ref: 92210
NUT
€ 2.50
