REAR HUB (B1/B2)
KLX125-B1 KLX125L 2003 USA CANADA

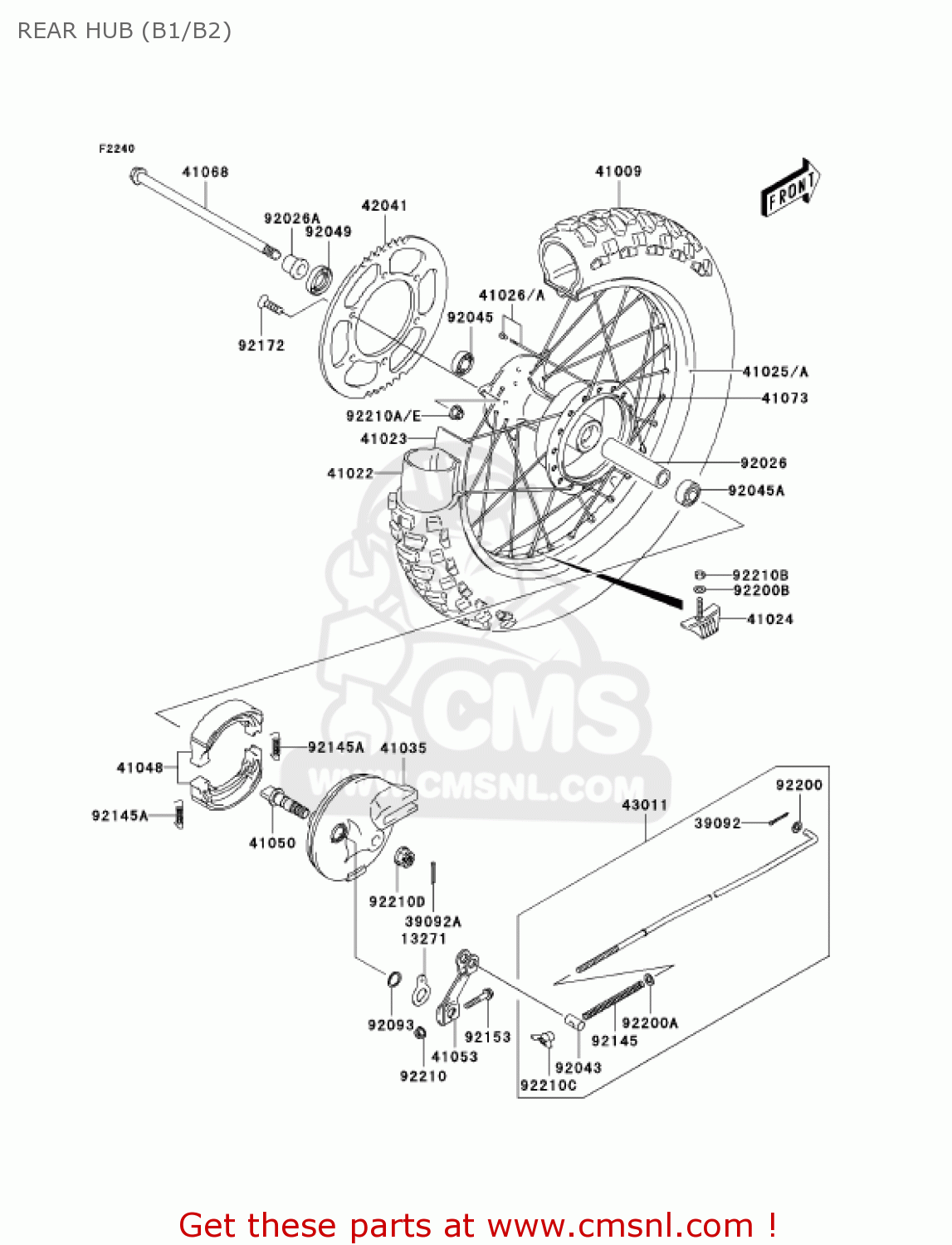

Rear hub (b1/b2) diagram KLX125-B1 KLX125L 2003 USA CANADA
REAR HUB (B1/B2) KLX125-B1 KLX125L 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13271
13271S022
ref: 13271
PLATE,BRAKE LINING IN
€ 2.50
39092
39092S005
ref: 39092
PIN-HAIR,BRAKE PEDAL
€ 1.50
39092A
39092S006
ref: 39092A
PIN-HAIR,REAR AXLE CO
€ 1.00
41009
41009S008
ref: 41009
TIRE,REAR
€ 70.50
41022
41022S004
ref: 41022
TUBE-TIRE
€ 22.50
41023
41023S004
ref: 41023
BAND-RIM
€ 3.50
41024
41024S001
ref: 41024
STOPPER-RIM
€ 24.00
41025
41025S004
ref: 41025
RIM,RR WHEEL,16X1.60
€ 64.50
41026
41026S004
ref: 41026
SPOKE-ASSY,REAR WHEEL
€ 34.00
41035
41035S002
ref: 41035
PANEL-ASSY-BRAKE
€ 77.50
41048
41048S003
ref: 41048
SHOE-BRAKE (NAS)
€ 28.00
41050
41050S003
ref: 41050
CAM-BRAKE
€ 12.50
41053
41053S003
ref: 41053
LEVER-BRAKE CAM
€ 14.00
41068
41068S004
ref: 41068
AXLE,REAR
€ 23.00
41073
41073S010
ref: 41073
WHEEL-ASSY,REAR WHEEL
€ 202.00
42041
42041S003
ref: 42041
SPROCKET-HUB
€ 46.50
43011
43011S002
ref: 43011
ROD-BRAKE
€ 11.50
92026
92026S006
ref: 92026
SPACER,12.5X19X105.5
€ 5.50
92026A
92026S055
ref: 92026A
SPACER
€ 8.50
92043
92043S023
ref: 92043
PIN,BRAKE ROD ADJUSTE
€ 1.50
92045
92045S029
ref: 92045
BEARING-BALL,REAR HUB
€ 20.00
92045A
92045S030
ref: 92045A
BEARING-BALL,REAR HUB
€ 13.00
92049
92049S025
ref: 92049
SEAL-OIL
€ 3.50
92093
92093S008
ref: 92093
SEAL,REAR BRAKE CAM
€ 4.50
92145
92145S046
ref: 92145
SPRING,REAR BRAKE ROD
€ 1.50
92145A
92145S047
ref: 92145A
SPRING,REAR BRAKE SHO
€ 2.00
92153
92153S130
ref: 92153
BOLT
€ 1.50
92172
92172S111
ref: 92172
SCREW
€ 1.50
92200
92200S002
ref: 92200
WASHER
€ 1.50
92200A
92200S003
ref: 92200A
WASHER
€ 1.50
92200B
92200S028
ref: 92200B
WASHER
€ 1.50
92210
92210S004
ref: 92210
NUT
€ 1.50
92210A
92210S046
ref: 92210A
NUT
€ 3.00
92210B
92210S051
ref: 92210B
NUT
€ 1.00
92210C
92210S055
ref: 92210C
NUT
€ 2.00
92210D
92210S056
ref: 92210D
NUT
€ 9.00
