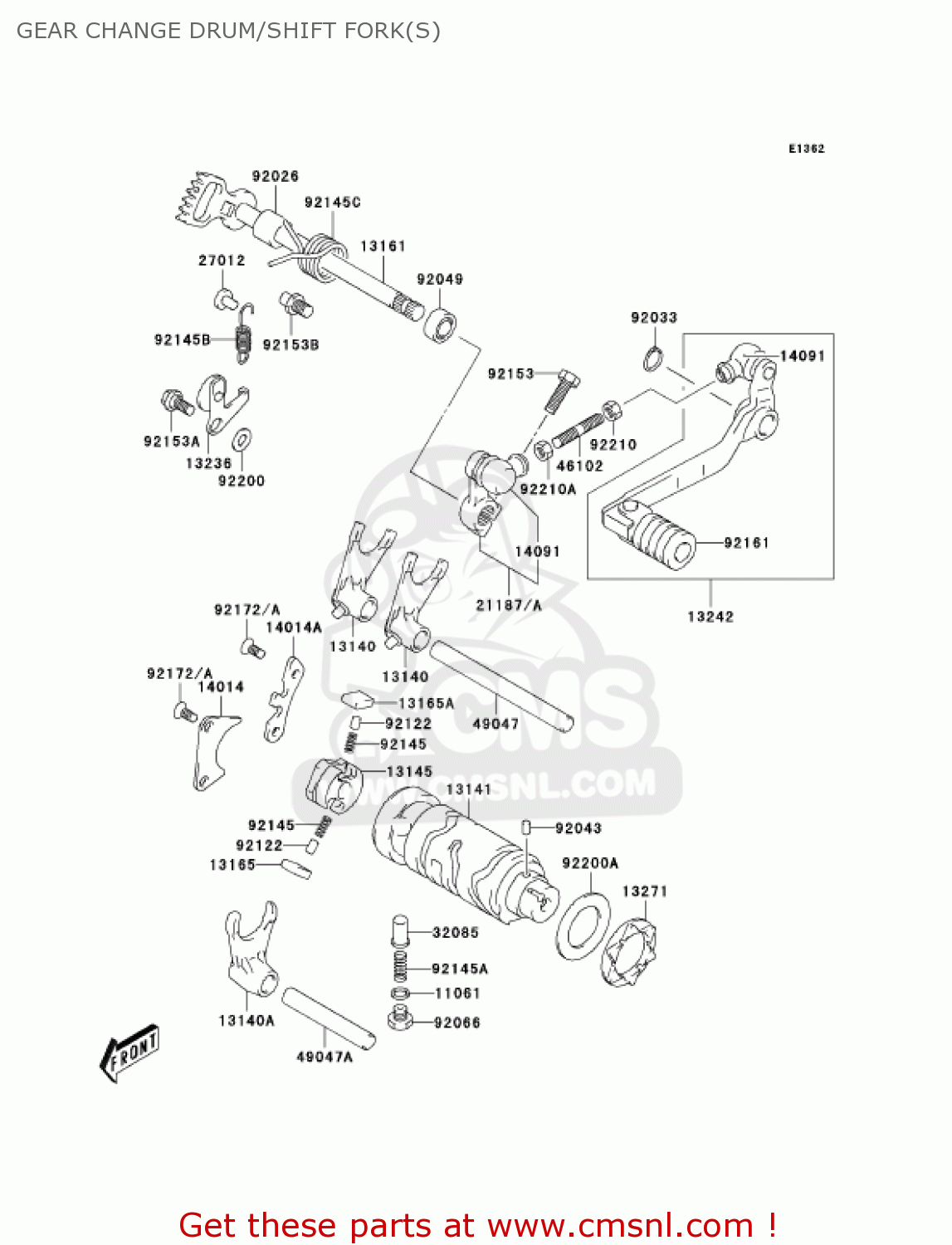

GEAR CHANGE DRUM/SHIFT FORK(S)

ref

part #

description

quantity

11061

11061S006
ref: 11061

GASKET,13.8X18.8X0.4 (NAS)

€ 1.50

13140

13140S003
ref: 13140

FORK-SHIFT

€ 36.50

13140A

13140S004
ref: 13140A

FORK-SHIFT

€ 36.50

13141

13141S003
ref: 13141

DRUM-CHANGE

€ 56.50

13145

13145S002
ref: 13145

CAM-CHANGE DRUM

€ 13.50

13161

13161S002
ref: 13161

LEVER-COMP-CHANGE SHA

€ 38.50

13165

13165S003
ref: 13165

PAWL

€ 9.50

13165A

13165S004
ref: 13165A

PAWL

€ 9.50

13236

13236S002
ref: 13236

LEVER-COMP

€ 7.00

13242

13242S001
ref: 13242

LEVER-ASSY-CHANGE

€ 58.00

13271

13271S021
ref: 13271

PLATE,GEAR SHIFT CAM

€ 9.50

14014

14014S002
ref: 14014

PLATE-POSITION

€ 3.50

14014A

14014S003
ref: 14014A

PLATE-POSITION

€ 6.00

14091

14091S064
ref: 14091

COVER

€ 4.50

21187A

21187S005
ref: 21187A

ARM-ASSY

€ 28.50

27012

27012S002
ref: 27012

HOOK

€ 1.00

32085

32085S004
ref: 32085

STOPPER

€ 6.00

46102

46102S003
ref: 46102

ROD

€ 4.00

49047

49047S001
ref: 49047

ROD-SHIFT,L:109

€ 8.50

49047A

49047S002
ref: 49047A

ROD-SHIFT

€ 12.00

92026

92026S037
ref: 92026

SPACER,12X20X15.3

€ 2.00

92033

92033S023
ref: 92033

RING-SNAP

€ 1.50

92043

92043S020
ref: 92043

PIN

€ 1.50

92049

92049S020
ref: 92049

SEAL-OIL,12X22X9

€ 3.00

92066

92066S016
ref: 92066

PLUG

€ 2.00

92122

92122S005
ref: 92122

ROLLER,5X8

€ 2.50

92145

92145S037
ref: 92145

SPRING

€ 2.00

92145A

92145S039
ref: 92145A

SPRING

€ 1.00

92145B

92145S043
ref: 92145B

SPRING

€ 1.50

92145C

92145S044
ref: 92145C

SPRING

€ 3.00

92153

92153S127
ref: 92153

BOLT

€ 1.50

92153A

92153S136
ref: 92153A

BOLT,6X14.6

€ 2.00

92153B

92153S139
ref: 92153B

BOLT

€ 3.00

92161

92161S057
ref: 92161

DAMPER,GEAR SHIFT PED

€ 3.50

92172A

92172S112
ref: 92172A

SCREW

€ 1.50

92200

92200S051
ref: 92200

WASHER

€ 2.00

92200A

92200S064
ref: 92200A

WASHER,25X40X1.0

€ 2.00

92210

92210S093
ref: 92210

NUT

€ 1.50

92210A

92210S095
ref: 92210A

NUT

€ 1.50

all assemblies
