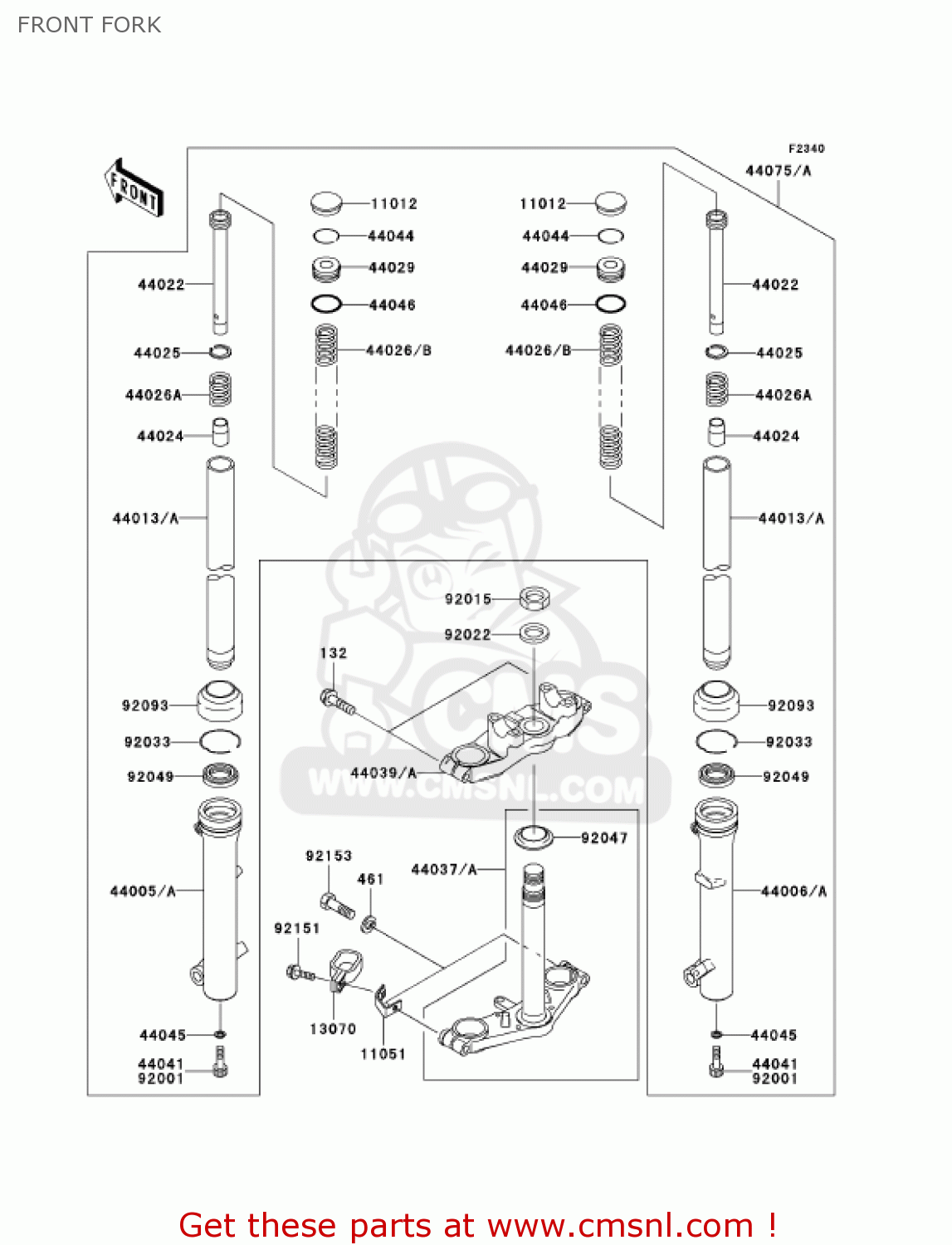

FRONT FORK

ref

part #

description

quantity

132

132G0835
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

461

461F1000
ref: 461

WASHER-SPRING,10MM

€ 0.50

11012

110121067
ref: 11012

CAP,RUBBER,FORK TOP

€ 4.00

11051

110511892
ref: 11051

BRACKET,BRAKE HOSE GU

€ 11.50

13070

130701349
ref: 13070

GUIDE

€ 7.50

44005A

440051430
ref: 44005A

PIPE-LEFT FORK OUTER

€ 216.00

44006A

440061430
ref: 44006A

PIPE-RIGHT FORK OUTER

€ 216.00

44013A

440131505
ref: 44013A

PIPE-FORK INNER

€ 139.00

44022

440221346
ref: 44022

CYLINDER-FORK

€ 50.00

44024

440241071
ref: 44024

CAP-OIL-LOCK

€ 15.00

44025

440251061
ref: 44025

RING-FORK PISTON

€ 6.50

44026A

44026060
ref: 44026A

SPRING, REBOUND

€ 4.00

44026B

440261763
ref: 44026B

SPRING-FRONT FORK

€ 38.00

44029

44029022
ref: 44029

GUIDE, FORK SPRING

€ 8.00

44037A

440371433
ref: 44037A

HOLDER-FORK UNDER

€ 213.00

44039A

440391326
ref: 44039A

HOLDER-FORK UPPER

€ 199.00

44041

44041078
ref: 44041

BOLT, FORK CYLINDER

€ 6.50

44044

44044023
ref: 44044

CIRCLIP

€ 3.50

44045

44045051
ref: 44045

GASKET,FORK CYLINDER (NAS)

€ 4.00

44046

44046025
ref: 44046

'O' RING, FORK

€ 4.00

44075A

440751165
ref: 44075A

DAMPER-SET-FORK

€ 618.00

92015

920151653
ref: 92015

NUT,STEERING STEM,22M

€ 11.50

92022

920221873
ref: 92022

WASHER

€ 5.00

92033

920331028
ref: 92033

CIRCLIP,FORK OUTER

€ 3.00

92047

92047013
ref: 92047

CONE,STRG STM

€ 12.50

92049

920491069
ref: 92049

OIL SEAL

€ 13.00

92093

920931054
ref: 92093

DUST SHIELD

€ 11.50

92151

921511637
ref: 92151

BOLT

€ 2.50

92153

921531199
ref: 92153

BOLT,10X35

€ 3.00

all assemblies
