HANDLEBAR

KLE500A5 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

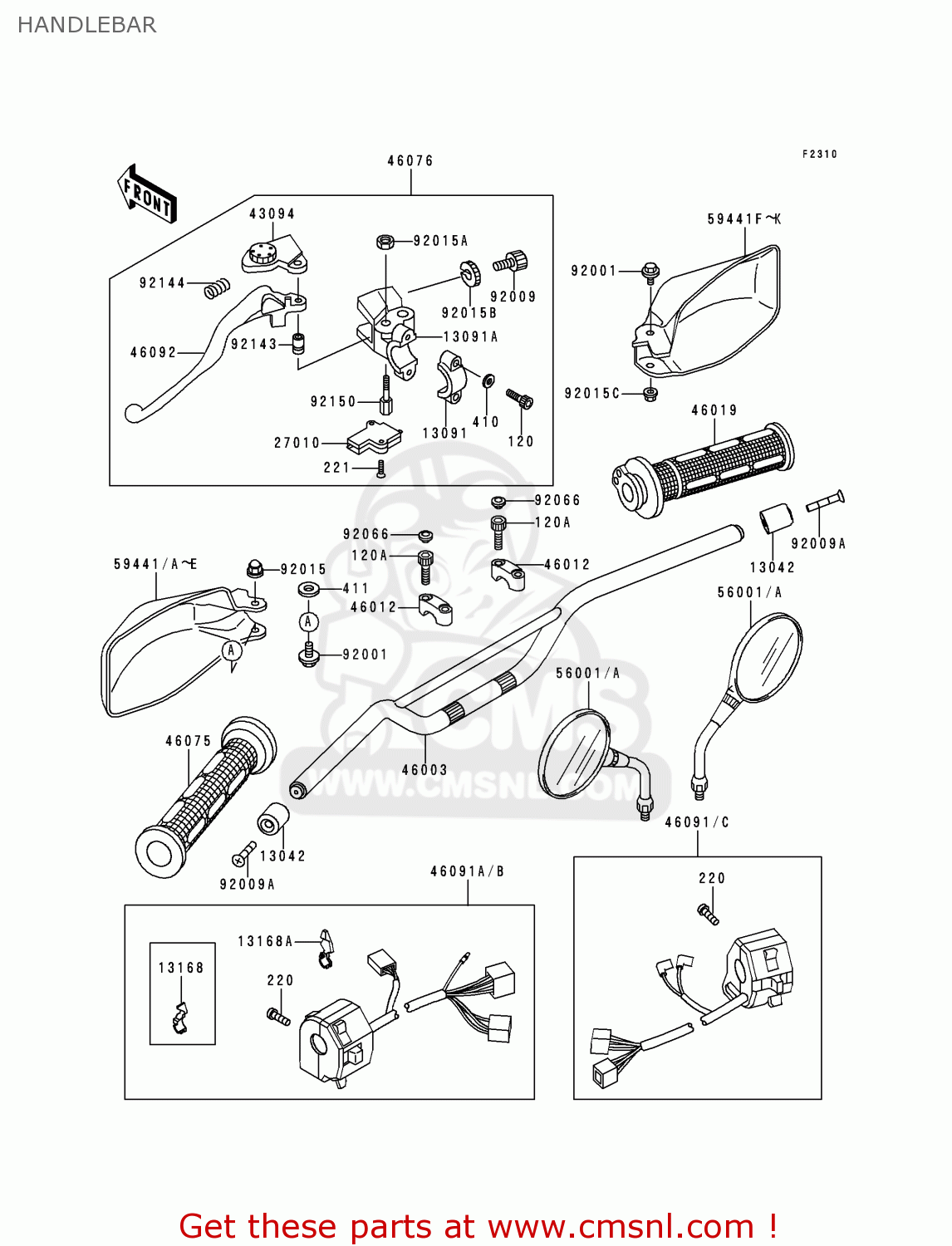

Handlebar diagram KLE500A5 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

HANDLEBAR KLE500A5 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
HANDLEBAR KLE500A5 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
HANDLEBAR KLE500A5 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
13042
130421077
ref: 13042
WEIGHT,HANDLE
130421077
€ 21.00
13091
130911624
ref: 13091
HOLDER,CLUTCH LEVER
130911624
€ 26.00
13091A
130911652
ref: 13091A
HOLDER,CLUTCH LEVER
130911652
€ 40.50
13168
131681374
ref: 13168
LEVER,CHOKE
131681374
€ 7.00
27010
270101094
ref: 27010
SWITCH,CLUTCH
270101094
€ 20.50
43094
430941053
ref: 43094
ADJUSTER,CLUTCH LEVER
430941053
€ 26.00
46003
460031350
ref: 46003
HANDLE
460031350
€ 112.50
46012
460121102
ref: 46012
HOLDER-HANDLE,UPP
460121102
€ 17.00
46019
460191077
ref: 46019
GRIP-ASSY,THROTTLE
460191077
€ 27.50
46075
460751088
ref: 46075
GRIP,LH
460751088
€ 11.50
46076
460761183
ref: 46076
LEVER-ASSY-GRIP,CLUTC
460761183
€ 104.50
46091
460911566
ref: 46091
HOUSING-ASSY-CONTROL,
460911566
€ 146.50
46091A
460911567
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 148.00
46092
460921161
ref: 46092
LEVER-GRIP,CLUTCH
460921161
€ 14.00
56001
560011058
ref: 56001
EUFRITNLSDSPUK
MIRROR-ASSY
560011058
€ 86.50
56001A
560011342
ref: 56001A
ARFGGRNRST
MIRROR-ASSY
560011342
€ 88.00
59441A
59441110056
ref: 59441A
AREUFRGRITNLSP
COVER-HANDLE,LH,M.GRE
59441110056
€ 15.50
59441B
5944111006C
ref: 59441B
AREUFGFRGRSDST
COVER-HANDLE,LH,EBONY
€ 15.50
59441E
59441110060
ref: 59441E
AREUFGGRITNLNRSPSTUK
COVER-HANDLE,LH,BLUE
59441110060
€ 14.00
59441G
59441110156
ref: 59441G
AREUFRGRITNLSP
COVER-HANDLE,RH,M.GRE
59441110156
€ 15.50
59441H
5944111016C
ref: 59441H
AREUFGFRGRSDST
COVER-HANDLE,RH,EBONY
5944111016C
€ 15.50
59441K
59441110160
ref: 59441K
AREUFGGRITNLNRSPSTUK
COVER-HANDLE,RH,BLUE
59441110160
€ 14.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
920011034
€ 7.00
92009
920091134
ref: 92009
SCREW,CBL ADJUST,8MM
920091134
€ 10.50
92009A
920091727
ref: 92009A
SCREW
920091727
€ 2.50
92015
920151153
ref: 92015
NUT,CAP,6M/M
920151153
€ 1.00
92015A
920151191
ref: 92015A
NUT,LOCK,6MM,BLACK
920151191
€ 2.00
92015B
920151197
ref: 92015B
NUT,CABLE ADJUST LOCK
920151197
€ 6.50
92015C
920151603
ref: 92015C
NUT
920151603
€ 3.00
92066
920661216
ref: 92066
PLUG,HANDLE HOLDER
920661216
€ 3.00
92143
921431379
ref: 92143
COLLAR
921431379
€ 6.50
92144
921441467
ref: 92144
SPRING
921441467
€ 4.00
92150
921501498
ref: 92150
BOLT
921501498
€ 16.00
120
120S0620
ref: 120
BOLT-SOCKET,6X20
120S0620
€ 1.00
120A
120S0830
ref: 120A
BOLT-SOCKET,8X30,BLAC
120S0830
€ 3.00
220
220C0520
ref: 220
SCREW-PAN-CROS
220C0520
€ 0.50
221
221C0316
ref: 221
SCREW-CSK-CROS
221C0316
€ 2.50
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
410F0600
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
411B0600
€ 0.50
