GEAR CHANGE MECHANISM

KL650A5 KLR650 1991 USA CALIFORNIA CANADA

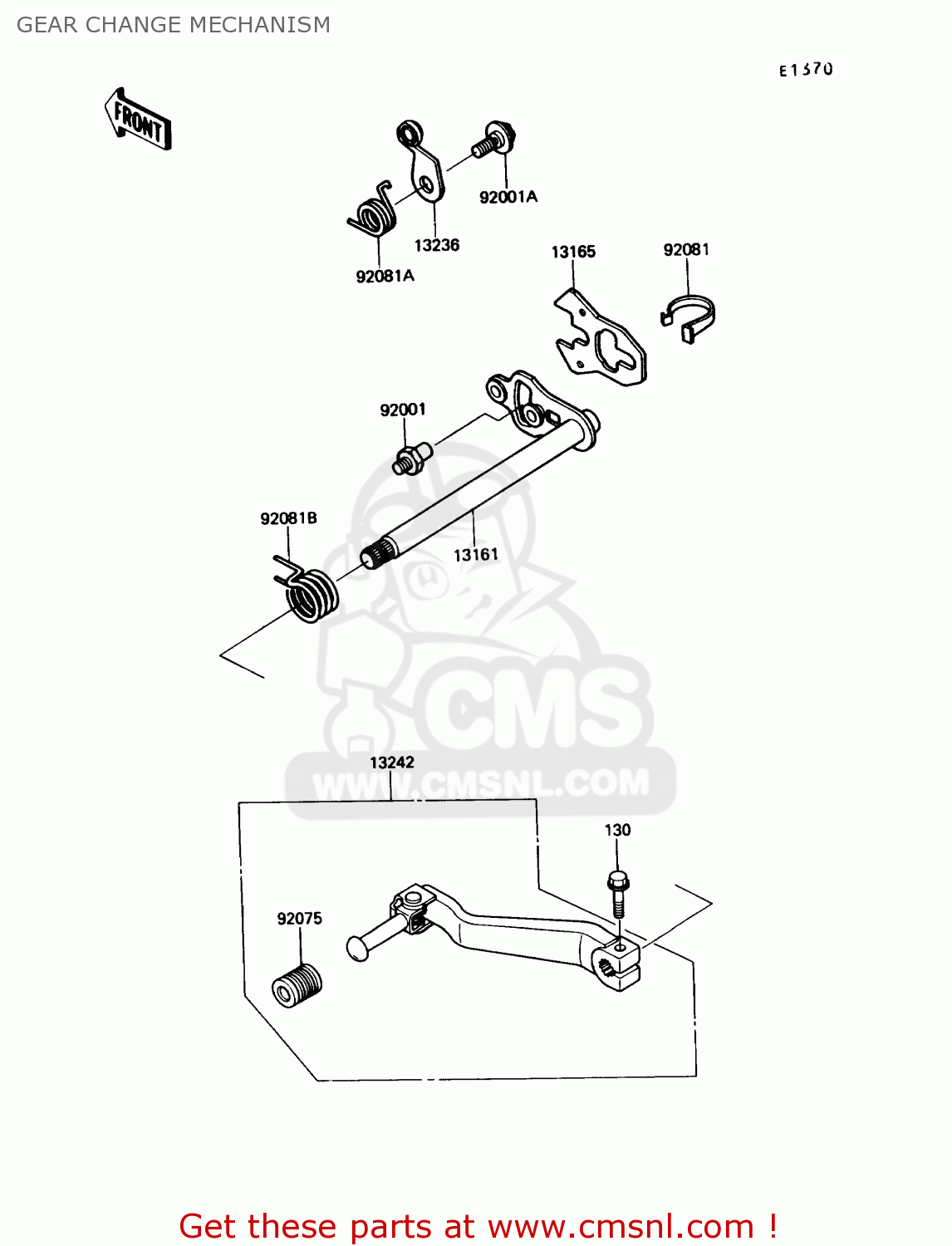

Gear change mechanism diagram KL650A5 KLR650 1991 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

13161

131611104
ref: 13161

LEVER-COMP-CHANGE SHA

€ 64.50

13165

131651120
ref: 13165

PAWL

€ 9.50

13236

132361101
ref: 13236

LEVER-COMP

€ 6.00

13242

132421233
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 47.00

92001

920011455
ref: 92001

BOLT

€ 3.00

92001A

920011715
ref: 92001A

BOLT

€ 7.00

92075

920751944
ref: 92075

DAMPER,CHANGE PEDAL

€ 6.00

92081

920811493
ref: 92081

SPRING,CHANGE LEVER

€ 4.50

92081A

920811496
ref: 92081A

SPRING

€ 6.00

92081B

920811750
ref: 92081B

SPRING,CHANGE PEDAL R

€ 7.50
