ENGINE COVER

KL650A4 KLR650 1990 USA CALIFORNIA CANADA

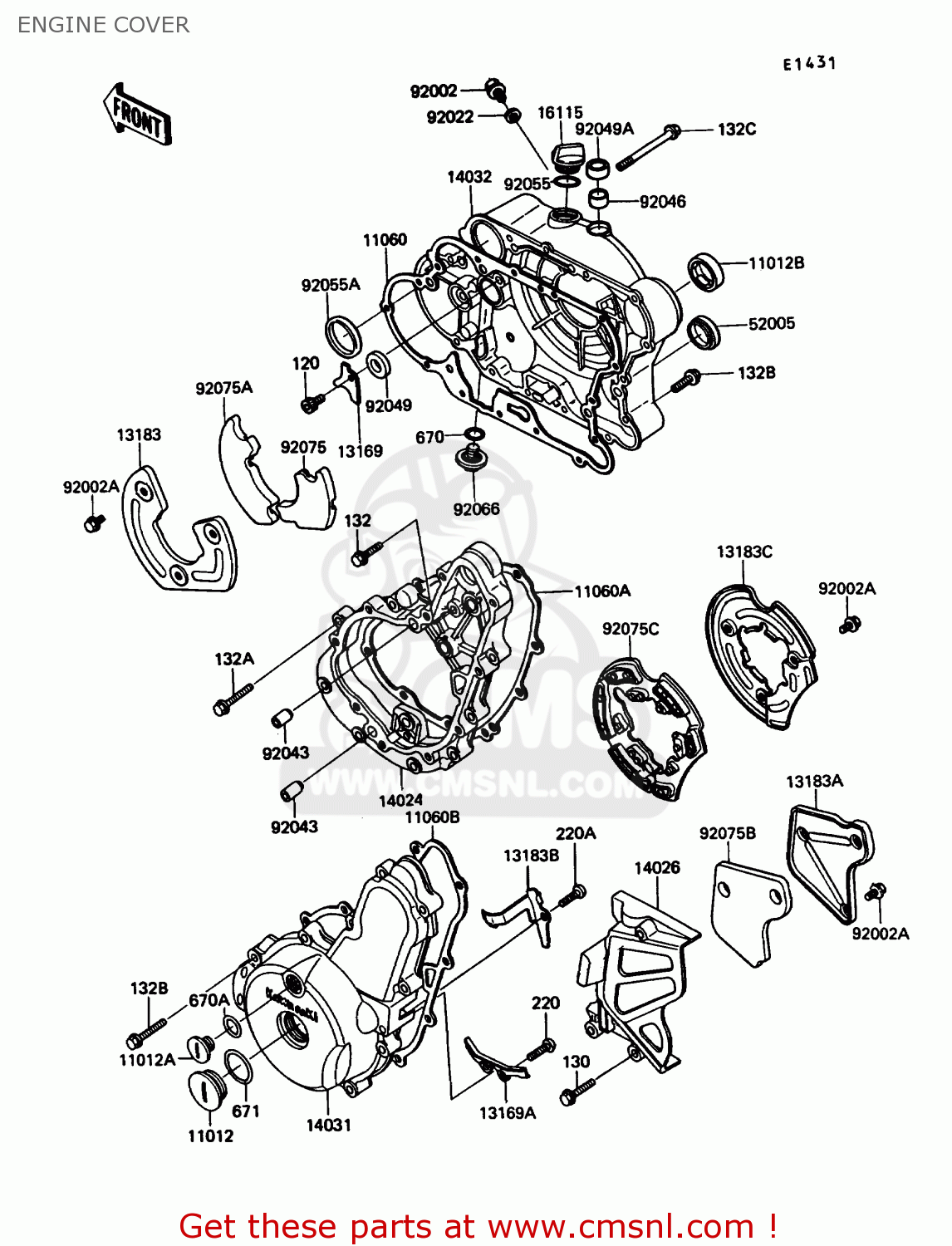

Engine cover diagram KL650A4 KLR650 1990 USA CALIFORNIA CANADA

ENGINE COVER KL650A4 KLR650 1990 USA CALIFORNIA CANADA
ENGINE COVER KL650A4 KLR650 1990 USA CALIFORNIA CANADA
ENGINE COVER KL650A4 KLR650 1990 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120P0610
ref: 120
BOLT-SOCKET,6X10
120P0610
€ 1.00
130
130J0625
ref: 130
BOLT-FLANGED,6X25
130J0625
€ 2.00
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
132J0620
€ 2.00
132A
132J0625
ref: 132A
BOLT-FLANGED-SMALL
132J0625
€ 2.50
132B
132J0630
ref: 132B
BOLT-FLANGED-SMALL
132J0630
€ 2.50
132C
132J0680
ref: 132C
BOLT-FLANGED-SMALL
132J0680
€ 4.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
220B0510
€ 0.50
220A
220B0612
ref: 220A
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
11012
110121362
ref: 11012
CAP
110121362
€ 6.00
11012A
110121363
ref: 11012A
CAP,TOP MARK
110121363
€ 4.00
11012B
110121567
ref: 11012B
CAP
110121567
€ 6.50
11060
110601111
ref: 11060
GASKET, CLUTCH COVER (NAS)
110601111
€ 23.00
11060A
110601112
ref: 11060A
GASKET,GENERATOR CASE (NAS)
110601112
€ 18.00
11060B
110601113
ref: 11060B
GASKET,GENERATOR COVE (NAS)
110601113
€ 18.00
13169
131691735
ref: 13169
PLATE,OIL SEAL
131691735
€ 4.00
13169A
131691882
ref: 13169A
PLATE,PULSING COIL LE
131691882
€ 6.00
13183
131831122
ref: 13183
PLATE
131831122
€ 7.00
13183A
131831133
ref: 13183A
PLATE
€ 11.50
13183B
131831144
ref: 13183B
PLATE,GENERATOR
131831144
€ 6.50
13183C
131831146
ref: 13183C
PLATE
€ 11.50
14024
140251990
ref: 14024
COVER,GENERATOR CASE
140251990
€ 215.50
14026
140261131
ref: 14026
COVER-CHAIN
€ 49.00
14031
140311210
ref: 14031
COVER-GENERATOR
140311210
€ 140.50
14032
140321230
ref: 14032
COVER-CLUTCH
€ 404.50
16115
161151009
ref: 16115
CAP-OIL FILLER
161151009
€ 10.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
92002
920021356
ref: 92002
BOLT
920021356
€ 4.00
92002A
920021944
ref: 92002A
BOLT,6X8
920021944
€ 3.00
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
920461010
€ 17.00
92049
920491158
ref: 92049
SEAL-OIL,SCY 15X30X7
920491158
€ 16.50
92049A
920491271
ref: 92049A
SEAL, OIL
920491271
€ 7.00
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
920551221
ref: 92055A
RING-O,62.6X66X3.1
920551221
€ 6.00
92066
920661156
ref: 92066
PLUG,DRAIN
920661156
€ 9.50
92075
920751939
ref: 92075
DAMPER
€ 8.00
92075A
920751940
ref: 92075A
DAMPER
€ 8.50
92075B
920751943
ref: 92075B
DAMPER
920751943
€ 14.50
92075C
920751959
ref: 92075C
DAMPER
920751959
€ 15.00
670
670B2011
ref: 670
O RING,11MM
670B2011
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
671
671B2540
ref: 671
O RING,40MM
671B2540
€ 4.00
