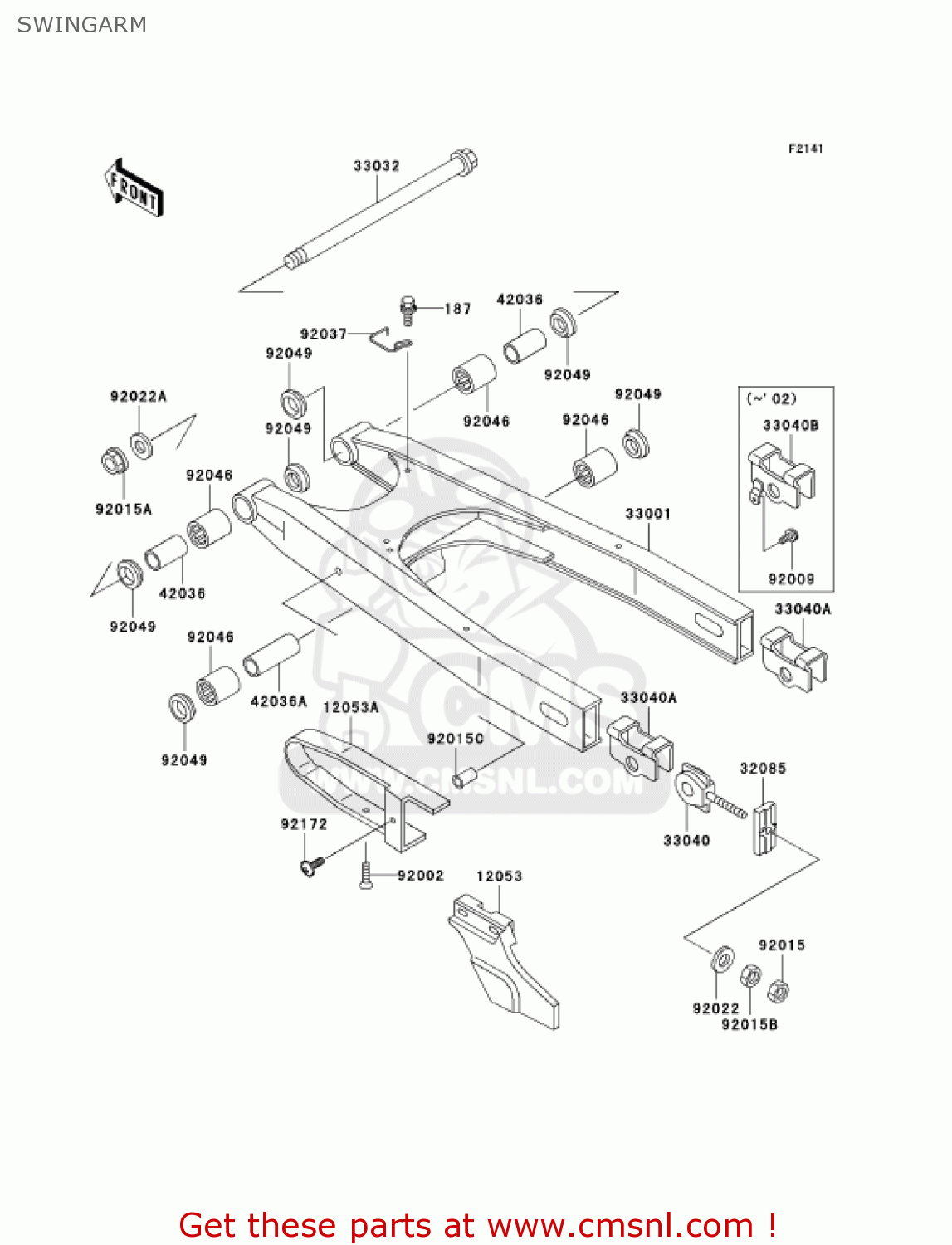

SWINGARM

ref

part #

description

quantity

187

187D0616
ref: 187

BOLT-UPSET-WSP

€ 0.50

12053

120531104
ref: 12053

GUIDE-CHAIN,RR

€ 46.00

12053A

120531360
ref: 12053A

GUIDE-CHAIN,DRIVE,FR

€ 37.50

32085

320851256
ref: 32085

STOPPER,CHAIN ADJUSTE

€ 16.00

33001

330011278CE
ref: 33001

ARM-COMP-SWING,SILVER

€ 929.00

33032

330321128
ref: 33032

SHAFT-SWING ARM

€ 56.00

33040

330401075
ref: 33040

ADJUSTER-CHAIN,INNER

€ 22.50

33040A

330401076
ref: 33040A

ADJUSTER-CHAIN,OUTER

€ 27.00

42036

420361204
ref: 42036

SLEEVE,15X20X47.5

€ 12.50

42036A

420361205
ref: 42036A

SLEEVE,15X20X82

€ 18.50

92002

920021775
ref: 92002

BOLT,DISC PLATE,6MM

€ 2.50

92015

920151364
ref: 92015

NUT,8MM

€ 2.50

92015A

920151459
ref: 92015A

NUT,14MM

€ 6.50

92015B

920151658
ref: 92015B

NUT,FLANGED,8MM

€ 3.00

92015C

920151796
ref: 92015C

NUT,CRIMP 6MM

€ 3.00

92022

920221582
ref: 92022

WASHER,8.5X16X1.2

€ 0.50

92022A

920221701
ref: 92022A

WASHER

€ 3.00

92037

920371902
ref: 92037

CLAMP,HOSE

€ 4.50

92046

920461110
ref: 92046

BEARING-NEEDLE,BM2027

€ 22.50

92049

920491109
ref: 92049

SEAL-OIL,ARM,CNT

€ 6.50

92172

921720002
ref: 92172

SCREW,6X18

€ 2.00
