TURN SIGNALS

KL650A17 KLR650 2003 USA CALIFORNIA CANADA

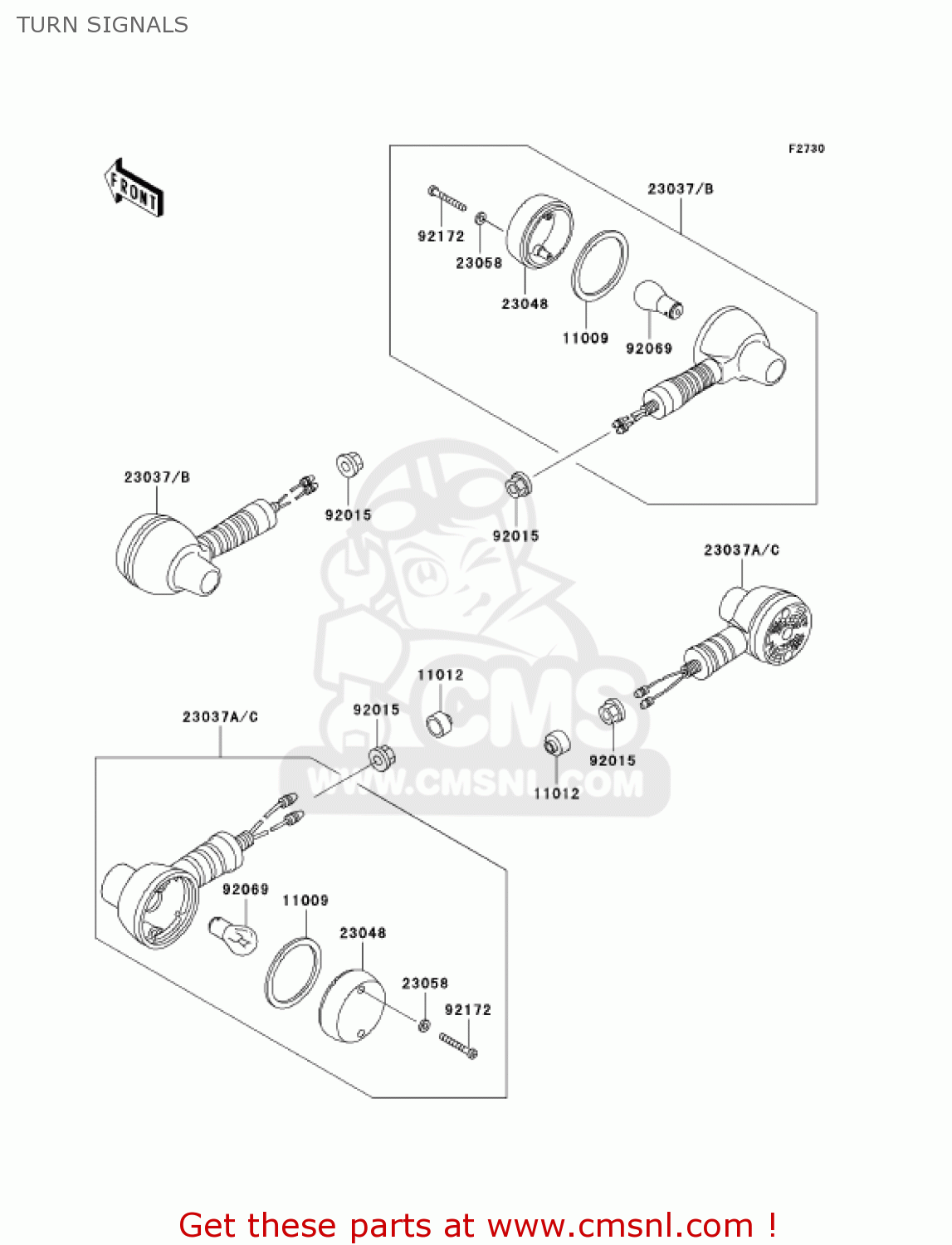

Turn signals diagram KL650A17 KLR650 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11009

110091128
ref: 11009

GASKET,TURN SIGNAL LA (NAS)

€ 3.00

11012

110121367
ref: 11012

CAP,SIGNAL LAMP

€ 4.00

23037B

230371201
ref: 23037B

LAMP-ASSY-SIGNAL,FR

€ 49.50

23037C

230371202
ref: 23037C

LAMP-ASSY-SIGNAL,RR

€ 52.00

23048

230481076
ref: 23048

LENS-SIGNAL LAMP

€ 10.50

23058

23058002
ref: 23058

WASHER,PLAIN,4MM

€ 2.00

92015

920151428
ref: 92015

NUT,FLANGED,10MM

€ 3.00

92069

92069055
ref: 92069

BULB 12V 32CP

€ 4.50

92172

921720124
ref: 92172

SCREW,TAPPING,4X30

€ 1.50

all assemblies
