ENGINE COVER(S)

KL650A11 KLR650 1997 USA CALIFORNIA CANADA

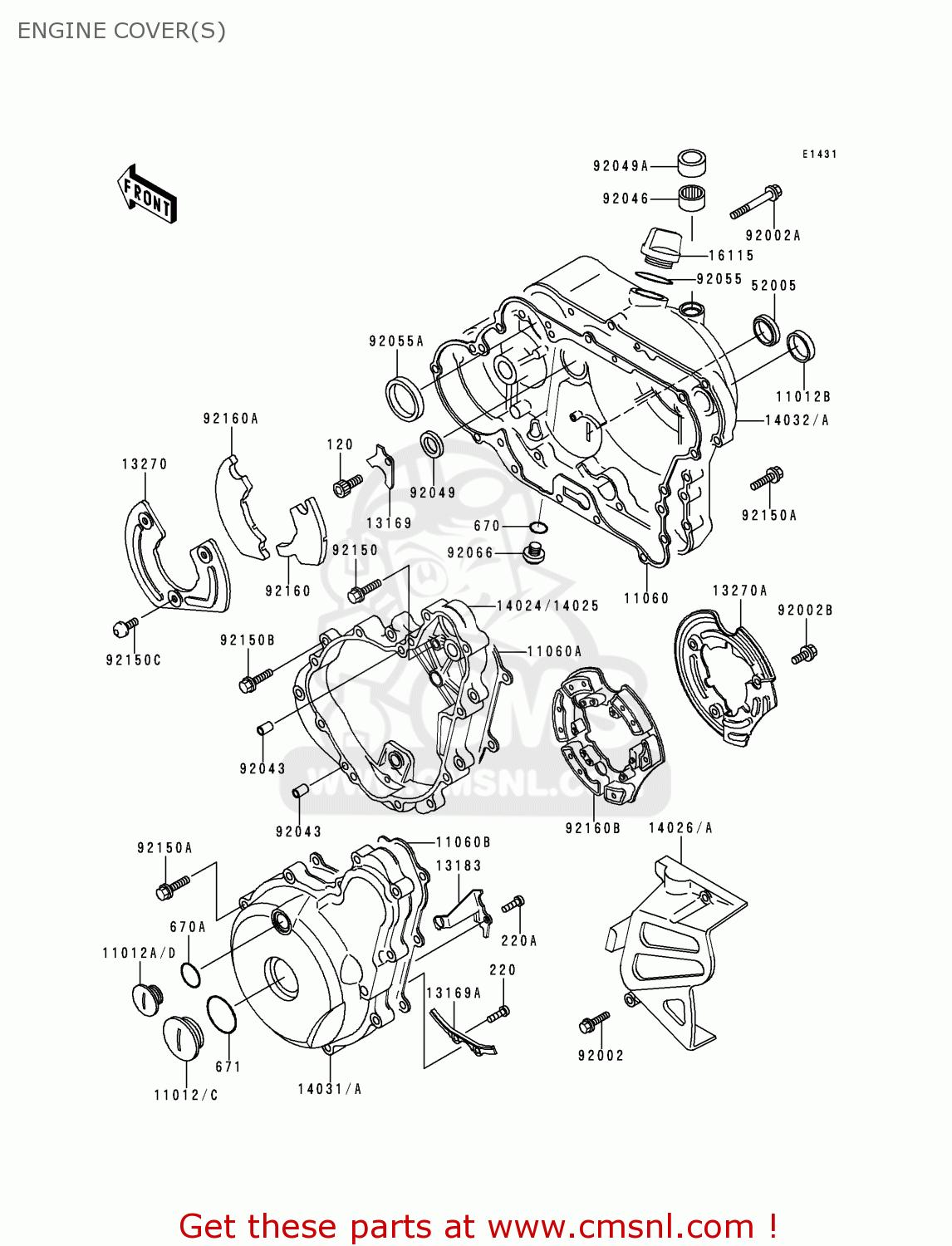

Engine cover(s) diagram KL650A11 KLR650 1997 USA CALIFORNIA CANADA

ENGINE COVER(S) KL650A11 KLR650 1997 USA CALIFORNIA CANADA
ENGINE COVER(S) KL650A11 KLR650 1997 USA CALIFORNIA CANADA
ENGINE COVER(S) KL650A11 KLR650 1997 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012B
110121567
ref: 11012B
CAP
110121567
€ 6.50
11012C
110121693
ref: 11012C
CAP
110121693
€ 5.50
11012D
110121694
ref: 11012D
CAP,TOP MARK
110121694
€ 4.50
11060
110601111
ref: 11060
GASKET, CLUTCH COVER (NAS)
110601111
€ 23.00
11060A
110601692
ref: 11060A
GASKET,GENERATOR CASE (NAS)
110601692
€ 18.00
11060B
110601693
ref: 11060B
GASKET,GENERATOR COVE (NAS)
110601693
€ 18.00
13169
131691735
ref: 13169
PLATE,OIL SEAL
131691735
€ 4.00
13169A
131691882
ref: 13169A
PLATE,PULSING COIL LE
131691882
€ 6.00
13183
131831144
ref: 13183
PLATE,GENERATOR
131831144
€ 6.50
13270
132701438
ref: 13270
PLATE
132701438
€ 9.00
13270A
132701667
ref: 13270A
PLATE
132701667
€ 13.50
14024
140241773
ref: 14024
COVER,GENERATOR CASE
€ 126.50
14026
140261225
ref: 14026
COVER-CHAIN
140261225
€ 55.50
14031A
140311305
ref: 14031A
COVER-GENERATOR
140311305
€ 126.00
14032A
140321488
ref: 14032A
COVER-CLUTCH
€ 451.00
16115
161151009
ref: 16115
CAP-OIL FILLER
161151009
€ 10.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
92002
920021086
ref: 92002
BOLT,6X25
920021086
€ 3.50
92002A
920021568
ref: 92002A
BOLT,6X80
920021568
€ 4.00
92002B
920021944
ref: 92002B
BOLT,6X8
920021944
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
920461010
€ 17.00
92049
920491158
ref: 92049
SEAL-OIL,SCY 15X30X7
920491158
€ 16.50
92049A
920491271
ref: 92049A
SEAL, OIL
920491271
€ 7.00
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
920551221
ref: 92055A
RING-O,62.6X66X3.1
920551221
€ 6.00
92066
920661156
ref: 92066
PLUG,DRAIN
920661156
€ 9.50
92150
921501010
ref: 92150
BOLT,6X20
921501010
€ 2.00
92150A
921501021
ref: 92150A
BOLT,6X30
921501021
€ 2.50
92150B
921501779
ref: 92150B
BOLT,6X25
921501779
€ 2.50
92150C
921501902
ref: 92150C
BOLT,6X7
€ 1.50
92160
921601608
ref: 92160
DAMPER
€ 8.00
92160A
921601609
ref: 92160A
DAMPER
€ 8.00
92160B
921601763
ref: 92160B
DAMPER
921601763
€ 25.50
120
120P0610
ref: 120
BOLT-SOCKET,6X10
120P0610
€ 1.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
220B0510
€ 0.50
220A
220B0612
ref: 220A
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
670
670B2011
ref: 670
O RING,11MM
670B2011
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
671
671B2540
ref: 671
O RING,40MM
671B2540
€ 4.00
