SWINGARM

KL650A10 KLR650 1996 USA CALIFORNIA CANADA

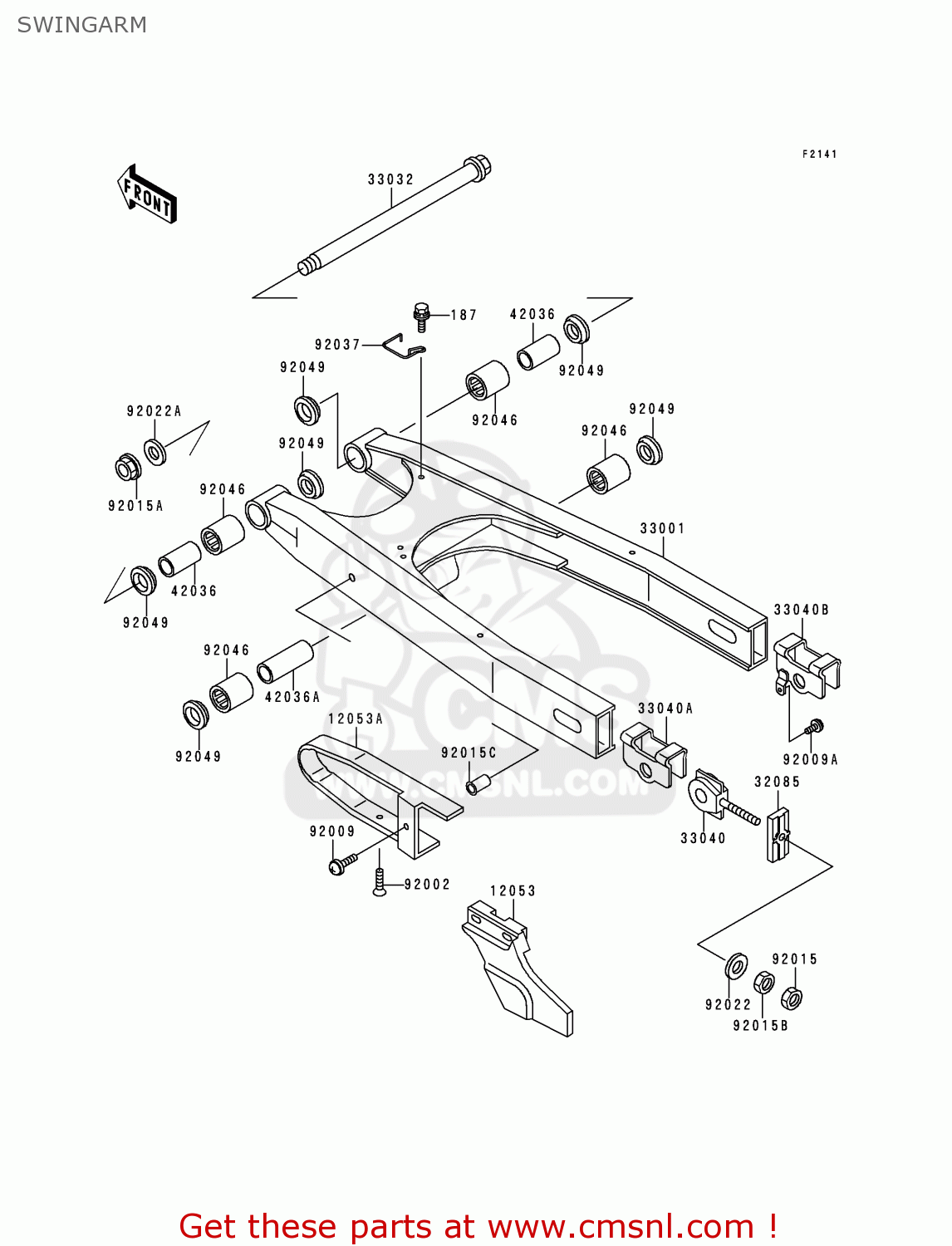

Swingarm diagram KL650A10 KLR650 1996 USA CALIFORNIA CANADA

SWINGARM KL650A10 KLR650 1996 USA CALIFORNIA CANADA
SWINGARM KL650A10 KLR650 1996 USA CALIFORNIA CANADA
SWINGARM KL650A10 KLR650 1996 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
187
187D0616
ref: 187
BOLT-UPSET-WSP
€ 0.50
12053
120531104
ref: 12053
GUIDE-CHAIN,RR
120531104
€ 46.00
12053A
120531360
ref: 12053A
GUIDE-CHAIN,DRIVE,FR
120531360
€ 37.50
32085
320851256
ref: 32085
STOPPER,CHAIN ADJUSTE
320851256
€ 16.00
33001
330011278CE
ref: 33001
ARM-COMP-SWING,SILVER
330011278CE
€ 929.00
33032
330321128
ref: 33032
SHAFT-SWING ARM
330321128
€ 56.00
33040
330401075
ref: 33040
ADJUSTER-CHAIN,INNER
330401075
€ 22.50
33040A
330401076
ref: 33040A
ADJUSTER-CHAIN,OUTER
330401076
€ 27.00
33040B
330401078
ref: 33040B
ADJUSTER-CHAIN,OUTER
330401078
€ 23.50
42036
420361204
ref: 42036
SLEEVE,15X20X47.5
420361204
€ 12.50
42036A
420361205
ref: 42036A
SLEEVE,15X20X82
420361205
€ 18.50
92002
920021775
ref: 92002
BOLT,DISC PLATE,6MM
920021775
€ 2.50
92009
920091181
ref: 92009
SCREW,6X18
920091181
€ 2.00
92009A
920091651
ref: 92009A
SCREW
920091651
€ 2.50
92015
920151364
ref: 92015
NUT,8MM
920151364
€ 2.50
92015A
920151459
ref: 92015A
NUT,14MM
920151459
€ 6.50
92015B
920151658
ref: 92015B
NUT,FLANGED,8MM
920151658
€ 3.00
92015C
920151796
ref: 92015C
NUT,CRIMP 6MM
920151796
€ 3.00
92022
920221582
ref: 92022
WASHER,8.5X16X1.2
€ 0.50
92022A
920221701
ref: 92022A
WASHER
920221701
€ 3.00
92037
920371902
ref: 92037
CLAMP,HOSE
920371902
€ 4.50
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
920461110
€ 22.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
920491109
€ 6.50
