TURN SIGNALS
KL500-B1 TENGAI 1989 AR NR

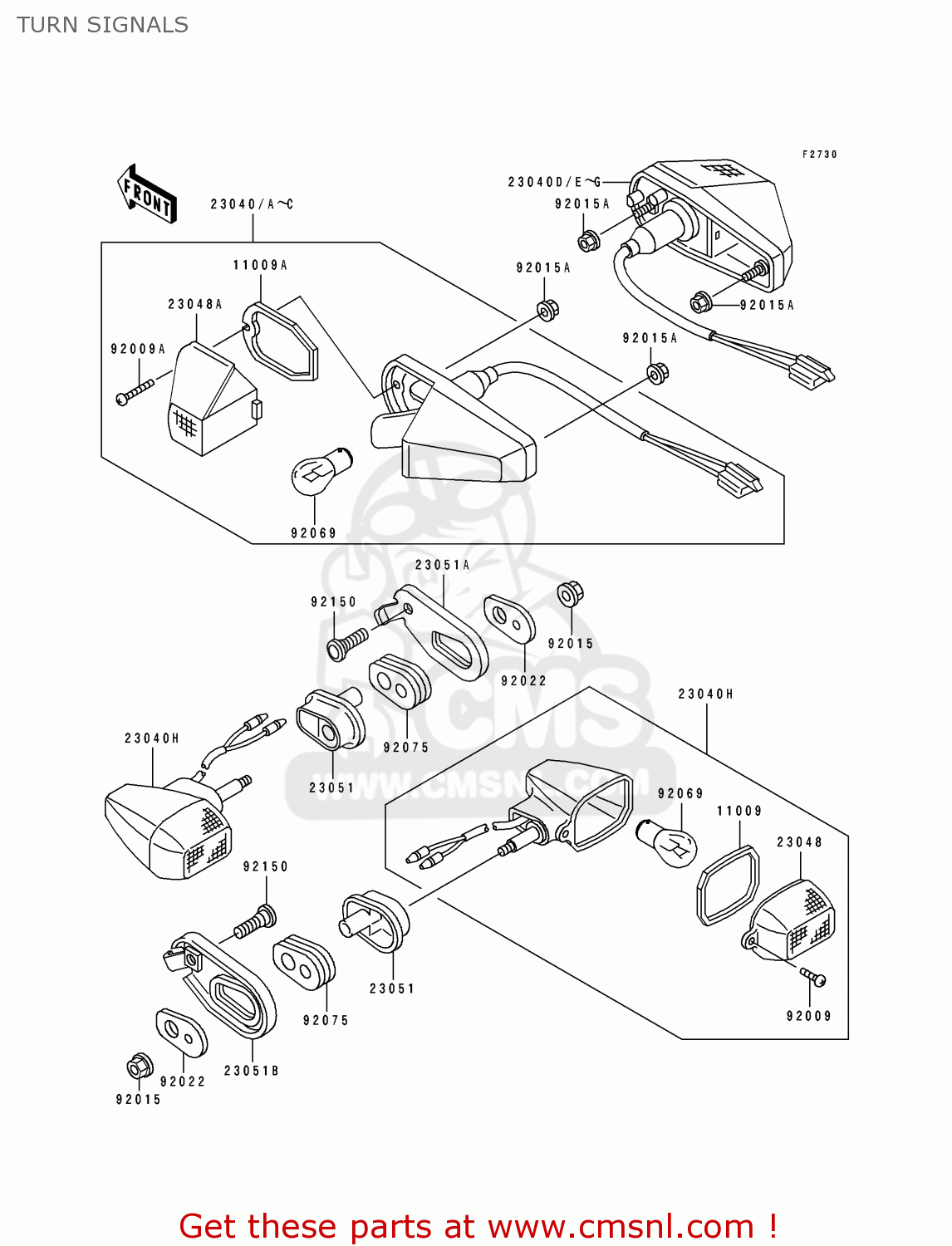

Turn signals diagram KL500-B1 TENGAI 1989 AR NR
TURN SIGNALS KL500-B1 TENGAI 1989 AR NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091576
ref: 11009
GASKET,SIGNAL LAMP (NAS)
€ 4.50
11009A
110091620
ref: 11009A
GASKET,SIGNAL LAMP (NAS)
€ 2.50
23040A
230401199EM
ref: 23040A
LAMP-SIGNAL,FR,LH,M.Z
€ 40.50
23040C
230401199R1
ref: 23040C
LAMP-SIGNAL,FR,LH,P.A
€ 22.50
23040E
230401200EM
ref: 23040E
LAMP-SIGNAL,FR,RH,M.Z
€ 35.50
23040G
230401200R1
ref: 23040G
LAMP-SIGNAL,FR,RH,P.A
€ 30.50
23040H
230401201
ref: 23040H
LAMP-SIGNAL
€ 56.00
23048
230481068
ref: 23048
LENS-SIGNAL LAMP
€ 12.00
23048A
230481083
ref: 23048A
LENS-SIGNAL LAMP
€ 10.50
23051
230511168
ref: 23051
BRACKET-SIGNAL LAMP,R
€ 16.00
23051A
230511205
ref: 23051A
BRACKET-SIGNAL LAMP,R
€ 8.00
23051B
230511206
ref: 23051B
BRACKET-SIGNAL LAMP,R
€ 9.00
92009
920091142
ref: 92009
SCREW,TAPPING,4X12
€ 3.00
92009A
920091297
ref: 92009A
SCREW,TAPPING,4X20
€ 2.50
92015
920151237
ref: 92015
NUT,FLANGED,6MM,BLACK
€ 3.50
92015A
920151259
ref: 92015A
NUT,FLANGED,5MM
€ 2.50
92022
920221672
ref: 92022
WASHER,SIGNAL LAMP
€ 3.50
92069
ref: 92069
92075
920751698
ref: 92075
DAMPER,SIGNAL LAMP
€ 6.00
92150
921501151
ref: 92150
BOLT,8MM
€ 3.00
