STEP
KL250D8 KLR250 1991 USA CALIFORNIA CANADA

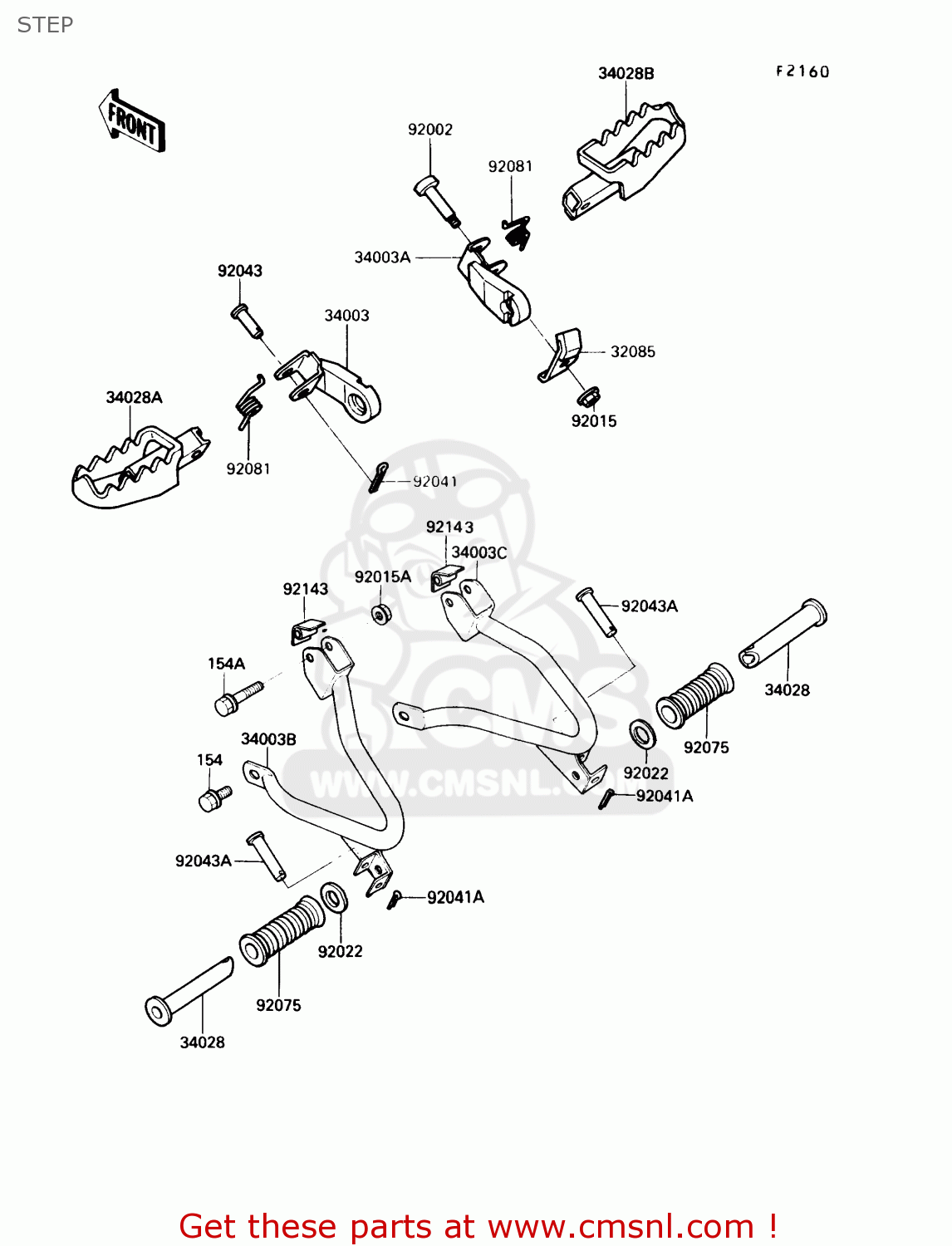

Step diagram KL250D8 KLR250 1991 USA CALIFORNIA CANADA
STEP KL250D8 KLR250 1991 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
154
154N0818
ref: 154
BOLT-WP-SMALL,8X18
€ 2.50
154A
154N0840
ref: 154A
BOLT-WP-SMALL,8X40
€ 3.50
32085
320851178
ref: 32085
STOPPER,KICK PEDAL
€ 14.50
34003
340031218
ref: 34003
HOLDER-STEP,FR,LH
€ 27.50
34003A
340031219
ref: 34003A
HOLDER-STEP,FR,RH
€ 23.00
34003B
340031288
ref: 34003B
HOLDER-STEP,RR,LH
€ 50.00
34003C
340031289
ref: 34003C
HOLDER-STEP,RR,RH
€ 16.00
34028
34028009
ref: 34028
BAR-REAR FOOTREST
€ 24.00
34028A
340281154
ref: 34028A
STEP,FR,LH
€ 26.50
34028B
340281155
ref: 34028B
STEP,FR,RH
€ 26.50
92002
920021193
ref: 92002
BOLT
€ 4.00
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151406
ref: 92015A
NUT,8MM
€ 3.00
92022
920221568
ref: 92022
WASHER,20X30X2.3
€ 2.50
92041
920411051
ref: 92041
COTTER
€ 3.00
92041A
920411052
ref: 92041A
COTTER
€ 1.00
92043
92043080
ref: 92043
PIN-FOOTREST BAR FIT
€ 3.50
92043A
920431464
ref: 92043A
PIN
€ 5.50
92075
92076020
ref: 92075
DAMPER
€ 7.50
92081
920811133
ref: 92081
SPRING,FOOTREST STEP
€ 4.00
92143
921431080
ref: 92143
COLLAR,STEP HOLDER
€ 7.00
