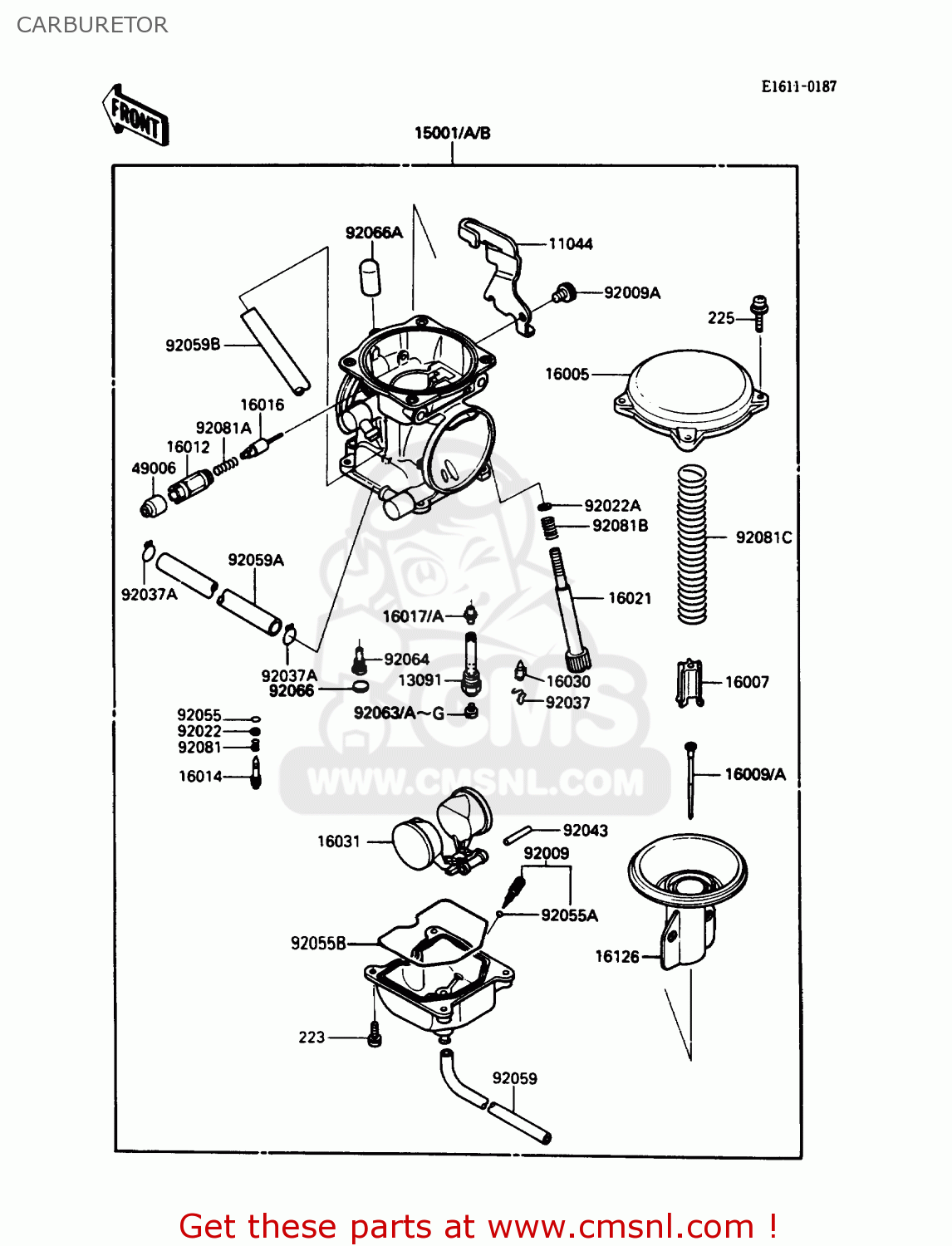

CARBURETOR

ref

part #

description

quantity

11044

110441061
ref: 11044

BRACKET,THROTTLE CABL

€ 44.00

13091

130911259
ref: 13091

HOLDER,NEEDLE JET

€ 19.00

15001

150011099
ref: 15001
CN

CARBURETOR-ASSY

€ 393.50

15001A

150011121
ref: 15001A
US

CARBURETOR-ASSY

€ 527.00

15001B

150011122
ref: 15001B
CA

CARBURETOR ASSEMBLY

€ 296.00

16005

160051057
ref: 16005

TOP-CHAMBER,MIXING,27

€ 30.50

16007

160071117
ref: 16007

SEAT-SPRING,THROTTLE

€ 16.50

16009

160091253
ref: 16009
CN

NEEDLE-JET,N31A

€ 19.00

16009A

160091255
ref: 16009A
CAUS

JET,NEEDLE,#N31C

€ 20.50

16012

160121055
ref: 16012

CAP-STARTER PLUNGER

€ 17.50

16014

160141029
ref: 16014

SCREW-PILOT AIR

€ 13.50

16016

160161065
ref: 16016

PLUNGER,STARTER

€ 40.50

16017

160171265
ref: 16017
CAUS

JET,NEEDLE

€ 37.00

16017A

160171266
ref: 16017A
CN

JET-NEEDLE,#6

€ 39.00

16021

160211109
ref: 16021

SCREW-THROTTLE STOP

€ 31.50

16030

160301007
ref: 16030

FLOAT VALVE ASSY

€ 37.00

16031

160311056
ref: 16031

FLOAT

€ 39.00

16126

161261163
ref: 16126

VALVE,VACUUM

€ 157.50

49006

490061165
ref: 49006

BOOT,STARTER PLUNGER

€ 6.50

92009

920091095
ref: 92009

SCREW,DRAIN

€ 10.00

92009A

920091365
ref: 92009A

SCREW

€ 4.50

92022

920221003
ref: 92022

WASHER,PLAIN

€ 2.50

92022A

920221587
ref: 92022A

WASHER,THROTTLE STOP

€ 3.00

92037

16044007
ref: 92037

CLIP, FLOAT VALVE

€ 4.00

92037A

920371531
ref: 92037A

CLAMP,TUBE

€ 3.50

92043

920431207
ref: 92043

PIN,FLOAT

€ 6.00

92055

920551002
ref: 92055

O RING,PILOT ADJUST

€ 2.50

92055A

920551053
ref: 92055A

O RING,DRAIN SCREW

€ 3.00

92055B

920551222
ref: 92055B

RING-O,FLOAT CHAMBER

€ 12.50

92059

92059111
ref: 92059

HOSE,FUEL OVERFLOW

€ 17.50

92059A

920591538
ref: 92059A

TUBE,6.5X11.5X200

€ 22.50

92059B

920591539
ref: 92059B

TUBE,6.5X9.5X410

€ 23.00

92063

920631069
ref: 92063
CN

MAIN JET,2ND #125

€ 9.50

223

223C0416
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

225

225C0418
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

92063A

920631071
ref: 92063A
CAUS

JET-MAIN,#118

€ 9.50

92063B

920631071
ref: 92063B
CN

JET-MAIN,#118

€ 9.50

92063C

920631072
ref: 92063C
CN

MAIN JET 2ND #120

€ 9.50

92063D

920631072
ref: 92063D
CAUS

MAIN JET 2ND #120

€ 9.50

92063E

920631073
ref: 92063E

MAIN JET,2ND #122

€ 9.50

92063F

920631117
ref: 92063F
CAUS

JET-MAIN,#112

€ 9.50

92063G

920631118
ref: 92063G

JET-MAIN,#115

€ 9.50

92064

920641101
ref: 92064

JET-PILOT,#35

€ 11.50

92066

920661051
ref: 92066
CAUS

PLUG,PILOT AIR SCREW,

€ 3.00

92066A

92068006
ref: 92066A
CNUS

RUBBER PLUG

€ 2.50

92081

920811002
ref: 92081

SPRING,PIROT ADJ SCRW

€ 3.50

92081A

920811720
ref: 92081A

SPRING,PLUNGER

€ 7.00

92081B

920811721
ref: 92081B

SPRING,THROTTLE STOP

€ 9.00

92081C

920811826
ref: 92081C

SPRING,VACUUM VALVE

€ 16.50

all assemblies
