GEAR CHANGE DRUM/SHIFT FORK(S)

KL250D19 KLR250 2002 USA CALIFORNIA

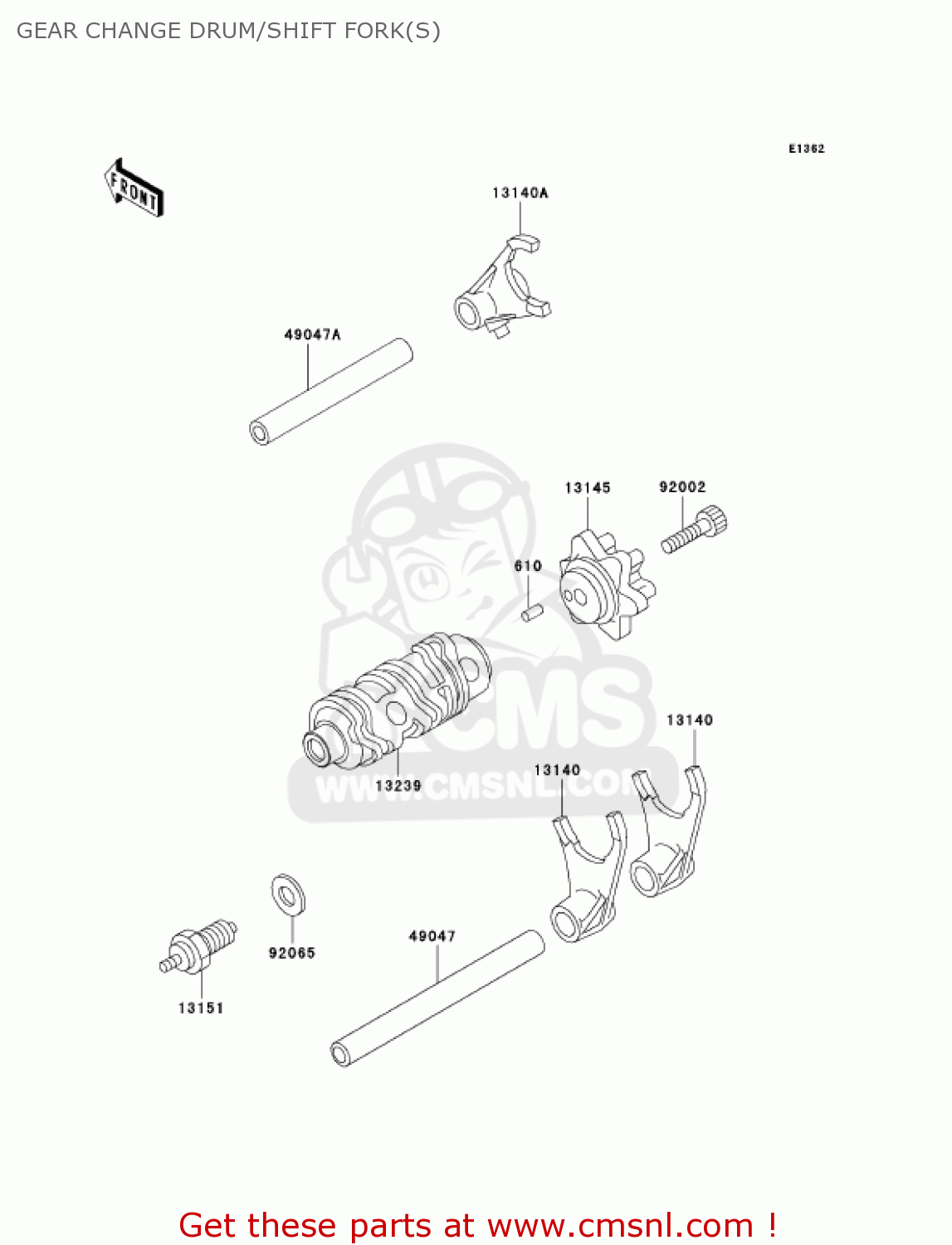

Gear change drum/shift fork(s) diagram KL250D19 KLR250 2002 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

610

610A0410
ref: 610

ROLLER,4X10

€ 2.50

13140

131401116
ref: 13140

FORK-SHIFT

€ 80.00

13140A

131401117
ref: 13140A

FORK-SHIFT

€ 68.50

13145

131451054
ref: 13145

CAM-CHANGE DRUM

€ 32.00

13151

131511080
ref: 13151

SWITCH-COMP,NEUTRAL

€ 9.00

13239

132391113
ref: 13239

DRUM-ASSY-CHANGE

€ 183.00

49047

490471056
ref: 49047

ROD-SHIFT,L=106.7

€ 16.00

49047A

490471057
ref: 49047A

ROD-SHIFT,L=71.7

€ 12.00

92002

920021696
ref: 92002

BOLT,SOCKET,6X25

€ 1.50

92065

92065058
ref: 92065

GASKET, 10,5X16X1 (NAS)

€ 2.50

GEAR CHANGE DRUM/SHIFT FORK(S)

all assemblies
