FRONT FORK
KL250D17 KLR250 2000 USA CALIFORNIA

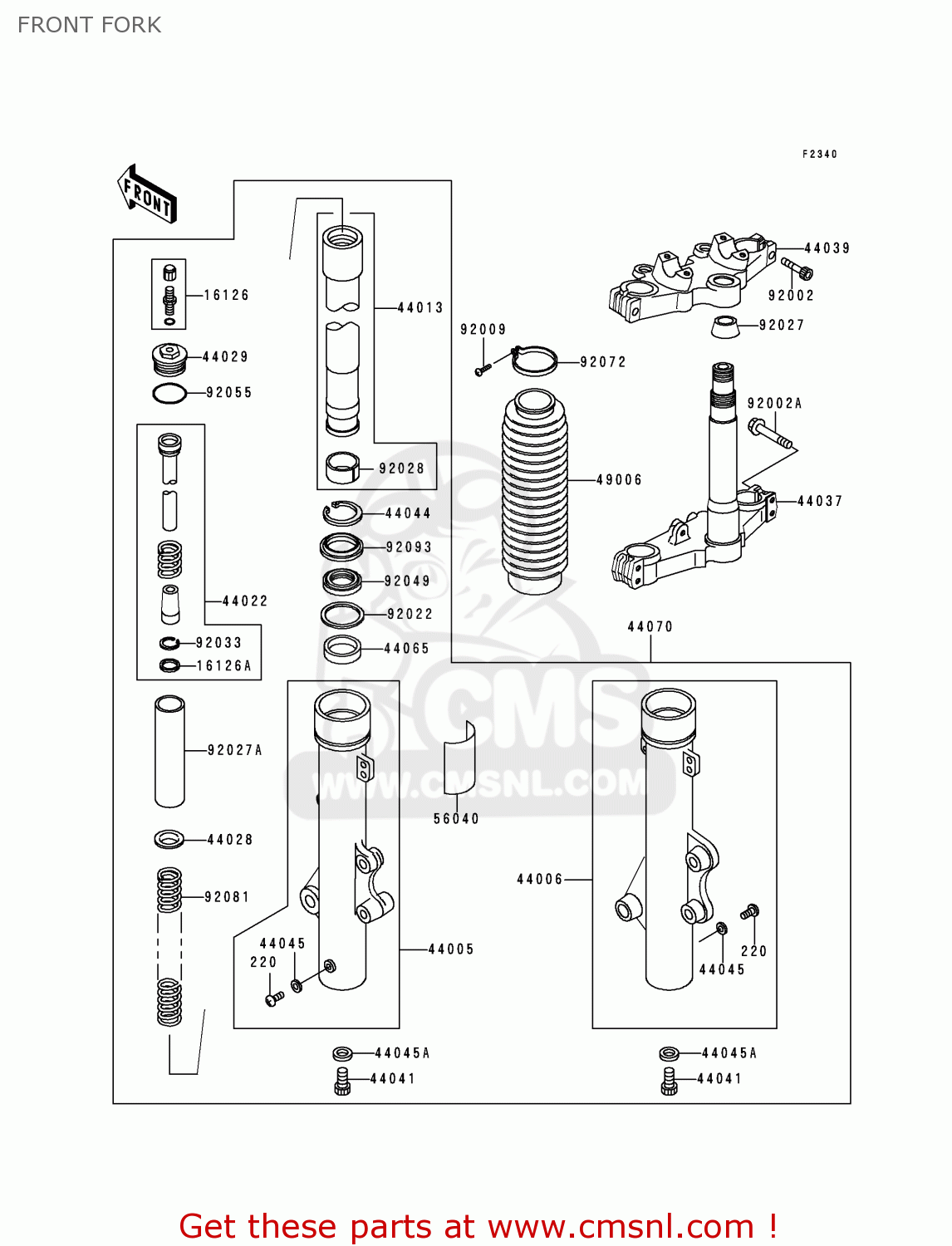

Front fork diagram KL250D17 KLR250 2000 USA CALIFORNIA
FRONT FORK KL250D17 KLR250 2000 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
16126A
161261123
ref: 16126A
VALVE,FORK CYLINDER
€ 24.50
44005
440051334
ref: 44005
PIPE-LEFT FORK OUTER
€ 423.00
44006
440061332
ref: 44006
PIPE-RIGHT FORK OUTER
€ 423.00
44013
440131224
ref: 44013
PIPE-FORK INNER
€ 197.50
44022
440221175
ref: 44022
CYLINDER-FORK
€ 167.00
44028
440281004
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291119
ref: 44029
SEAT-FORK SPRING
€ 52.50
44037
440371178
ref: 44037
HOLDER-FORK UNDER
€ 267.50
44039
440391121
ref: 44039
HOLDER-FORK UPPER
€ 199.50
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
€ 4.50
44044
44044015
ref: 44044
CIRCLIP
€ 9.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44045A
44045057
ref: 44045A
GASKET (NAS)
€ 3.00
44065
440651016
ref: 44065
BUSHING-FRONT FORK
€ 19.00
44070
440705140
ref: 44070
DAMPER-ASSY,FORK
€ 1,179.00
49006
490061009SR
ref: 49006
BOOT,FORK,S.GRAY
€ 64.50
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92002
920021277
ref: 92002
BOLT,SOCKET,8X32
€ 7.50
92002A
920021476
ref: 92002A
BOLT,FLANGED,8X40
€ 6.50
92009
920091348
ref: 92009
SCREW
€ 3.50
92022
920221275
ref: 92022
WASHER,FRONT FORK
€ 4.50
92027
920271791
ref: 92027
COLLAR,UPPER BRACKET
€ 46.00
92027A
920271872
ref: 92027A
COLLAR,L=165
€ 32.00
92028
920281354
ref: 92028
BUSHING,INNER PIPE
€ 13.00
92033
920331004
ref: 92033
RING-SNAP,FORK CYLIND
€ 5.50
92049
920491216
ref: 92049
SEAL-OIL,FORK OUTER P
€ 16.00
92055
920551051
ref: 92055
ORING,FORK TOP CAP
€ 3.50
92072
920721008
ref: 92072
BAND,BOOTS
€ 7.50
92081
920811825
ref: 92081
SPRING,FRONT FORK
€ 44.00
92093
920931181
ref: 92093
SEAL,FORK OUTER PIPE
€ 14.00
