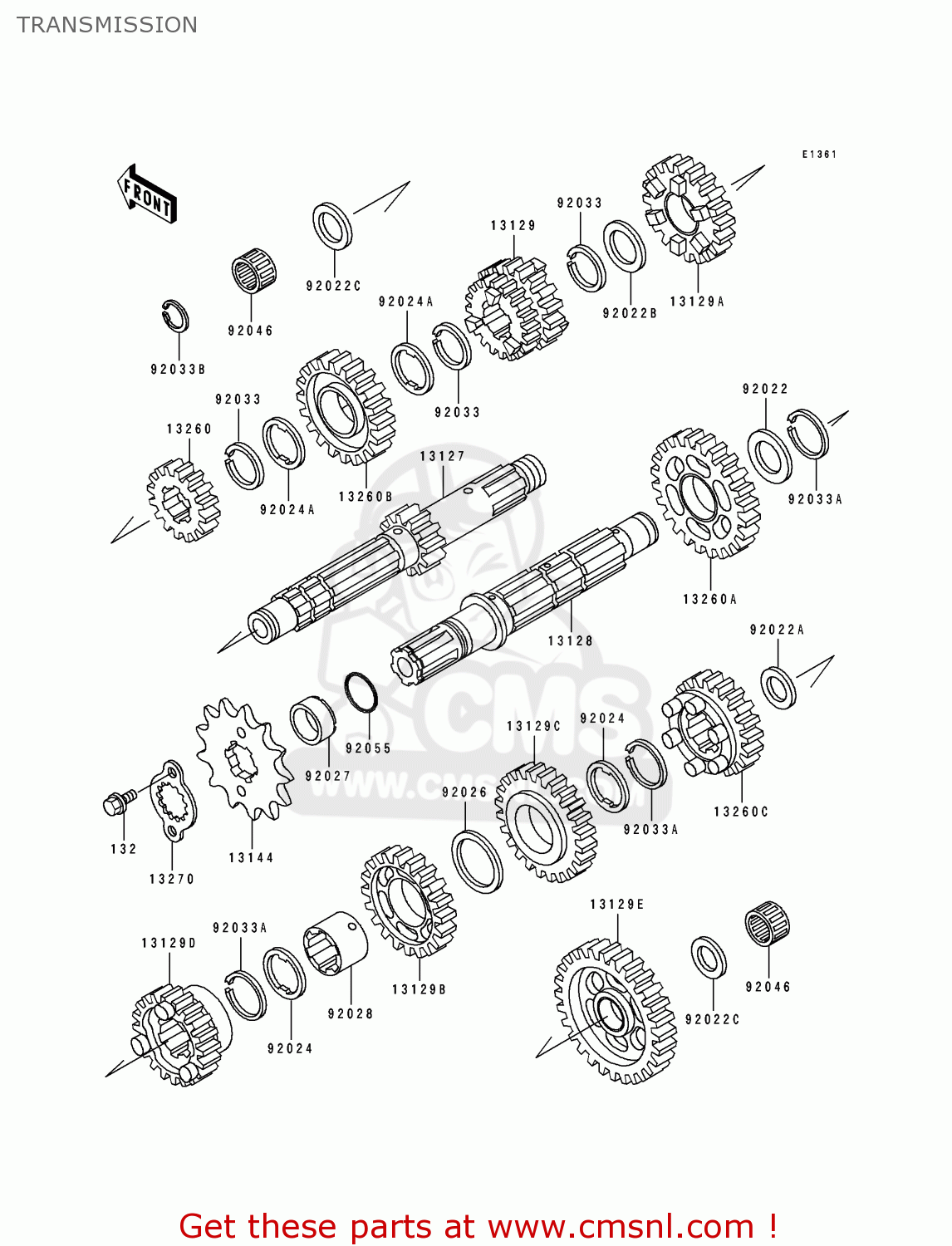

TRANSMISSION

ref

part #

description

quantity

132

132G0608
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

13127

131271121
ref: 13127

SHAFT-TRANSMISSION IN

€ 161.50

13128

131281139
ref: 13128

SHAFT-TRANSMISSION OU

€ 167.50

13129

131291602
ref: 13129

GEAR,INPUT 3RD&4TH,18

€ 124.00

13129A

131291603
ref: 13129A

GEAR,INPUT 5TH,20T

€ 107.00

13129B

131291650
ref: 13129B

GEAR,OUTPUT 3RD,27T

€ 106.50

13129C

131291651
ref: 13129C

GEAR,OUTPUT 4TH,25T

€ 107.00

13129D

131291653
ref: 13129D

GEAR,OUTPUT TOP,19T

€ 95.50

13129E

131291800
ref: 13129E

GEAR,OUTPUT LOW,30T

€ 119.50

13144

131441103
ref: 13144

SPROCKET-OUTPUT,15T

€ 36.00

13260

132601385
ref: 13260

GEAR,INPUT 2ND,15T

€ 107.00

13260A

132601386
ref: 13260A

GEAR,OUTPUT 2ND,30T

€ 106.50

13260B

132601595
ref: 13260B

GEAR,INPUT TOP,21T

€ 59.00

13260C

132601596
ref: 13260C

GEAR,OUTPUT 5TH,21T

€ 107.00

13270

132701060
ref: 13270

PLATE,SPROCKET

€ 5.50

92022

92022159
ref: 92022

WASHER-THRUST,25MM

€ 5.50

92022A

920221614
ref: 92022A

WASHER,17.3X25X0.5

€ 2.50

92022B

92022198
ref: 92022B

WASHER-PLAIN

€ 3.50

92022C

92022255
ref: 92022C

WASHER

€ 5.50

92024

92024038
ref: 92024

WASHER-LOCK

€ 4.00

92024A

92024039
ref: 92024A

WASHER-LOCK

€ 4.00

92026

92026079
ref: 92026

WASHER,30X38X1

€ 6.00

92027

920271800
ref: 92027

COLLAR

€ 19.50

92028

920281016
ref: 92028

BUSHING,OUTPUT SHAFT

€ 21.00

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

92033026
ref: 92033A

CIRCLIP

€ 6.00

92033B

92033032
ref: 92033B

CIRCLIP

€ 3.00

92046

920461156
ref: 92046

BEARING-NEEDLE,K17X25

€ 26.00

92055

920551293
ref: 92055

RING-O, 21.5MM

€ 3.00

all assemblies
