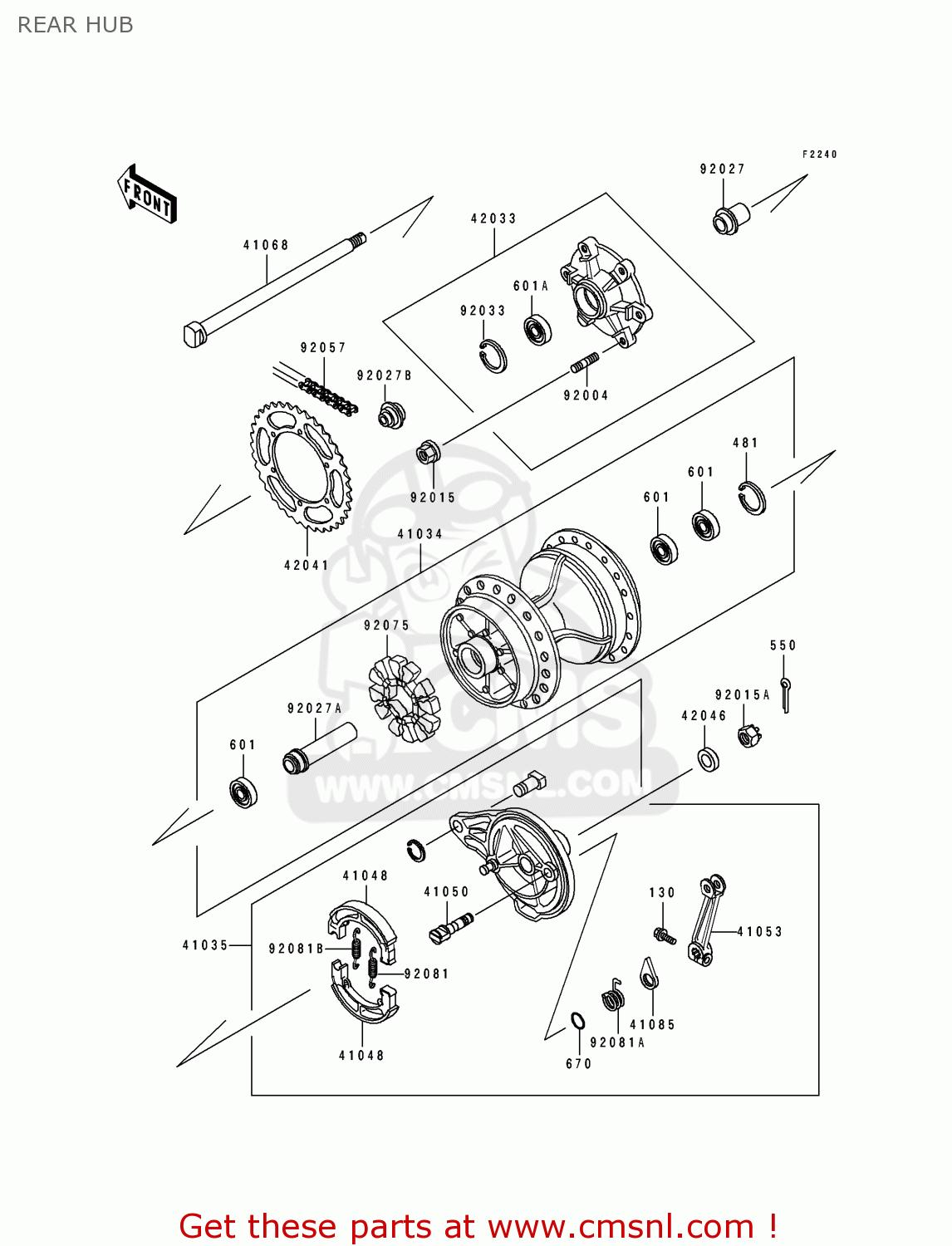

REAR HUB

ref

part #

description

quantity

130

130G0625
ref: 130

BOLT,FLANGED,6X25

€ 0.50

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6003UG
ref: 601

BEARING-BALL #6003UC3

€ 17.00

601A

601B6004UG
ref: 601A

BEARING-BALL,#6004U

€ 27.50

670

670B2015
ref: 670

O RING,15MM

€ 1.00

41034

410341113
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 482.50

41035

410351289
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 451.50

41048

410481084
ref: 41048

SHOE-BRAKE (NAS)

€ 26.00

41050

410501058
ref: 41050

CAM-BRAKE

€ 33.50

41053

410531061
ref: 41053

LEVER-BRAKE CAM

€ 69.50

41068

410681178
ref: 41068

AXLE,RR

€ 56.50

41085

41085005
ref: 41085

INDICATOR,FRONT BRAK

€ 9.00

42033

420331111
ref: 42033

COUPLING-ASSY,REAR HU

€ 205.50

42041

420411191
ref: 42041

SPROCKET-HUB,44T

€ 36.00

42046

42046009
ref: 42046

WASHER-SLEEVE

€ 5.00

92004

920041149
ref: 92004

STUD,8X18

€ 4.00

92015

920151668
ref: 92015

NUT

€ 3.00

92015A

920151947
ref: 92015A

NUT

€ 6.50

92027

920271770
ref: 92027

COLLAR,REAR HUB COUPL

€ 14.50

92027A

920271823
ref: 92027A

COLLAR,REAR BRAKE DRU

€ 12.00

92027B

920271826
ref: 92027B

COLLAR,REAR HUB COUPL

€ 26.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92057

920571181
ref: 92057

CHAIN,DRIVE,EK520L-OX

€ 107.00

92075

920751068
ref: 92075

DAMPER,SHOCK,RR HUB

€ 34.50

92081

920811550
ref: 92081

SPRING,BRAKE SHOE

€ 6.00

92081A

920811615
ref: 92081A

SPRING,BRAKE CAM LEVE

€ 13.00

92081B

920811766
ref: 92081B

SPRING,BRAKE SHOE

€ 5.50
