ENGINE COVER(S)

KL250D11 KLR250 1994 UNITED KINGDOM EU NL GR

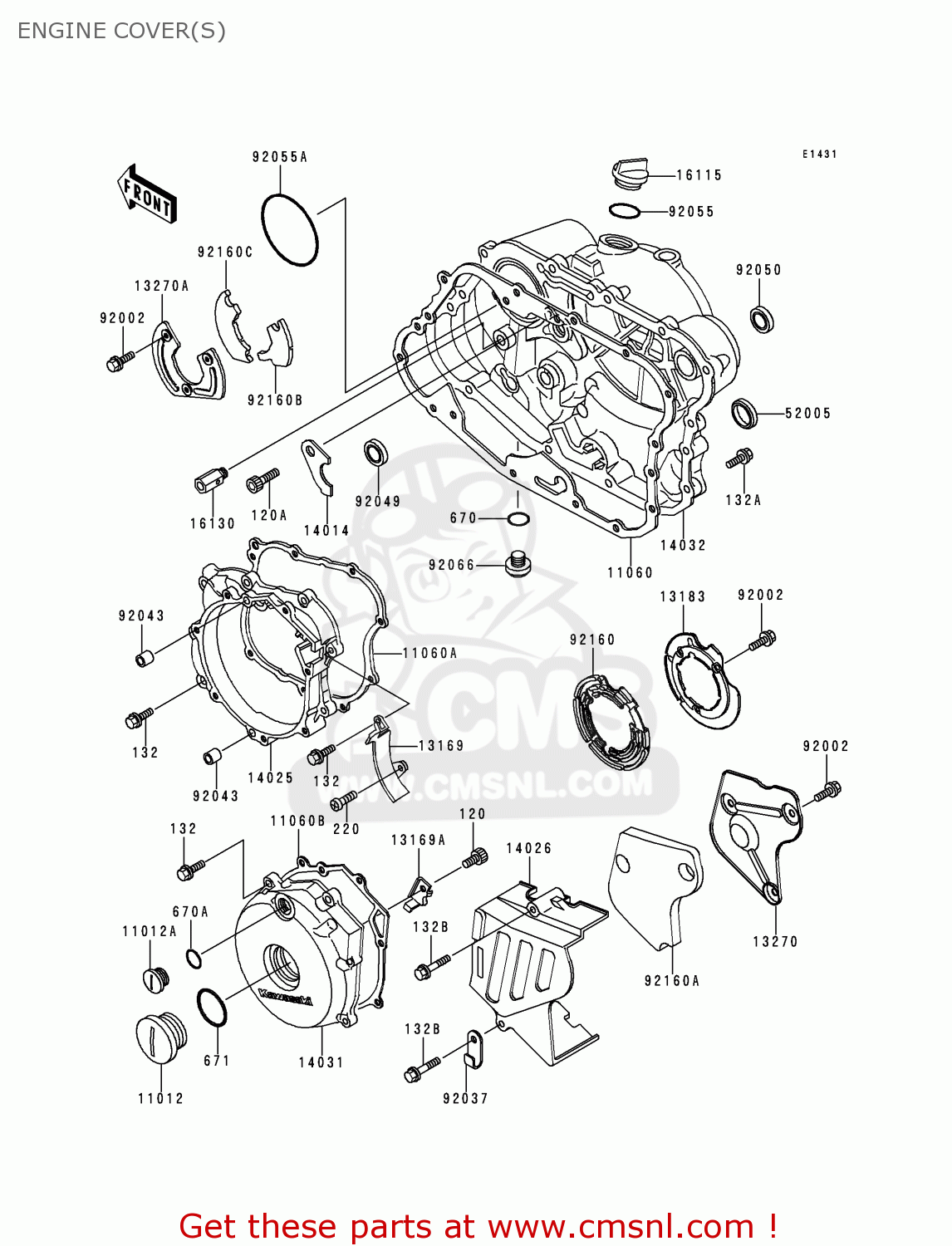

Engine cover(s) diagram KL250D11 KLR250 1994 UNITED KINGDOM EU NL GR

ENGINE COVER(S) KL250D11 KLR250 1994 UNITED KINGDOM EU NL GR
ENGINE COVER(S) KL250D11 KLR250 1994 UNITED KINGDOM EU NL GR
ENGINE COVER(S) KL250D11 KLR250 1994 UNITED KINGDOM EU NL GR
prices are in EUR
ref
part #
description
quantity
120
120P0608
ref: 120
BOLT-SOCKET
€ 1.50
120A
120P0610
ref: 120A
BOLT-SOCKET,6X10
120P0610
€ 1.00
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
132J0625
€ 2.50
132A
132J0630
ref: 132A
BOLT-FLANGED-SMALL
132J0630
€ 2.50
132B
132J0645
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
220
220B0608
ref: 220
SCREW-PAN HEAD,6X8
220B0608
€ 0.50
670
670B2011
ref: 670
O RING,11MM
670B2011
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
671
671B2540
ref: 671
O RING,40MM
671B2540
€ 4.00
11012
110121362
ref: 11012
CAP
110121362
€ 6.00
11012A
110121363
ref: 11012A
CAP,TOP MARK
110121363
€ 4.00
11060
110601127
ref: 11060
GASKET,CLUTCH COVER (NAS)
110601127
€ 28.50
11060A
110601128
ref: 11060A
GASKET,GENERATOR CASE (NAS)
110601128
€ 18.50
11060B
110601129
ref: 11060B
GASKET,GENERATOR COVE (NAS)
110601129
€ 12.50
13169
131691879
ref: 13169
PLATE
131691879
€ 11.50
13169A
131691880
ref: 13169A
PLATE,GENERATOR LEAD
131691880
€ 6.00
13183
131831397
ref: 13183
PLATE,SOUND ARRESTER
€ 18.00
13270
132701343
ref: 13270
PLATE
€ 16.00
13270A
132701438
ref: 13270A
PLATE
132701438
€ 9.00
14014
140141062
ref: 14014
PLATE-POSITION
€ 5.50
14025
140251911
ref: 14025
COVER,GENERATOR CASE
140251911
€ 108.50
14026
140261148
ref: 14026
COVER-CHAIN
€ 42.00
14031
140311238
ref: 14031
COVER-GENERATOR
140311238
€ 174.50
14032
140321277
ref: 14032
COVER-CLUTCH
€ 280.00
16115
161151009
ref: 16115
CAP-OIL FILLER
161151009
€ 10.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 28.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
92002
920021944
ref: 92002
BOLT,6X8
920021944
€ 3.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92049
920491191
ref: 92049
SEAL-OIL
920491191
€ 16.00
92050
92050078
ref: 92050
OIL SEAL
92050078
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
920551221
ref: 92055A
RING-O,62.6X66X3.1
920551221
€ 6.00
92066
920661156
ref: 92066
PLUG,DRAIN
920661156
€ 9.50
92160
921601133
ref: 92160
DAMPER,SOUND ARRESTER
€ 39.00
92160A
921601551
ref: 92160A
DAMPER
€ 26.00
92160B
921601608
ref: 92160B
DAMPER
€ 8.00
92160C
921601609
ref: 92160C
DAMPER
€ 8.00
