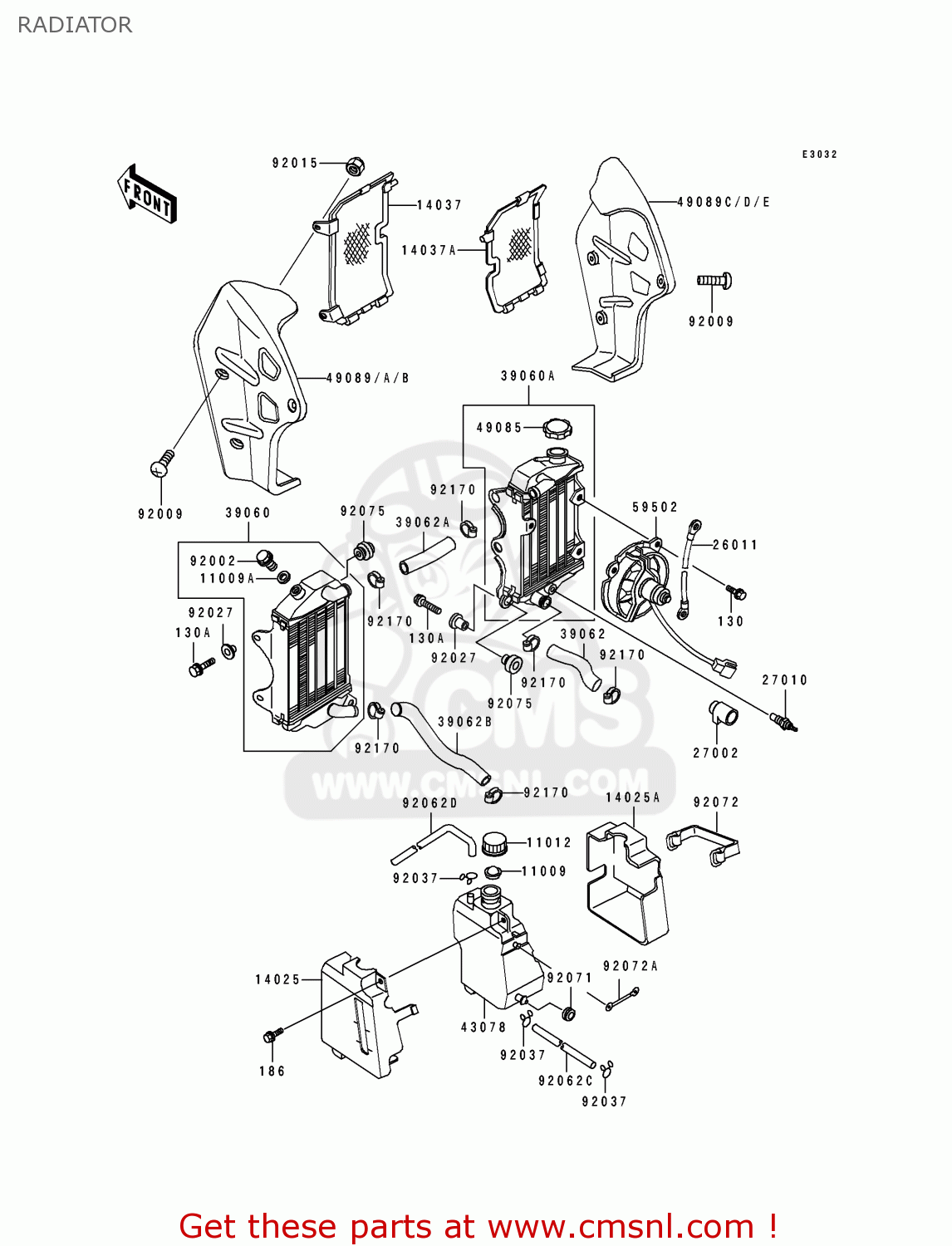

RADIATOR

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

130A

130J0620
ref: 130A

BOLT-FLANGED,6X20

€ 2.50

186

186J0618
ref: 186

BOLT-UPSET-WP

€ 2.50

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11009A

110091152
ref: 11009A

GASKET,DRAIN BOLT (NAS)

€ 4.50

11012

110121084
ref: 11012

CAP

€ 1.50

14025

140251991
ref: 14025

COVER,RESERVOIR

€ 28.00

14025A

140251992
ref: 14025A

COVER,RESERVOIR

€ 17.50

14037

140371061
ref: 14037

SCREEN,LH

€ 46.50

14037A

140371062
ref: 14037A

SCREEN,RH

€ 49.00

26011

260111278
ref: 26011

WIRE-LEAD

€ 4.00

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27010

270101180
ref: 27010

SWITCH,FAN

€ 104.50

39060

390601060
ref: 39060

RADIATOR,LH

€ 707.50

39060A

390601061
ref: 39060A

RADIATOR,RH

€ 707.50

39062

390621083
ref: 39062

HOSE-COOLING

€ 20.50

39062A

390621084
ref: 39062A

HOSE-COOLING

€ 12.50

39062B

390621085
ref: 39062B

HOSE-COOLING

€ 24.00

39062C

390621086
ref: 39062C

HOSE-COOLING

€ 12.00

39062D

390621132
ref: 39062D

HOSE-COOLING

€ 12.00

43078

430781061
ref: 43078

RESERVOIR,TANK

€ 30.00

49085

490851067
ref: 49085

CAP-ASSY-PRESSURE

€ 39.50

49089B

4908910576F
ref: 49089B

SHROUD-ENGINE,LH,P.WH

€ 36.50

49089E

4908910586F
ref: 49089E

SHROUD-ENGINE,RH,P.WH

€ 36.50

59502

595021052
ref: 59502

FAN-ASSY

€ 515.50

92002

920021682
ref: 92002

BOLT,RADIATOR DRAIN

€ 13.50

92009

920091287
ref: 92009

SCREW,6X14

€ 1.50

92015

920151170
ref: 92015

NUT,CAP 6MM,BLACK

€ 0.50

92027

920271183
ref: 92027

COLLAR,6.5X10X14.1

€ 3.50

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92071

920711115
ref: 92071

GROMMET,RESERVOIR TAN

€ 3.50

92072

92072053
ref: 92072

BAND-SPARK PLUG COVER

€ 8.50

92072A

920721156
ref: 92072A

BAND,L=58

€ 3.50

92075

920751352
ref: 92075

DAMPER,RADIATOR

€ 4.00

92170

921701033
ref: 92170

CLAMP,COOLING HOSE

€ 10.50

all assemblies
