CAMSHAFT/CHAIN/TENSIONER
KL250A3 KLR250 1980 CANADA

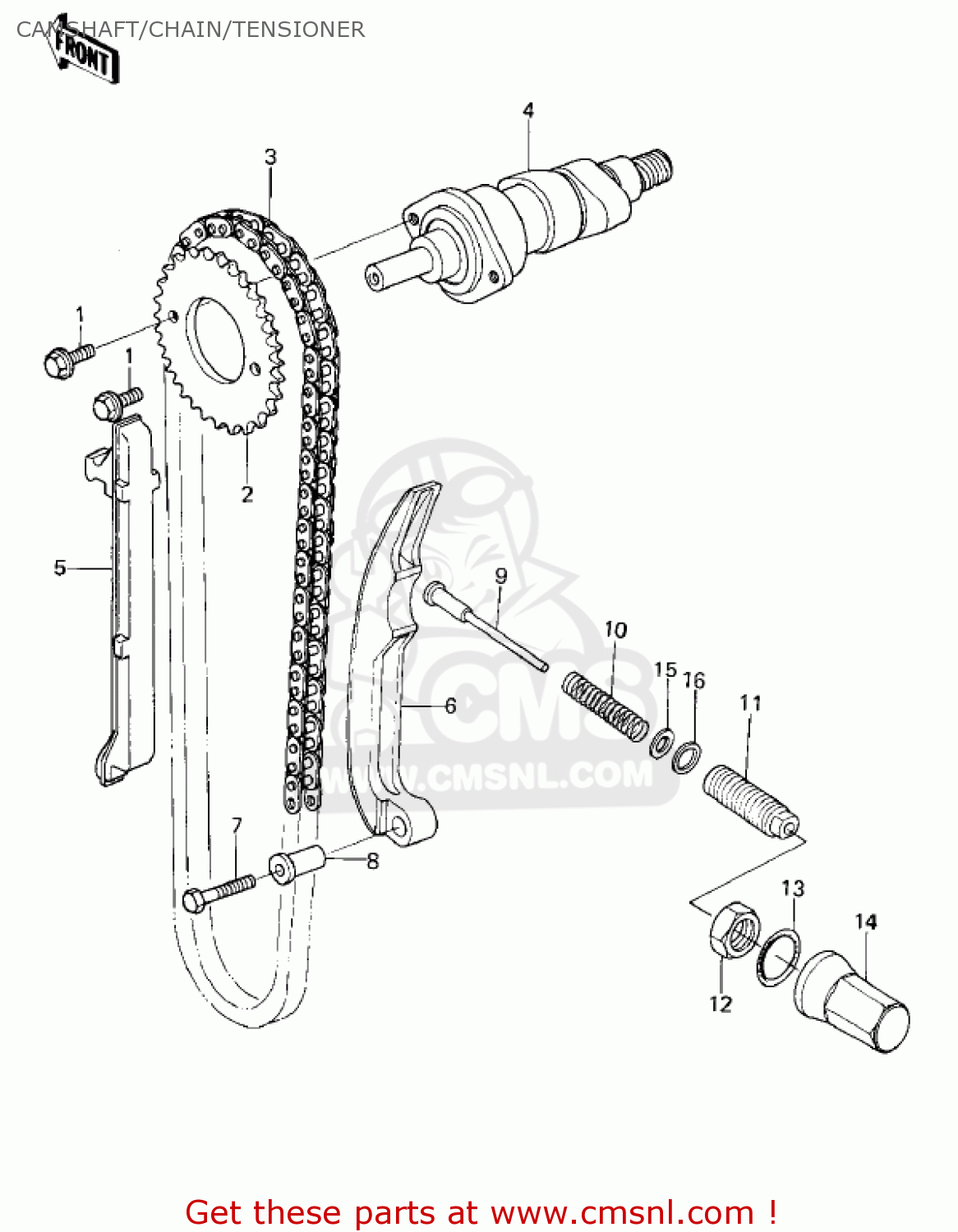

Camshaft/chain/tensioner diagram KL250A3 KLR250 1980 CANADA
CAMSHAFT/CHAIN/TENSIONER KL250A3 KLR250 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92003208
ref: 1
BOLT,SPROCKET FITTING
€ 2.50
2
120461007
ref: 2
KL250-A1
SPROCKET,CAM SHAFT
€ 64.00
2
120461007
ref: 2
KL250-A1A~
SPROCKET,CAM SHAFT
€ 64.00
3
21070013
ref: 3
CHAIN,CAMSHAFT,BF05TX
€ 118.50
4
120441040
ref: 4
CAMSHAFT-VALVE
€ 204.50
5
12053023
ref: 5
GUIDE-CHAIN,CAM
€ 22.00
6
12053024
ref: 6
GUIDE-CHAIN,CAM
€ 33.00
7
112G0630
ref: 7
BOLT-UPSET
€ 1.00
8
92027155
ref: 8
COLLAR,L=17.6
€ 4.50
9
131161003
ref: 9
ROD, PUSH
€ 3.50
10
92081131
ref: 10
SPRING,CHN TENSIONER
€ 13.50
11
920011271
ref: 11
GUIDE,PUSH ROD
€ 32.00
12
92016054
ref: 12
NUT,LOCK
€ 7.50
13
92055018
ref: 13
RING-O,22MM
€ 2.50
14
12064005
ref: 14
CAP,CAM CHAIN TENSION
€ 9.00
15
920221029
ref: 15
STEEL
WASHER, PLAIN
€ 0.50
16
920221030
ref: 16
NYLON
WASHER, PLAIN
€ 3.00
