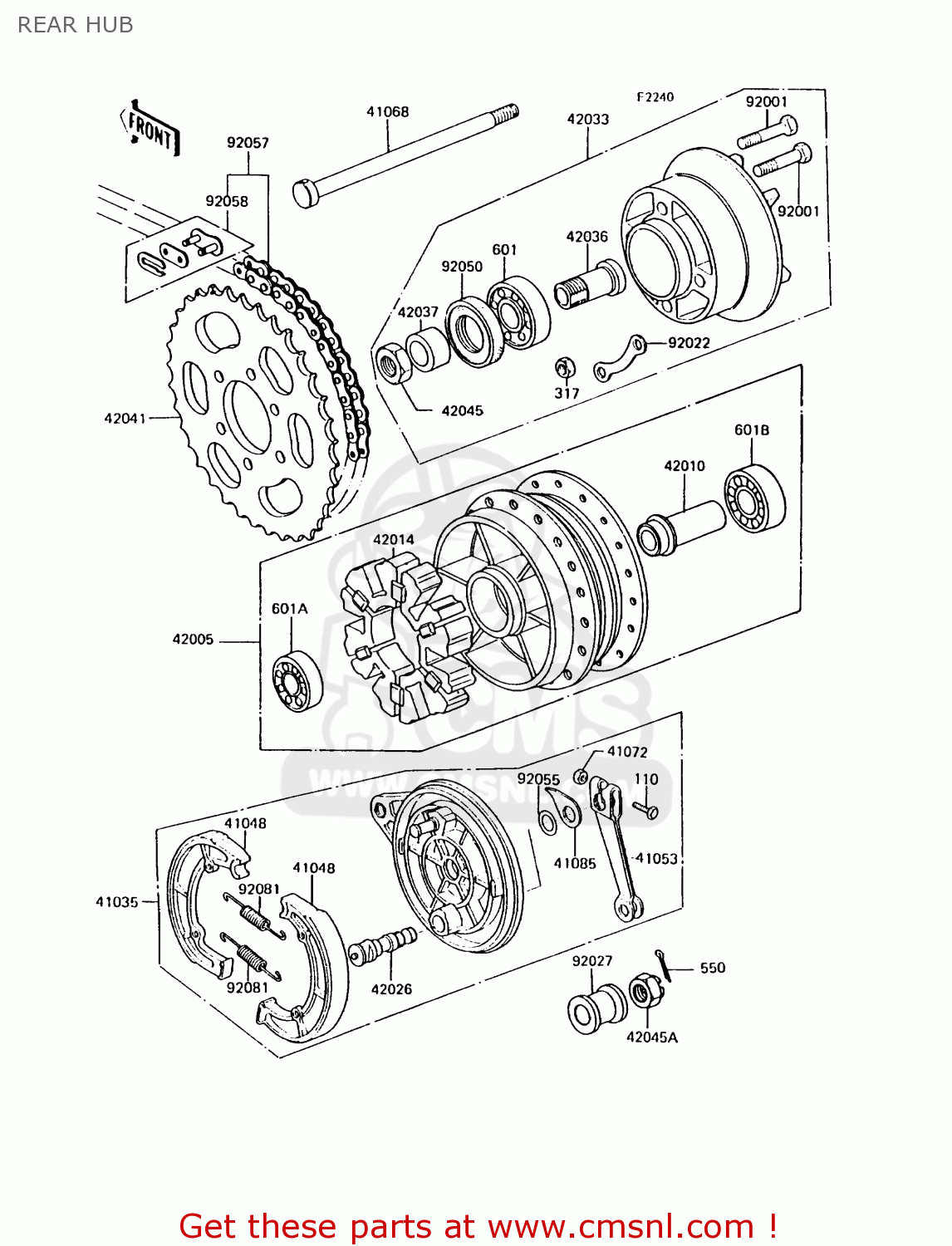

REAR HUB

ref

part #

description

quantity

110

110G0630
ref: 110

BOLT-HEX HEAD,6X30

€ 1.00

317

317B0800
ref: 317

NUT,8M/M

€ 0.50

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

601

601B6004G
ref: 601

BALL,BEARING

€ 10.50

601A

601B6202G
ref: 601A

BRG,BALL,#6202C3

€ 14.50

601B

601B6302ZG
ref: 601B

BALL BEARING

€ 22.50

41035

410351293
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 189.00

41048

410481087
ref: 41048

SHOE-BRAKE (NAS)

€ 15.00

41053

410531024
ref: 41053

LEVER-BRAKE CAM

€ 23.50

41068

410681097
ref: 41068

AXLE,15X219.5

€ 44.50

41072

41072007
ref: 41072

NUT,6MM

€ 2.50

41085

41085013
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42005

42005057
ref: 42005

DRUM-ASSY,RR

€ 454.00

42010

42010037
ref: 42010

COLLAR,L=57

€ 9.00

42014

42014030
ref: 42014

DAMPER,REAR HUB SHOCK

€ 7.50

42026

42026026
ref: 42026

CAM-BRAKE

€ 16.00

42033

420331035
ref: 42033

COUPLING-ASSY

€ 141.00

42036

420361045
ref: 42036

SLEEVE,L=58

€ 32.50

42037

42037025
ref: 42037

COLLAR,L=12.5

€ 15.50

42041

420411110
ref: 42041

SPROCKET-HUB,36T

€ 21.50

42045

42045015
ref: 42045

NUT,20MM

€ 4.50

42045A

42045020
ref: 42045A

NUT,14MM

€ 6.50

92001

92001021
ref: 92001

BOLT-REAR SPROCKET

€ 3.50

92022

920221269
ref: 92022

WASHER,LOCK

€ 6.00

92027

920271343
ref: 92027

COLLAR,L=37.5

€ 9.50

92050

92050060
ref: 92050

OIL SEAL,RR HUB BRNK

€ 12.00

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00

92057

920571338
ref: 92057

CHAIN,DRIVE,EK428SH-R

€ 36.00

92058

920581058
ref: 92058

JOINT-CHAIN

€ 5.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50
