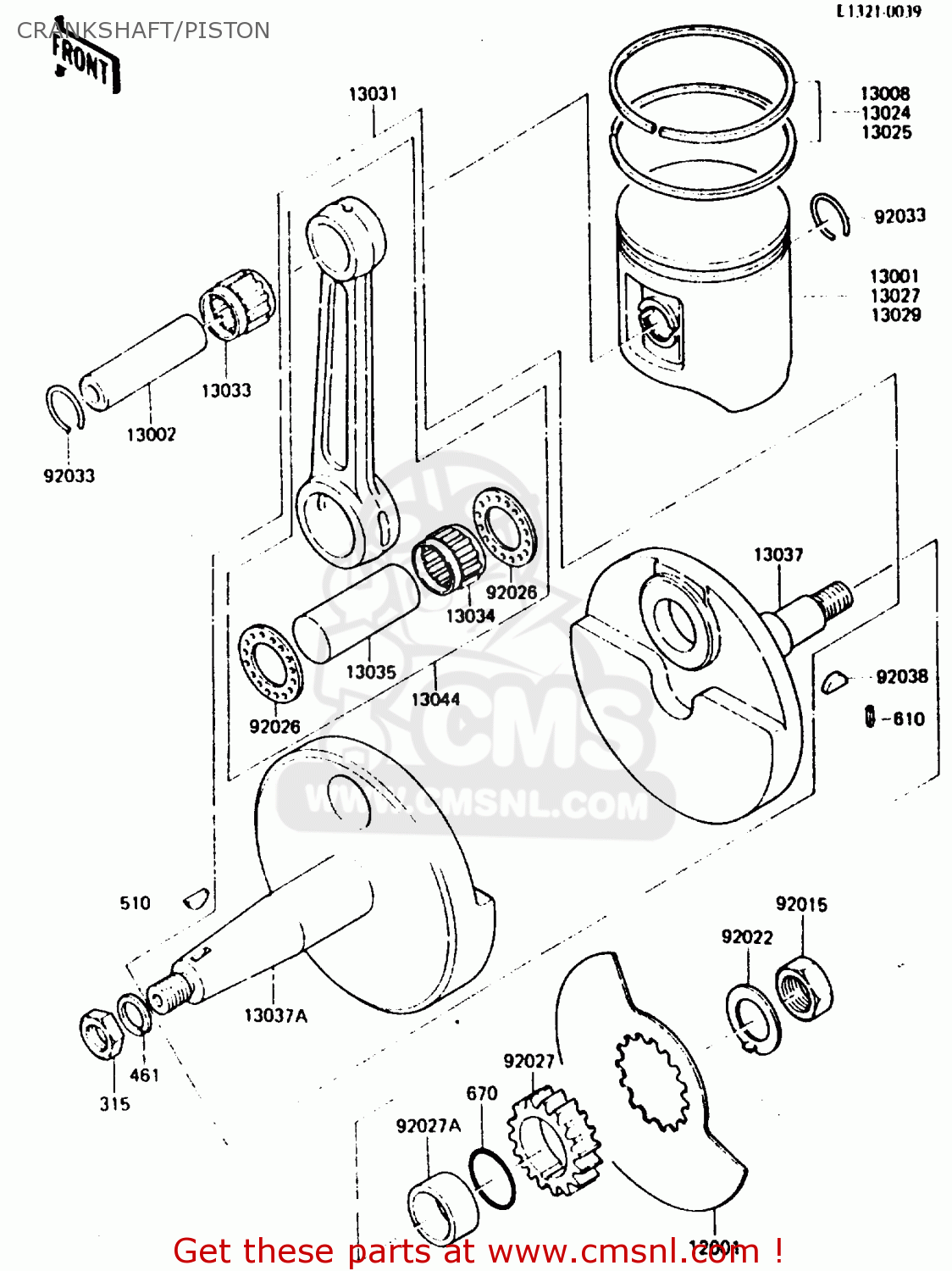

CRANKSHAFT/PISTON

ref

part #

description

quantity

12001

12002030
ref: 12001

VALVE-ROTARY

€ 15.00

13001

130011061
ref: 13001

PISTON-ENGINE,STD

€ 56.00

13002

130021051
ref: 13002

PIN-PISTON

€ 17.00

13008

130085042
ref: 13008

RING-SET-PISTON,STD

€ 52.50

13024

130245020
ref: 13024

RING-SET PISTON LL,O/

€ 62.00

13025

130255020
ref: 13025

RING-SET PISTON L,O/S

€ 57.50

13027

130271034
ref: 13027

PISTON-ENGINE LL,O/S

€ 60.00

13029

130291035
ref: 13029

PISTON-ENGINE L,O/S 0

€ 60.00

13031

130311056
ref: 13031

CRANKSHAFT-COMP

€ 503.00

13033

130331008
ref: 13033

BEARING-NEEDLE,KBK15X

€ 23.50

13034

130341023
ref: 13034

BEARING-NEEDLE,22VS28

€ 21.00

13035

130351004
ref: 13035

CRANK PIN

€ 21.00

13037

130371137
ref: 13037

CRANKSHAFT,RH

€ 195.00

13037A

130371140
ref: 13037A

CRANKSHAFT,LH

€ 183.50

13044

130445021
ref: 13044

SET-CONNECTING ROD

€ 168.50

92015

92015006
ref: 92015

NUT,12MM

€ 3.50

92022

92024003
ref: 92022

WASHER,CLAW,12.5X25X0

€ 2.50

92026

920261063
ref: 92026

SPACER,22X34.5X1.0

€ 4.50

92027

920271245
ref: 92027

COLLAR,ROTARY VALVE

€ 15.50

92033

92036005
ref: 92033

CIRCLIP-PISTON PIN

€ 2.50

92038

92038003
ref: 92038

WOODRUFF KEY-PRY PINI

€ 1.50

315

315G1200
ref: 315

NUT-HEX-FINE

€ 1.00

461

461E1200
ref: 461

WASHER-SPRING,12MM

€ 0.50

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

610

610A0410
ref: 610

ROLLER,4X10

€ 2.50

670

670B2016
ref: 670

O RING,16MM

€ 1.00
