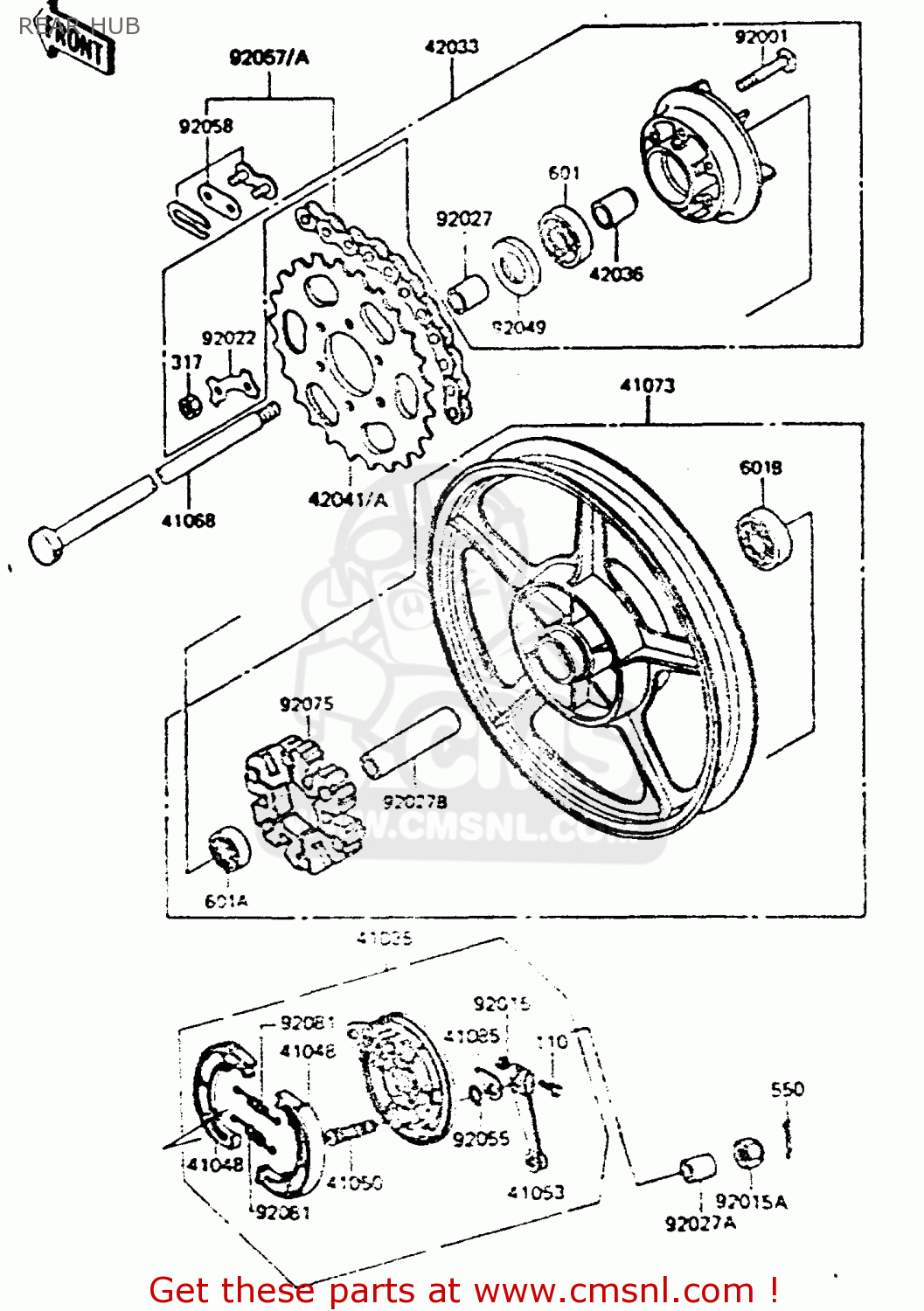

REAR HUB

ref

part #

description

quantity

41035

410351119
ref: 41035

PANEL-ASSY-BRAKE

€ 189.00

41068

410681007
ref: 41068

AXLE,REAR

€ 65.00

41050

42026026
ref: 41050

CAM-BRAKE

€ 16.00

41053

410531024
ref: 41053

LEVER-BRAKE CAM

€ 23.50

41068

410681169
ref: 41068

AXLE,RR,L=208

€ 27.50

41073

41073116821
ref: 41073

WHEEL-ASSY,RR,SOLID

€ 482.00

41085

41085013
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42033

420331105
ref: 42033

COUPLING-ASSY,RR HUB

€ 69.50

42036

420361118
ref: 42036

SLEEVE,RR HUB COUPLIN

€ 13.00

42041

420411175
ref: 42041

SPROCKET-HUB,45T,AL

€ 68.50

92001

92001021
ref: 92001

BOLT-REAR SPROCKET

€ 3.50

92015

41072007
ref: 92015

NUT,6MM

€ 2.50

92015A

42045020
ref: 92015A

NUT,14MM

€ 6.50

92022

920221269
ref: 92022

WASHER,LOCK

€ 6.00

92027

42037029
ref: 92027

COLLAR,REAR HUB COUPR

€ 12.00

92027A

920271483
ref: 92027A

COLLAR

€ 9.50

92027B

920271508
ref: 92027B

COLLAR,RR HUB,L=57

€ 9.00

92049

92050060
ref: 92049

OIL SEAL,RR HUB BRNK

€ 12.00

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00

92057A

920571088
ref: 92057A

CHAIN,DRIVE,EK428GX10

€ 20.50

92058

920581014
ref: 92058

JOINT-CHAIN,EK428-G

€ 3.50

92075

42014030
ref: 92075

DAMPER,REAR HUB SHOCK

€ 7.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

110

110G0630
ref: 110

BOLT-HEX HEAD,6X30

€ 1.00

317

317B0800
ref: 317

NUT,8M/M

€ 0.50

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

601

601B6004
ref: 601

BEARING-BALL,#6004C3

€ 10.50

601A

601B6202Z
ref: 601A

BEARING-BALL,#6202ZC3

€ 13.00

601B

601B6302Z
ref: 601B

BEARING-BALL,#6302ZC3

€ 22.50
