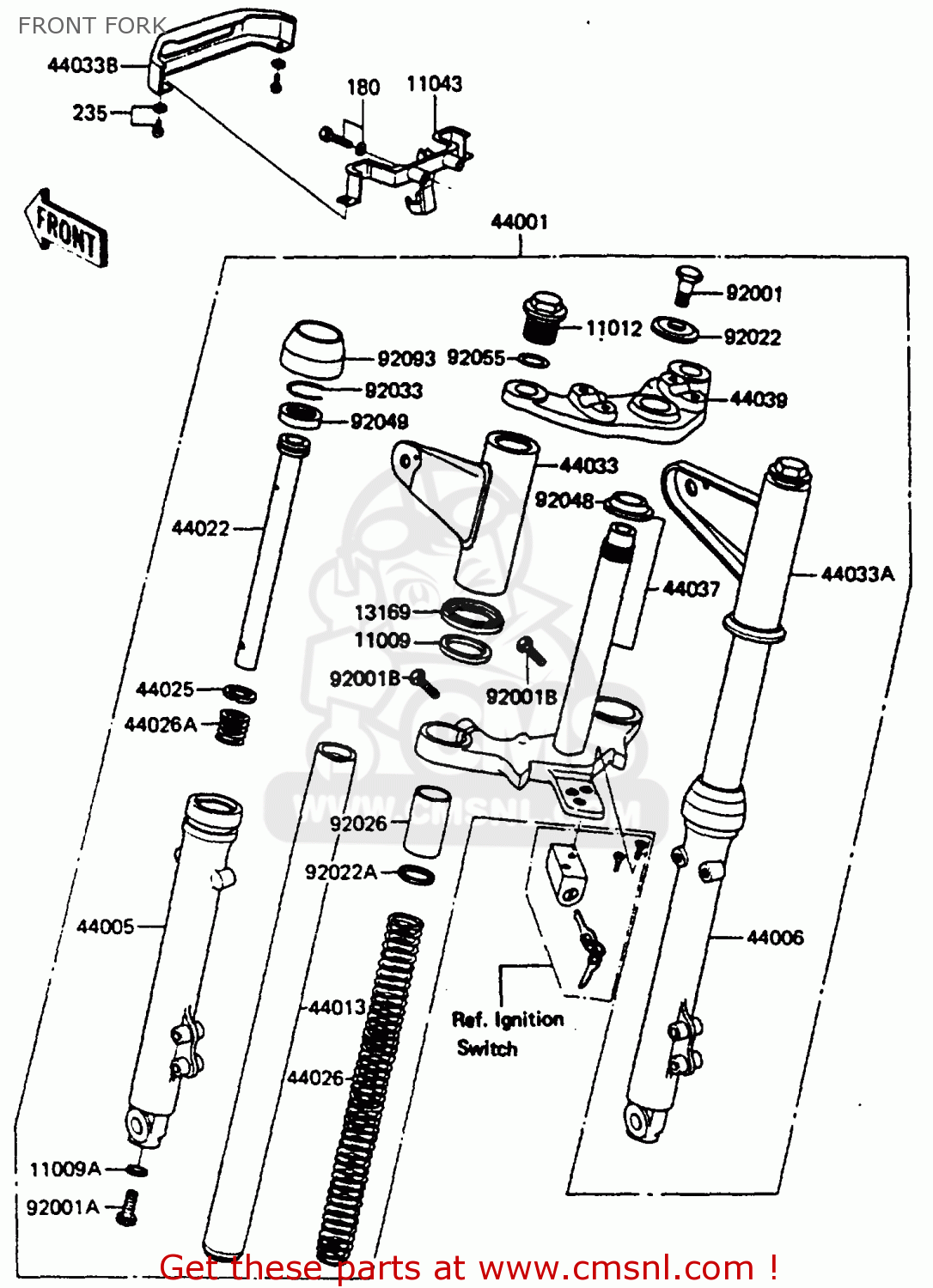

FRONT FORK

ref

part #

description

quantity

11009

44045014
ref: 11009
2

GASKET,FORK COVER

€ 2.50

11009A

44045030
ref: 11009A

GASKET,FORK CYLINDER

€ 2.50

11012

110121012
ref: 11012

CAP,FORK TOP

€ 19.50

11043

110431027
ref: 11043

BRACKET,FORK COVER

€ 15.00

13169

131691027
ref: 13169

PLATE,FORK COVER

€ 4.50

44001

440011455
ref: 44001

FORK-FRONT

€ 765.00

44005

440051138
ref: 44005

PIPE-LEFT FORK OUTER

€ 170.00

44006

440061138
ref: 44006

PIPE-RIGHT FORK OUTER

€ 189.00

44013

440131004
ref: 44013

PIPE-FORK INNER

€ 85.50

44022

440221003
ref: 44022

CYLINDER, FORK

€ 49.00

44025

440251001
ref: 44025

RING-FORK PISTON

€ 4.50

44026

440261004
ref: 44026

SPRING, FORK INNER

€ 19.00

44026A

440261005
ref: 44026A

SPRING-FRONT FORK,PIS

€ 19.00

44033

440331001
ref: 44033

COVER-FORK,LH

€ 42.00

44033A

440331002
ref: 44033A

COVER-FORK,RH

€ 42.00

44033B

440331042
ref: 44033B

COVER-FORK

€ 19.50

44037

440371001
ref: 44037

STEM, STEERING

€ 121.50

44039

440391001
ref: 44039

HEAD,STEERING STEM

€ 94.00

92001

44041007
ref: 92001

BOLT-STRNG STEM HEAD

€ 11.50

92001A

44041027
ref: 92001A

BOLT-FORK CYLINDER

€ 2.50

92001B

920011434
ref: 92001B

BOLT,HEX HEAD,8X36

€ 3.00

92022

44043016
ref: 92022

WASHER,FORK UPPER HOL

€ 7.00

92022A

920221014
ref: 92022A

WASHER,PLAIN

€ 2.50

92026

920261139
ref: 92026

SPACER

€ 4.00

92033

920331003
ref: 92033

RING-SNAP

€ 3.50

92048

92047013
ref: 92048

CONE,STRG STM

€ 12.50

92049

920491006
ref: 92049

OIL SEAL, FORK OUTER

€ 10.00

92055

920551010
ref: 92055

'O' RING, FORK TOP

€ 1.00

92093

920931002
ref: 92093

SEAL,FORK

€ 10.00

180

180B0625
ref: 180

BOLT-UPSET-WS

€ 2.50

235

235B0410
ref: 235

SCREW-PAN-WP-CROS

€ 2.00
