FENDER

KH100G5 1984 USA

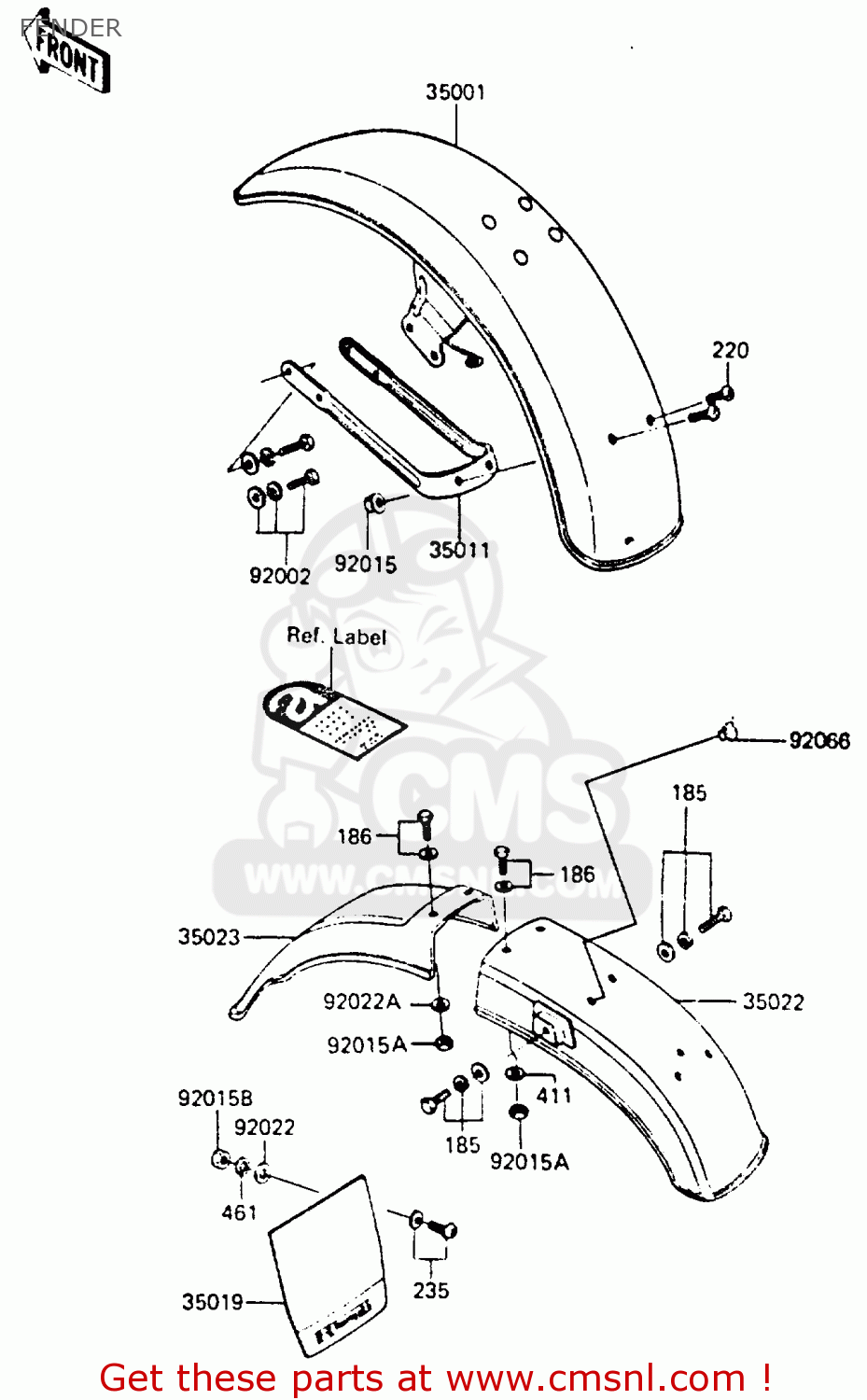

Fender diagram KH100G5 1984 USA

prices are in EUR

ref

part #

description

quantity

35001

350015001
ref: 35001

FENDER-ASSY-FRONT

€ 148.00

35011

35010031
ref: 35011

STAY,FENDER,FR

€ 25.00

35022

350221003
ref: 35022

FENDER-COMP-REAR

€ 131.00

35023

350231001
ref: 35023

FENDER, REAR

€ 42.50

92002

920021200
ref: 92002

BOLT,FLANGED,8X16

€ 3.00

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151393
ref: 92015A

NUT,LOCK,6MM

€ 4.00

92022A

920221565
ref: 92022A

WASHER,6.5X16X2

€ 2.50

185

185C0825
ref: 185

BOLT-UPSET-WSP-SMALL

€ 2.50

186

186D0616
ref: 186

BOLT-UPSET-WP

€ 2.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

411

411E0600
ref: 411

W-PLAIN-S

€ 0.50

FENDER

all assemblies
