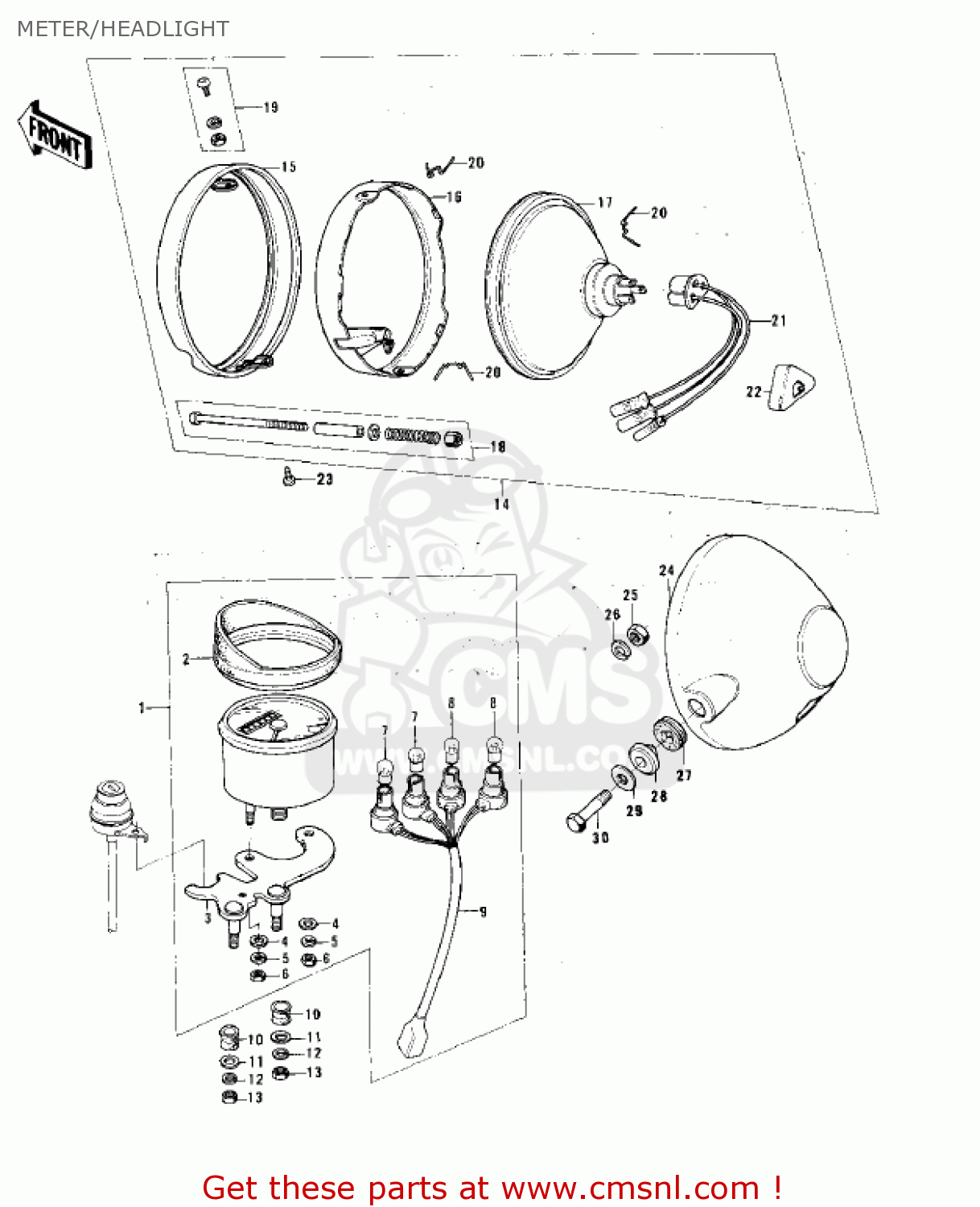

METER/HEADLIGHT

ref

part #

description

quantity

1

25001093
ref: 1

SPEEDOMETER ASSEMBLY,MPH

€ 243.00

1

25001105
ref: 1
CANADIAN MARKET

SPEEDOMETER ASSEMBLY,KPH

€ 0.00

2

25012003
ref: 2

COVER

€ 23.50

3

25008042
ref: 3

SPEEDOMETER BRACKET

€ 41.00

4

410B0500
ref: 4

WASHER-PLAIN-SMALL,5M

€ 0.50

5

461F0500
ref: 5

WASHER-SPRING,5MM

€ 0.50

6

311B0500
ref: 6

NUT-HEX

€ 0.50

7

92069024
ref: 7

BULB 6V 1.5W

€ 3.00

8

92069053
ref: 8

BULB 6V 3W

€ 3.00

9

25011050
ref: 9

SPEEDOMETER SOCKET

€ 67.50

10

92075024
ref: 10

DAMPER

€ 2.50

11

92022125
ref: 11

WASHER,6.5X20X1.6

€ 1.00

12

461F0600
ref: 12

WASHER-SPRING,6MM

€ 0.50

13

311B0600
ref: 13

NUT,6MM

€ 0.50

14

23003024
ref: 14

LAMP UNIT,HEAD

€ 90.50

15

23006042
ref: 15

RIM,HEAD LAMP

€ 43.00

16

23072002
ref: 16

RETAINER,SEALED BEAM

€ 29.50

17

23007055
ref: 17

LENS-COMP,4020 MARK

€ 60.00

18

23016006
ref: 18

LAMP ASSY-PILOT

€ 15.00

19

23013007
ref: 19

SCREW ASY,LENS UNIT

€ 3.50

20

23009015
ref: 20

SPRING,HEAD LAMP LENS

€ 3.50

21

23008044
ref: 21

SOCKET-ASSY,HEAD LAMP

€ 15.00

22

23081001
ref: 22

COVER,HD LAMP SOCKET

€ 6.50

23

23019025
ref: 23

SCREW,PAN HEAD,5X14

€ 1.50

24

2300504921
ref: 24
FLAT BLACK

BODY,HEAD LAMP,BLACK

€ 56.00

25

314B1000
ref: 25

NUT,10MM

€ 0.50

26

461F1000
ref: 26

WASHER-SPRING,10MM

€ 0.50

27

23066011
ref: 27

DAMPER

€ 3.50

28

23052005
ref: 28

COLLAR,L=9.6

€ 8.50

29

411D1000
ref: 29

WASHER-PLAIN,10MM

€ 3.00

30

92007041
ref: 30

BOLT,HEX HEAD,10X30

€ 7.00

all assemblies
