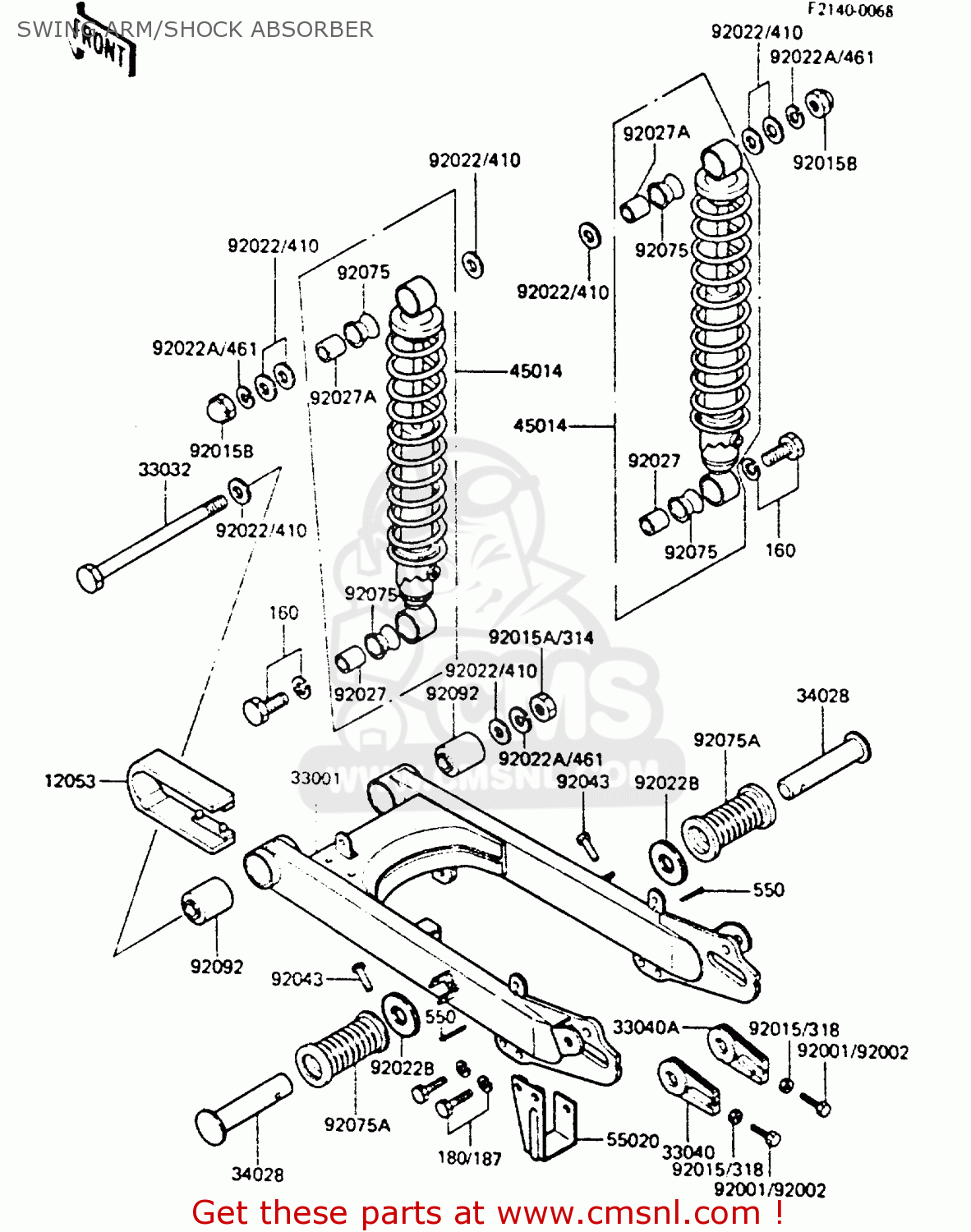

SWING ARM/SHOCK ABSORBER

ref

part #

description

quantity

12053

120531066
ref: 12053

GUIDE-CHAIN,NYLON

€ 16.50

33001

330011118
ref: 33001

ARM-COMP-SWING,SILVER

€ 214.00

33032

33032034
ref: 33032

SHAFT-SWING ARM

€ 22.50

33040

33040045
ref: 33040

ADJUSTER-CHAIN,LH

€ 9.50

33040A

33040046
ref: 33040A

ADJUSTER-CHAIN,RH

€ 10.50

34028

34028009
ref: 34028

BAR-REAR FOOTREST

€ 24.00

45014

450141144
ref: 45014

SHOCKABSORBER

€ 187.00

55020

55020012
ref: 55020

GUARD,CHAIN

€ 7.00

92002

920021076
ref: 92002

BOLT,8X50

€ 6.00

92015

920151364
ref: 92015

NUT,8MM

€ 2.50

92015A

920151381
ref: 92015A

NUT,12MM

€ 1.00

92015B

92020014
ref: 92015B

NUT,CAP,12MM

€ 6.50

92022

920221538
ref: 92022

WASHER,12MM

€ 0.50

92022A

920221541
ref: 92022A

WASHER,SPRING,12MM

€ 0.50

92022B

920221568
ref: 92022B

WASHER,20X30X2.3

€ 2.50

92027

45016003
ref: 92027

COLLAR,SHOCKABSORBER

€ 12.50

92027A

920271063
ref: 92027A

BUSHING,SHOCKABSORBER

€ 2.00

92043

92043079
ref: 92043

PIN-REAR FOOTREST FIT

€ 5.50

92075

920751020
ref: 92075

DAMPER,SHOCKABSORBER

€ 3.00

92073A

92076020
ref: 92073A

DAMPER

€ 7.50

92092

92092005
ref: 92092

BUSH-SWING ARM SHAFT

€ 9.50

160

160N1035
ref: 160

BOLT-FINE-WS

€ 3.50

187

187X0616
ref: 187

BOLT-UPSET-WSP

€ 3.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00
