FRAME FITTING

KE100B2 1983 EUROPE UK

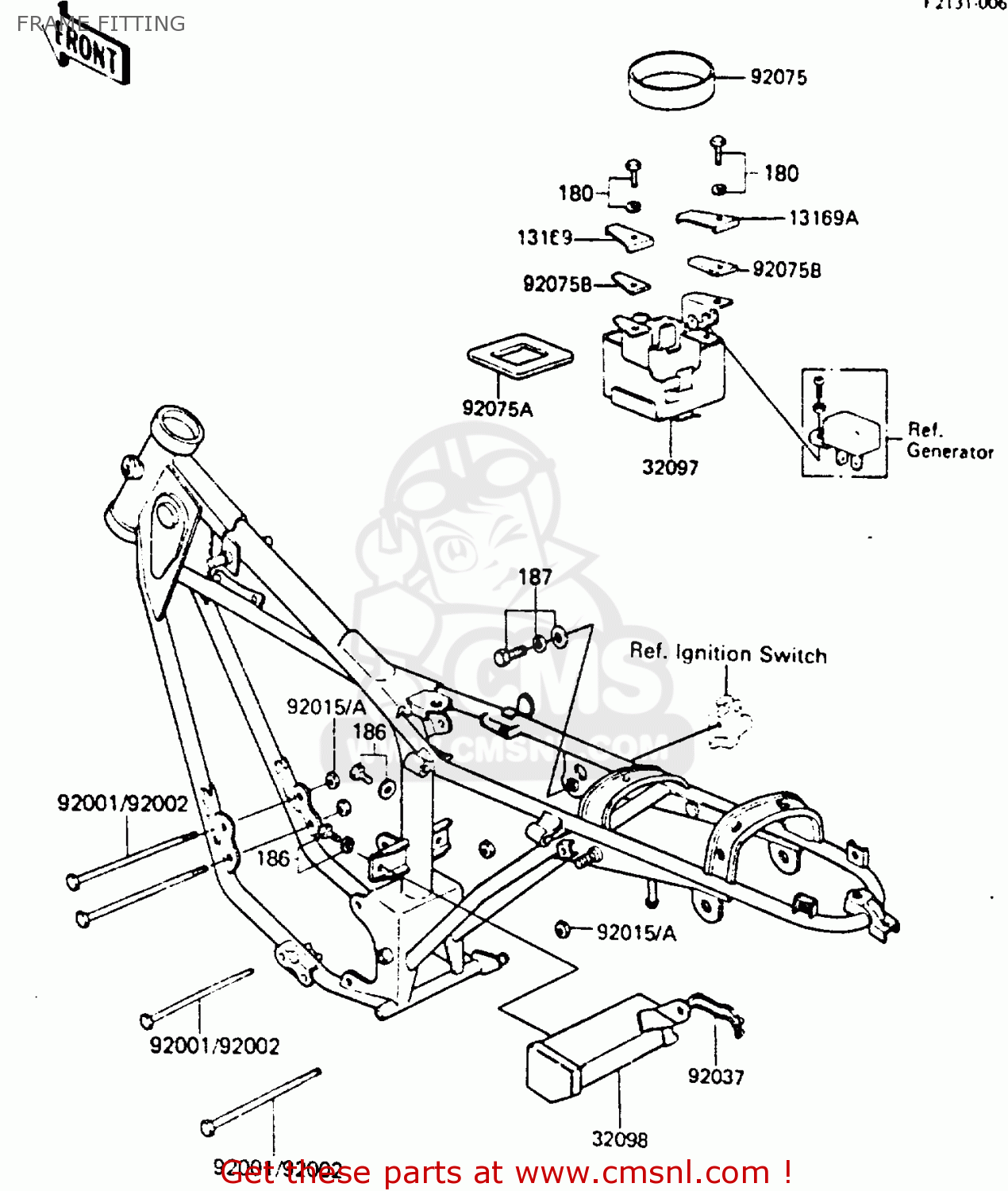

Frame fitting diagram KE100B2 1983 EUROPE UK

prices are in EUR

ref

part #

description

quantity

13169

32101003
ref: 13169

PLATE

€ 3.00

13169A

32101004
ref: 13169A

PLATE

€ 3.00

32097

320971052
ref: 32097

CASE-BATTERY

€ 39.00

32098

32098018
ref: 32098

CASE-TOOL

€ 51.00

92001

920011245
ref: 92001

BOLT,HEX HEAD, 10X115

€ 7.00

92015

920151172
ref: 92015

NUT,FLANGED,10MM

€ 3.00

92037

92079002
ref: 92037

CLAMP,TOOL CASE

€ 8.00

92075

32103018
ref: 92075

MAT-BATTERY

€ 2.00

92075A

32103024
ref: 92075A

DAMPER,BATTERY

€ 4.50

92075B

92075108
ref: 92075B

DAMPER

€ 3.00

180

180B0618
ref: 180

BOLT-UPSET-WS

€ 0.50

186

186B0614
ref: 186

BOLT-UPSET-WP

€ 0.50

187

187G0612
ref: 187

BOLT-UPSET-WSP

€ 2.00
