BRAKE PEDAL
KE100-B8 1989 USA

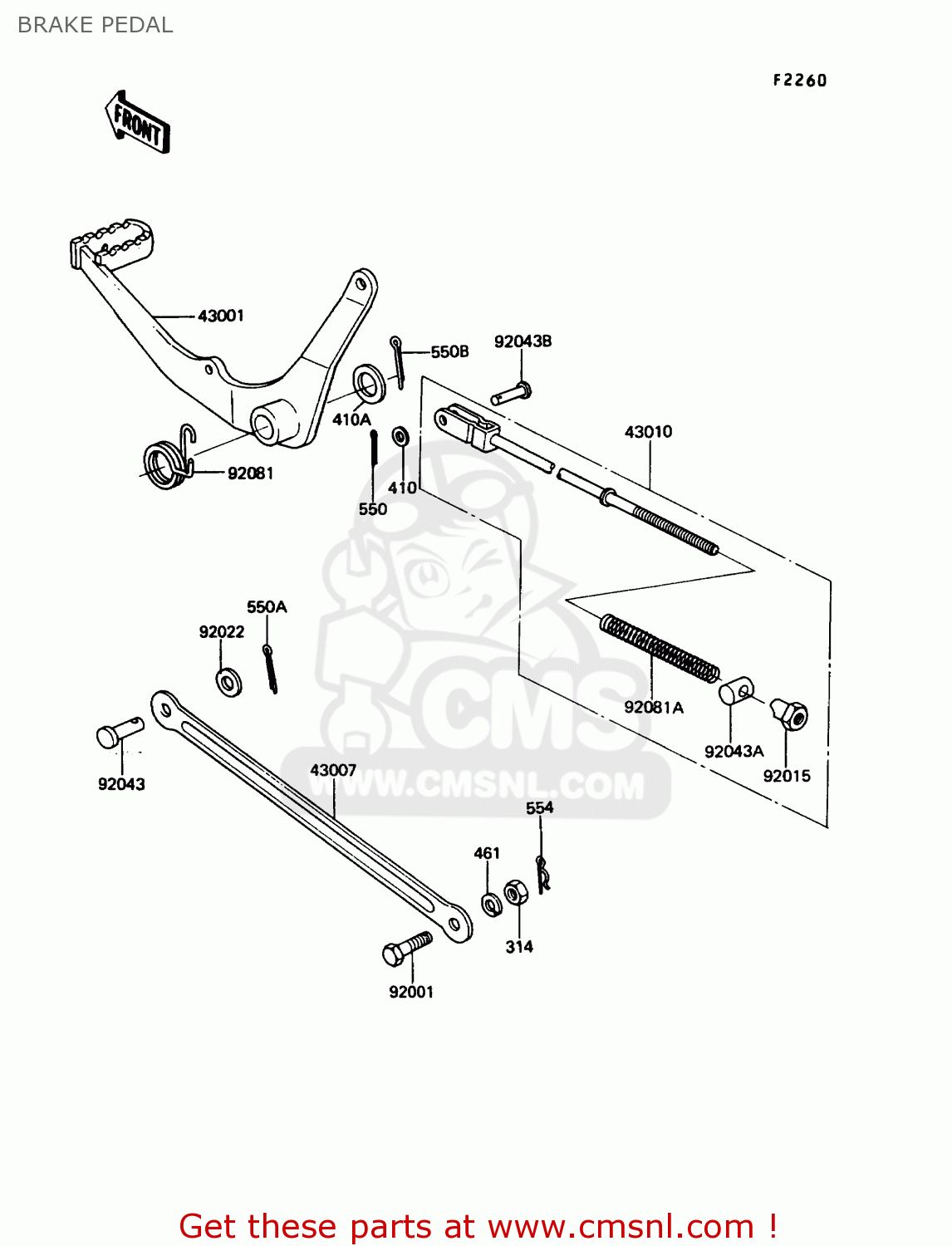

Brake pedal diagram KE100-B8 1989 USA
BRAKE PEDAL KE100-B8 1989 USA
×
prices are in EUR
ref
part #
description
quantity
314
314C1000
ref: 314
NUT-HEX-FINE,10MM,BLA
€ 2.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
410A
410F1400
ref: 410A
WASHER-PLAIN-SMALL,14
€ 3.00
461
461K1000
ref: 461
461K1000
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
550A
550D2515
ref: 550A
PIN COTTER,295X15
€ 0.50
550B
550D3030
ref: 550B
PIN-COTTER,3.0X30
€ 1.50
554
554A0800
ref: 554
PIN-SNAP,8MM
€ 1.00
43001
43001056
ref: 43001
LEVER-BRAKE,PEDAL
€ 19.00
43007
43007028
ref: 43007
ROD-TORQUE,RR
€ 11.50
43010
430105001
ref: 43010
ROD-ASSY-BRAKE
€ 23.00
92001
920011671
ref: 92001
BOLT,10X32
€ 4.00
92015
92015042
ref: 92015
NUT-BRAKE ROD ADJUST
€ 4.00
92022
920221539
ref: 92022
WASHER,10.5X18X1.6
€ 0.50
92043
43009001
ref: 92043
PIN-REAR TORQUE LINK
€ 4.50
92043A
92043039
ref: 92043A
PIN,BRAKE ROD
€ 4.50
92043B
92043064
ref: 92043B
PIN-BRAKE ROD FITTING
€ 4.50
92081
43005007
ref: 92081
SPRING-BRAKE PEDAL
€ 4.50
92081A
43012001
ref: 92081A
SPRING,BRAKE ROD
€ 3.00
