CARBURETOR
KE100-B7 1988 UNITED KINGDOM

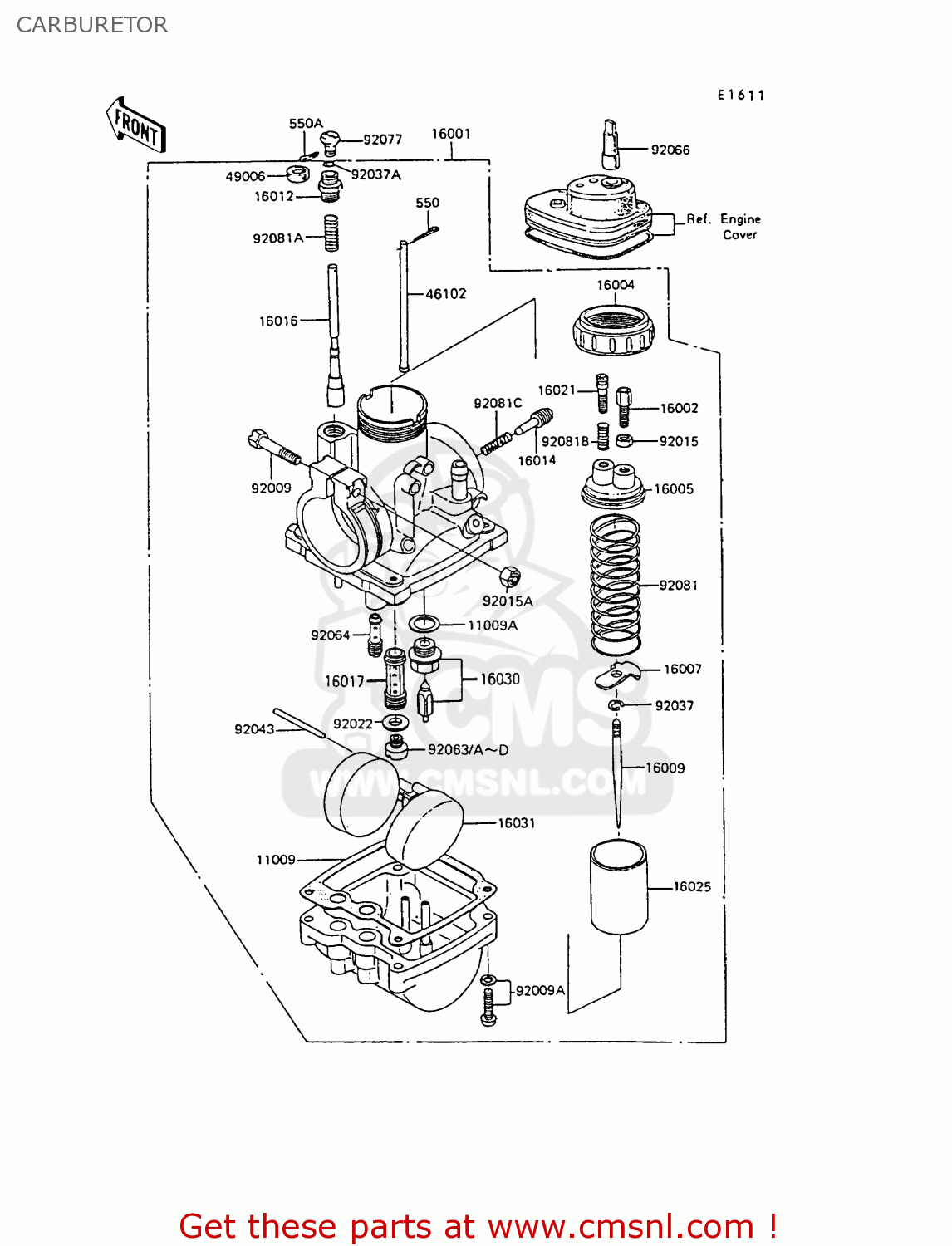

Carburetor diagram KE100-B7 1988 UNITED KINGDOM
CARBURETOR KE100-B7 1988 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
11009
16019021
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 13.00
11009A
16029002
ref: 11009A
WASHER-VALVE SEAT
€ 2.50
16001
160011509
ref: 16001
CARBURETOR
€ 245.50
16002
16002017
ref: 16002
ADJUSTER-CABLE
€ 8.00
16004
16004010
ref: 16004
CAP-CHAMBER,MIXING
€ 13.50
16005
16005005
ref: 16005
TOP-CHAMBER,MIXING
€ 12.50
16007
16007020
ref: 16007
SEAT-SPRING,THROTTLE
€ 7.00
16009
160091094
ref: 16009
NEEDLE-JET,4M5-3
€ 26.50
16012
16012021
ref: 16012
CAP-STARTER PLUNGER
€ 11.50
16014
16014002
ref: 16014
SCREW-PILOT AIR
€ 11.00
16016
16016012
ref: 16016
PLUNGER,STARTER
€ 28.00
16017
160171093
ref: 16017
JET-NEEDLE,P-0
€ 30.00
16021
16021002
ref: 16021
SCREW-THROTTLE STOP
€ 12.00
16025
16025057
ref: 16025
VALVE-THROTTLE,CA2.0
€ 80.50
16030
16030001
ref: 16030
VALVE-FLOAT,#2.0
€ 40.50
16031
16031015
ref: 16031
FLOAT
€ 40.50
46102
16024006
ref: 46102
ROD-THROTTLE VLV STOP
€ 5.50
49006
16036012
ref: 49006
BOOT,STARTER PLUNGER
€ 4.50
92009
16010004
ref: 92009
SCREW-CLAMP
€ 3.50
92009A
16033012
ref: 92009A
SCREW-FLOAT CHAMBER
€ 1.00
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92015A
16011002
ref: 92015A
NUT 6MM
€ 0.50
92022
16034001
ref: 92022
WASHER-MAIN JET
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
920371077
ref: 92037A
CLAMP
€ 3.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92063
92063093
ref: 92063
MAIN JET,#85R
€ 10.50
92063A
92063094
ref: 92063A
JET-MAIN,#87.5R
€ 11.00
92063B
92063095
ref: 92063B
MAIN JET,#90R
€ 10.50
92063C
92063099
ref: 92063C
JET,MAIN,#95A
€ 22.00
92063D
920631085
ref: 92063D
JET,MAIN,#A92.5R
€ 8.00
92064
92064020
ref: 92064
JET-PILOT,#17.5
€ 13.50
92066
16147001
ref: 92066
PLUG,12X40
€ 3.00
92077
92077022
ref: 92077
KNOB,CARBURETOR
€ 7.00
92081
16006013
ref: 92081
SPRING-THROTTLE VALVE
€ 10.00
92081A
16013010
ref: 92081A
SPRING,STARTER PLUNGR
€ 3.50
550
550D1210
ref: 550
PIN-COTTER,1.2X10
€ 1.50
550A
550D1615
ref: 550A
PIN-COTTER,1.6X15
€ 1.50
92081B
16022005
ref: 92081B
SPRING-THR STOP SCREW
€ 5.50
92081C
16022007
ref: 92081C
SPRING-THR STOP SCREW
€ 5.50
