FRONT HUB
KE100-B13 1994 USA CANADA

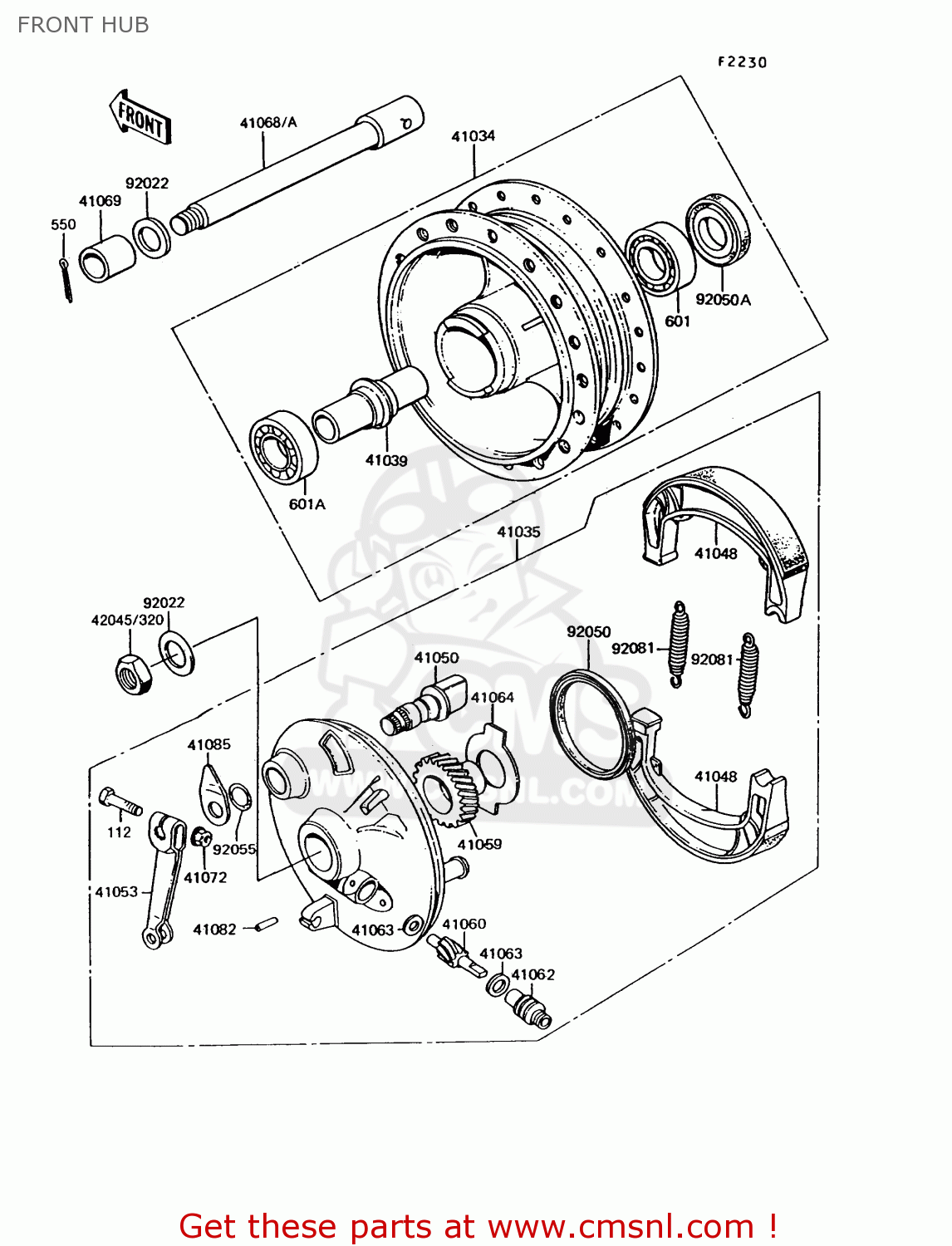

Front hub diagram KE100-B13 1994 USA CANADA
FRONT HUB KE100-B13 1994 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
112
112G0630
ref: 112
BOLT-UPSET
€ 1.00
601
601B6200G
ref: 601
BALL BEARING,#6200,601B6200
€ 11.50
601A
601B6300ZG
ref: 601A
BALL BEARING,#6300Z,601B6300Z
€ 18.50
41034
410341047
ref: 41034
DRUM-ASSY,FR
€ 169.00
41035
410351291
ref: 41035
PANEL-ASSY-BRAKE,FR
€ 255.00
41039
41039002
ref: 41039
COLLAR,L=51
€ 6.00
41048
410481085
ref: 41048
SHOE-BRAKE (NAS)
€ 13.00
41050
41050018
ref: 41050
CAM-BRAKE
€ 18.00
41053
41053005
ref: 41053
LEVER-BRAKE CAM
€ 11.50
41059
41059022
ref: 41059
GEAR,SPEEDOMETER
€ 26.00
41060
41060004
ref: 41060
PINION,SPEEDOMETER
€ 20.50
41062
41062005
ref: 41062
BUSHING,SPEEDOMETER C
€ 12.00
41063
41063001
ref: 41063
WASHER-THRST SPD PINI
€ 3.00
41064
41064010
ref: 41064
RECEIVER-SPEEDOMETER
€ 6.50
41068
41068039
ref: 41068
AXLE-FRONT
€ 20.00
41069
41069026
ref: 41069
COLLAR,L=13
€ 9.00
41072
41072007
ref: 41072
NUT,6MM
€ 2.50
41082
41082001
ref: 41082
PIN-SPRING
€ 2.50
41085
41085008
ref: 41085
INDICATOR,BRAKE SHOE
€ 8.50
42045
42045005
ref: 42045
NUT,10MM
€ 5.00
92022
920221558
ref: 92022
WASHER,10.5X22X1.6
€ 2.00
92050
92050002
ref: 92050
OIL SEAL-BRAKE PANEL
€ 9.00
92050A
92050063
ref: 92050A
OIL SEAL,TC17317
€ 10.00
92055
92055004
ref: 92055
RING-O,BRAKE CAM
€ 3.00
92081
920811766
ref: 92081
SPRING,BRAKE SHOE
€ 5.50
