SWINGARM/SHOCK ABSORBER
KE100-B12 1993 USA CANADA

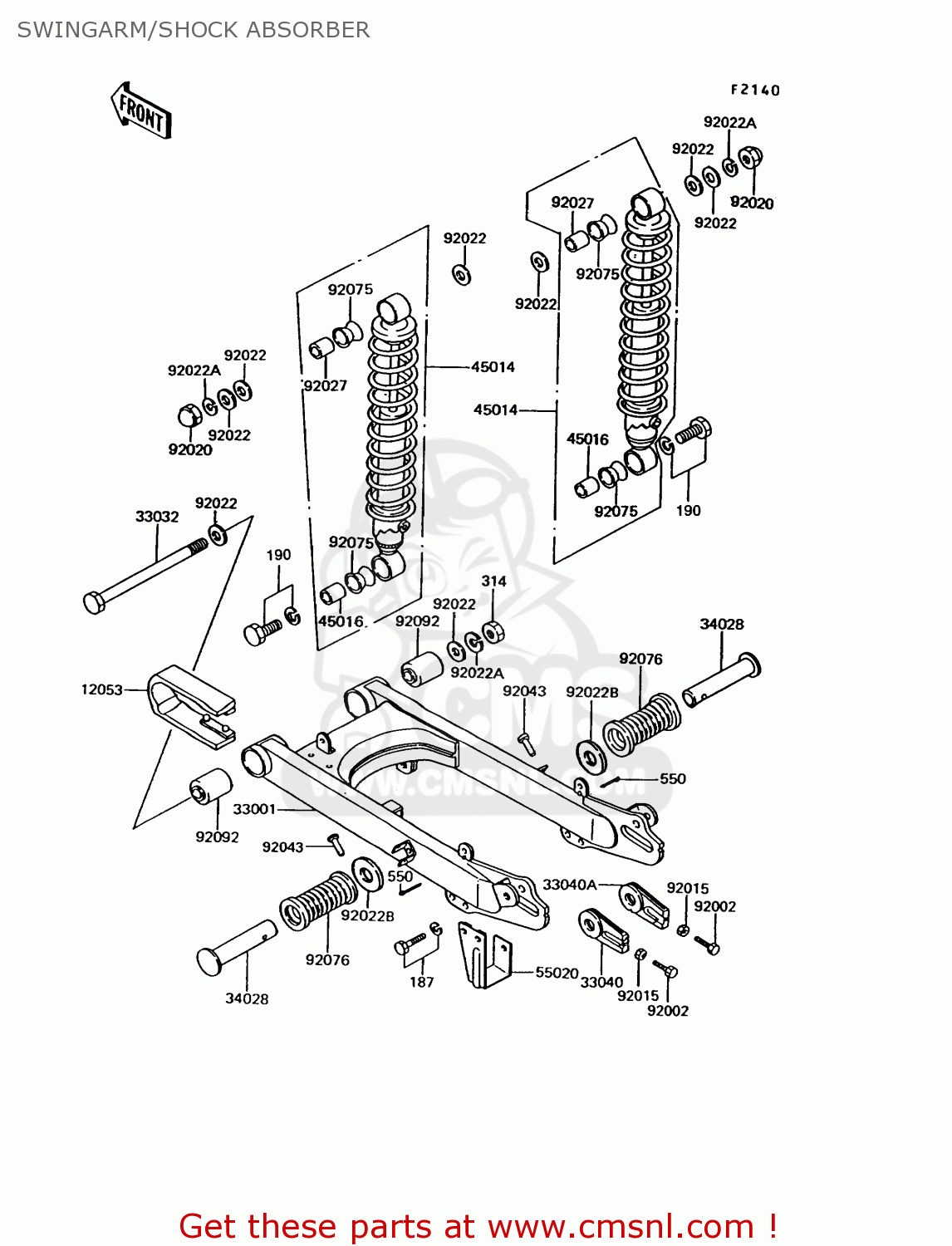

Swingarm/shock absorber diagram KE100-B12 1993 USA CANADA
SWINGARM/SHOCK ABSORBER KE100-B12 1993 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
187
187X0616
ref: 187
BOLT-UPSET-WSP
€ 3.00
190
190N1035
ref: 190
BOLT-UPSET-WS
€ 3.50
314
314B1200
ref: 314
NUT-HEX-FINE
€ 1.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
12053
120531066
ref: 12053
GUIDE-CHAIN,NYLON
€ 16.50
33001
330011118
ref: 33001
ARM-COMP-SWING,SILVER
€ 214.00
33032
33032034
ref: 33032
SHAFT-SWING ARM
€ 22.50
33040
33040045
ref: 33040
ADJUSTER-CHAIN,LH
€ 9.50
33040A
33040046
ref: 33040A
ADJUSTER-CHAIN,RH
€ 10.50
34028
34028009
ref: 34028
BAR-REAR FOOTREST
€ 24.00
45014
450141144
ref: 45014
SHOCKABSORBER
€ 187.00
45016
45016003
ref: 45016
COLLAR,SHOCKABSORBER
€ 12.50
55020
55020012
ref: 55020
GUARD,CHAIN
€ 7.00
92002
920021076
ref: 92002
BOLT,8X50
€ 6.00
92015
920151364
ref: 92015
NUT,8MM
€ 2.50
92020
92020014
ref: 92020
NUT,CAP,12MM
€ 6.50
92022
920221538
ref: 92022
WASHER,12MM
€ 0.50
92022A
920221541
ref: 92022A
WASHER,SPRING,12MM
€ 0.50
92022B
920221568
ref: 92022B
WASHER,20X30X2.3
€ 2.50
92027
920271063
ref: 92027
BUSHING,SHOCKABSORBER
€ 2.00
92043
920431464
ref: 92043
PIN
€ 5.50
92075
920751020
ref: 92075
DAMPER,SHOCKABSORBER
€ 3.00
92076
92076020
ref: 92076
DAMPER
€ 7.50
92092
92092005
ref: 92092
BUSH-SWING ARM SHAFT
€ 9.50
